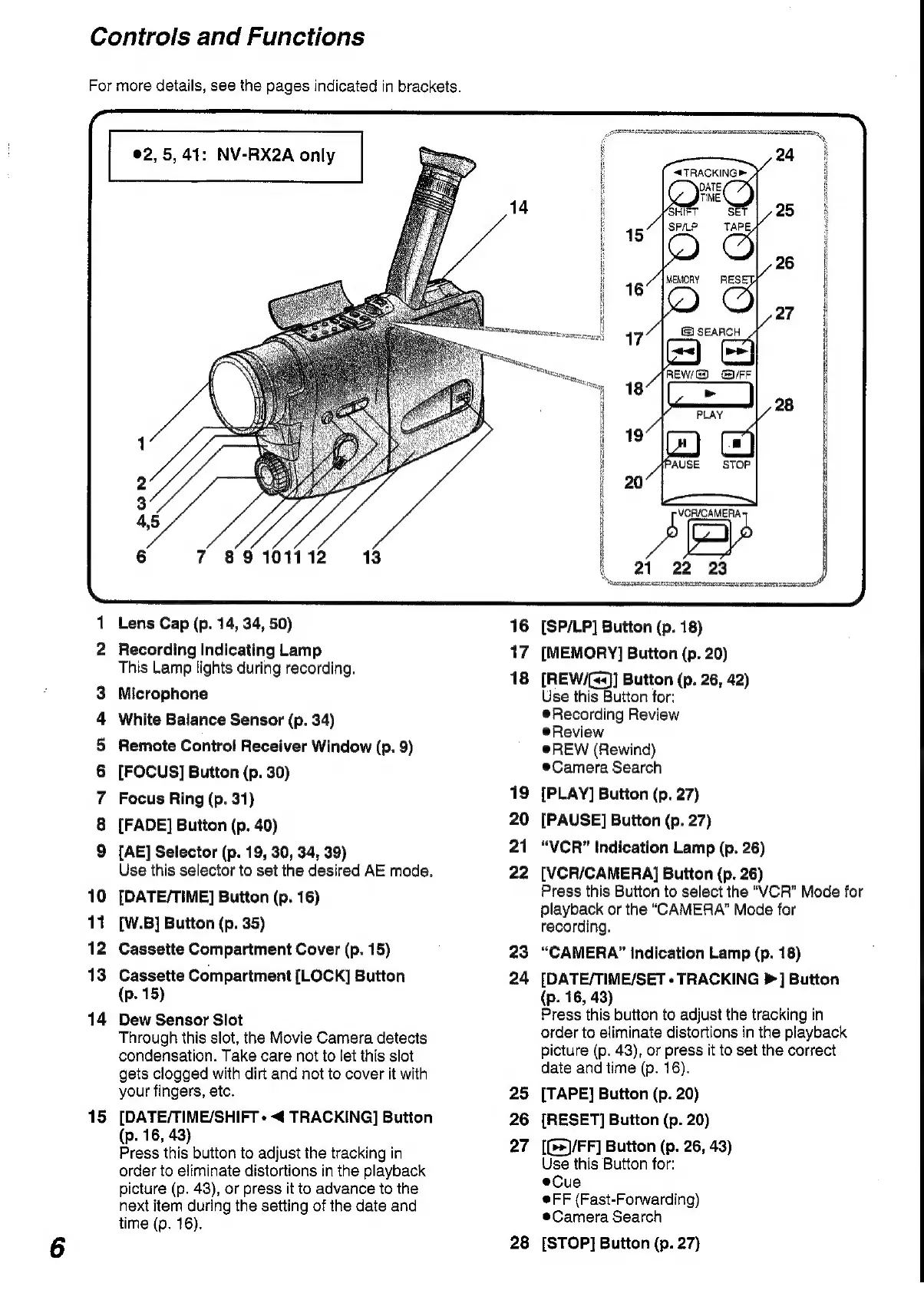

Controls and Functions
For more details, see the pages indicated in brackets.
©2,5, 41: NV-RX2A only
nN
GOaAnN OA Fw
10
11
12
13
14
15
13
Lens Cap (p. 14, 34, 50)
Recording Indicating Lamp
This Lamp lights during recording.
Microphone
White Balance Sensor (p. 34)
Remote Control Receiver Window (p. 9)
[FOCUS] Button (p. 30)
Focus Ring (p. 31}
(FADE] Button (p. 40)
[AE] Selector (p. 19, 30, 34, 39)
Use this selector to set the desired AE mode.
[DATE/TIME] Button (p. 16)
[W.B] Button (p. 35)
Cassette Compartment Cover (p. 15)
Cassette Compartment [LOCK] Button
(p. 15)
Dew Sensor Slot
Through this slot, the Movie Camera detects
condensation. Take care not to let this slot
gets clogged with dirt and not to cover it with
your fingers, etc.
[DATE/TIME/SHIFT « < TRACKING] Button
(p. 16, 43)
Press this button to adjust the tracking in
order to eliminate distortions in the playback
picture (p. 43), or press it to advance to the
next item during the setting of the date and
time (p. 16).
16
17
18
19
20
21
22
23
24
25
26
27
28
RES!
@ SEARCH
REW/ GS) &/FF
VCR/CAMERA:
21 22 23
""eeeapiaiemnacanaesmens mene eee apart asa
[SP/LP] Button (p. 18)
[MEMORY] Button (p. 20)
[REW/(<<]] Button (p. 26, 42)
Use this Button for:
@Recording Review
Review
@REW (Rewind)
Camera Search
[PLAY] Button (p. 27)
[PAUSE] Button (p. 27)
“VCR” Indication Lamp (p. 26)
[VCR/CAMERA] Button (p. 26)
Press this Button to select the “VCR” Mode for
playback or the “CAMERA” Mode for
recording.
“CAMERA” Indication Lamp (p. 18)
[DATE/TIME/SET - TRACKING >] Button
(p. 16, 43)
Press this button to adjust the tracking in
order to eliminate distortions in the playback
picture (p. 43), or press it to set the correct
date and time (p. 16).
[TAPE] Button (p. 20)
[RESET] Button (p. 20)
[G+)/FF] Button (p. 26, 43)
Use this Button for:
eCue
@FF (Fast-Forwarding)
®Camera Search
[STOP] Button (p. 27)
