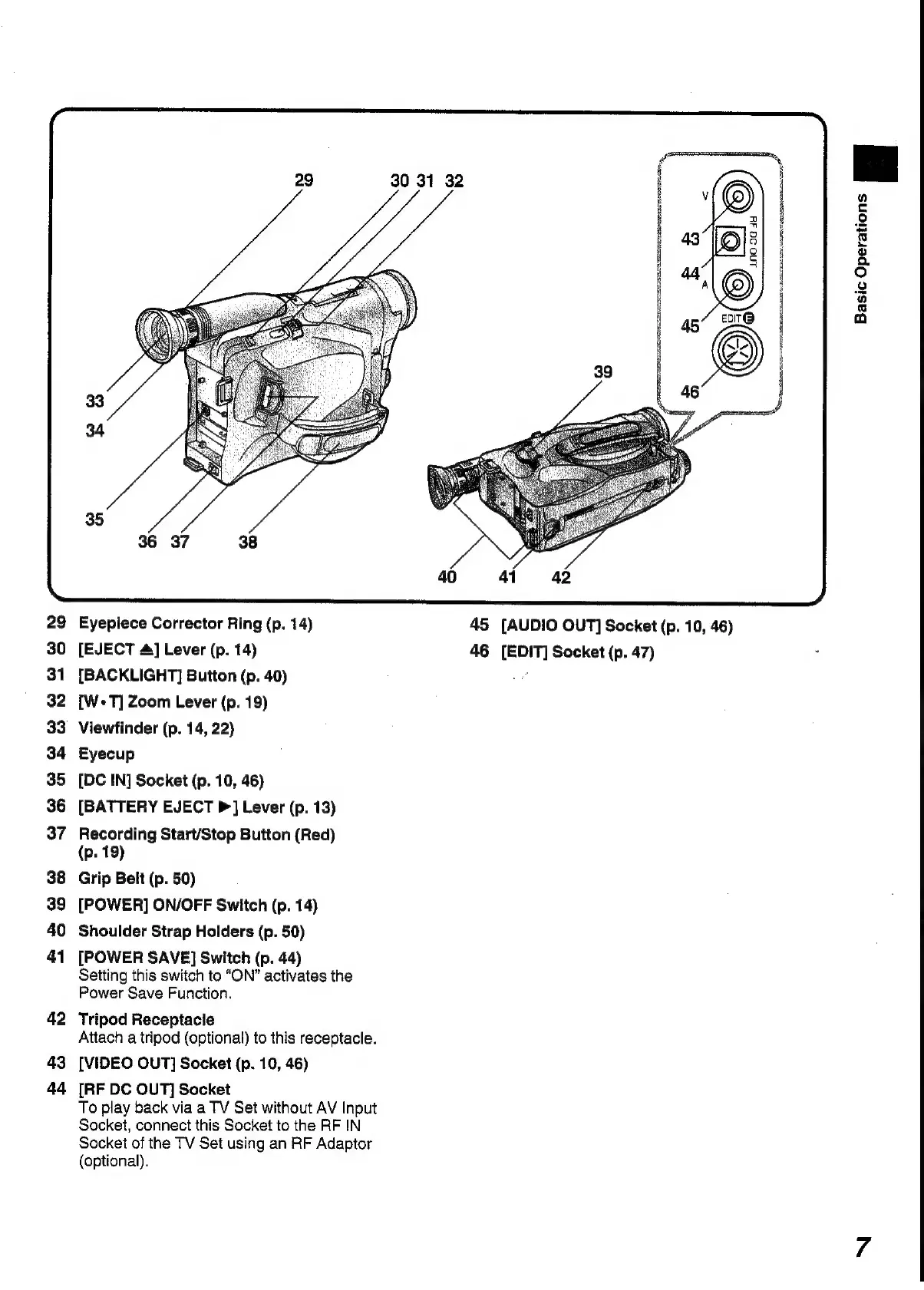

Eyepiece Corrector Ring (p. 14)
[EJECT 4] Lever (p. 14)
[BACKLIGHT] Button (p. 40)
[W- T] Zoom Lever (p. 19)
Viewfinder (p. 14, 22)
Eyecup
[DC IN] Socket (p. 10, 46)
[BATTERY EJECT P] Lever (p. 13)
Recording Start/Stop Button (Red)
(p. 19)
Grip Belt (p. 50)
[POWER] ON/OFF Switch (p. 14)
Shoulder Strap Holders (p. 50)
[POWER SAVE] Switch (p. 44)
Setting this switch to “ON” activates the
Power Save Function.
Tripod Receptacle
Attach a tripod (optional) to this receptacle.
[VIDEO OUT] Socket (p. 10, 46)
[RF DC OUT] Socket
To play back via a TV Set without AV Input
Socket, connect this Socket to the RF IN
Socket of the TV Set using an RF Adaptor
(optional).
