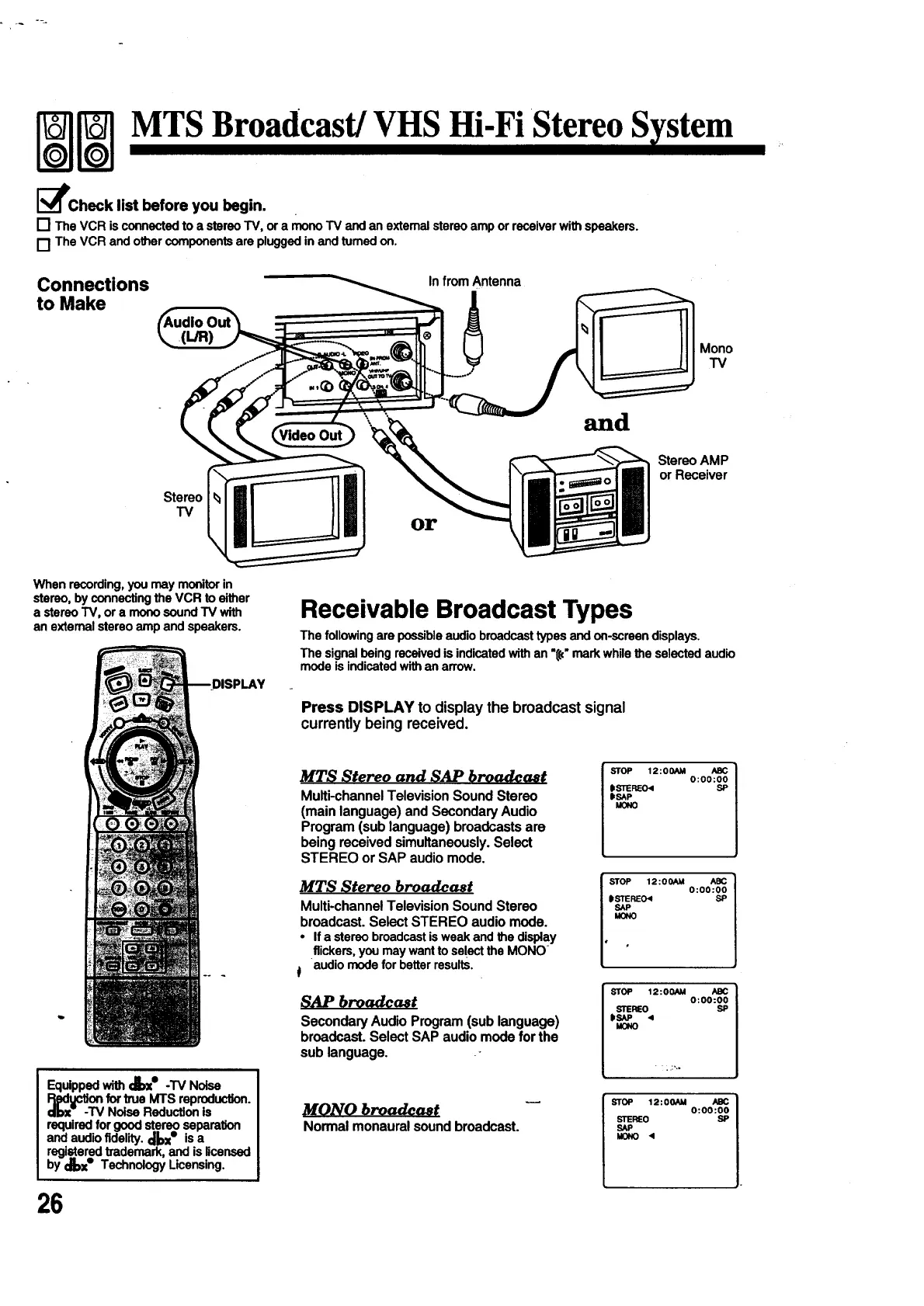

MTS Broadcast/VHS Hi-Fi Stereo S rstem
_Check list before you begin.
[] The VCR is connected to a stereo TV, or a mono TV and an external stereo amp or receiver with speakers.
[] The VCR and other components are plugged in and turned on.
Connections In from Antenna
to Make
Mono
TV
Stereo
TV
When recording, you may monitor in
stereo, by connecting the VCR to either
a stereo TV, or a mono sound TV with
an external stereo amp and speakers.
Equipped with ¢11_" -'IV Noise
d_'tion for tree MrS reproduction.
bX -'IV Noise Reduction is
required for good stereo seperatJon
and audio fidelity, dbx e is a
registered trademark, and is licensed
by _e Technology Licensing.
Stereo AMP
or Receiver
Receivable Broadcast Types
The following are possible audio broadcast types and on-screen displays.
The signal being received is indicated with an "($"mark while the selected audio
mode is indicated with an arrow.
Press DISPLAY to display the broadcast signal
currently being received.
MTS Stereo and SAP broadcast
Multi-channel Television Sound Stereo
(main language) and Secondary Audio
Program (sub language) broadcasts are
being received simultaneously. Select
STEREO or SAP audio mode.
MTS Stereo broadcast
Multi-channel Television Sound Stereo
broadcast. Select STEREO audio mode.
• If a stereo broadcast is weak and the display
flickers, you may want to select the MONO
f audio mode for better results.
SAP broadcast
SecondaryAudioProgram(sublanguage)
broadcast.SelectSAPaudiomodeforthe
sublanguage.
STOP 12:00AM ABC
0:00:00
I=STER£04 SP
I'SAP
MONO
STOP 2:00AM ABC
0:00:00
STOP 12:00AM ABC
0:00:00
STEREO SP
IISAP ,4
I¢_NO
MONO broadeas¢
Normalmonauralsoundbroadcast.
STOP 12:00AM
STEREO
SAP
MONO <
ABC
0:O0:00
SP
26
