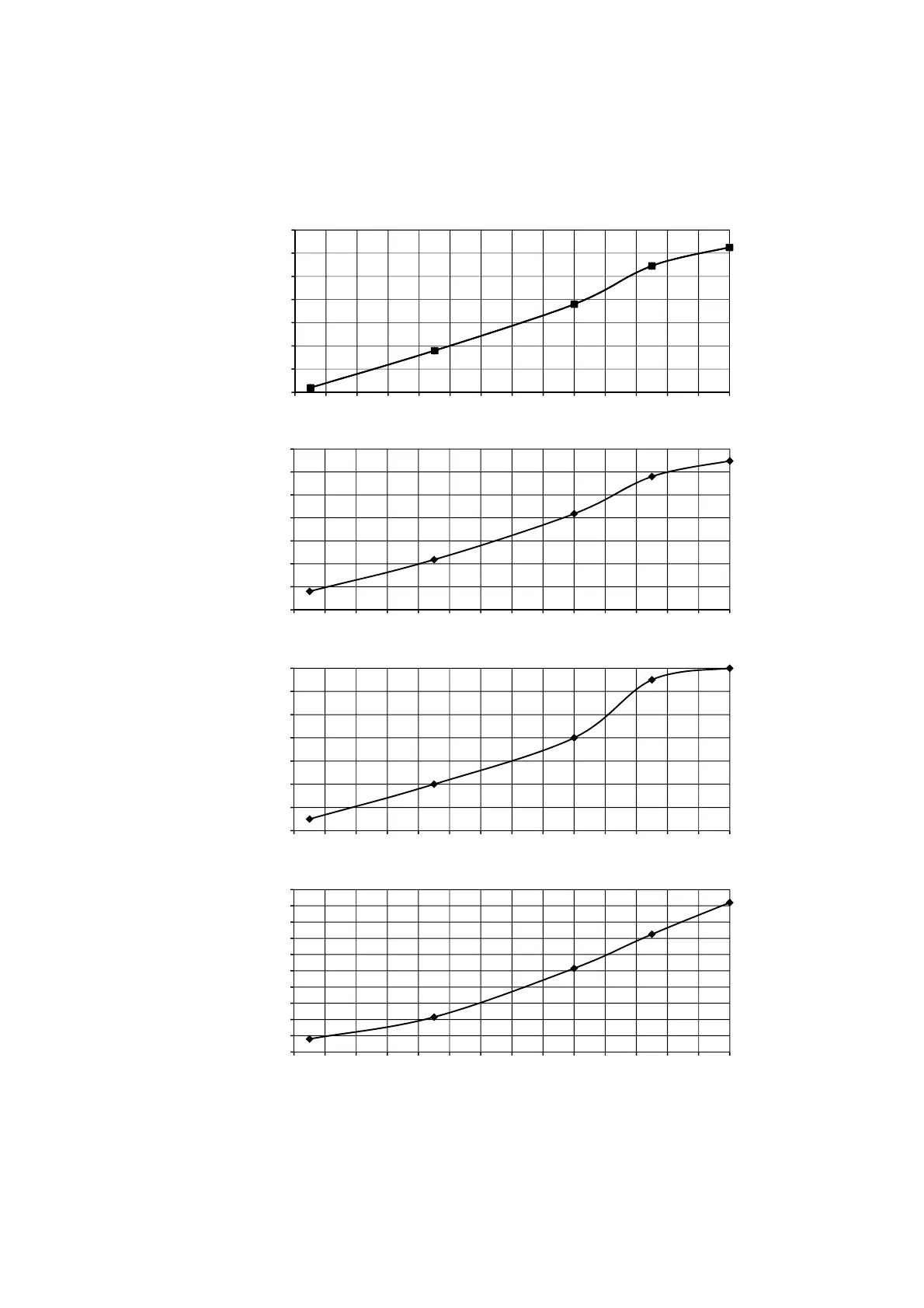

 Heating Characteristic
[Condition] Room temperature: 20°C (DBT), 12°C (WBT)
Operation condition: High fan speed
Piping length: 5.0 m
Voltage: 230V, 50Hz
B) Indoor unit capacity: Heating (2.5 + 2.5), CS-Z25TKEW + CS-Z25TKEW
26.000
28.000
30.000
32.000
34.000
36.000
38.000
40.000
-16 -14 -12 -10 -8 -6 -4 -2 0 2 4 6 8 10 12
Indoor Discharge
Air Temperature (°C)
Outdoor Air Temperature (°C)
2.500
3.000
3.500
4.000
4.500
5.000
5.500
6.000
-16-14-12-10-8-6-4-2024681012
Heating
Capacity (kW)
Outdoor Air Temperature (°C)
4.200
4.400
4.600
4.800
5.000
5.200
5.400
5.600
-16-14-12-10-8-6-4-2024681012
Current
(A)
Outdoor Air Temperature (°C)
0.800
1.000
1.200
1.400
1.600
1.800
2.000
2.200
2.400
2.600
2.800
-16-14-12-10-8-6-4-2024681012
Gas Side Piping
Pressure (MPa)
Outdoor Air Temperature (°C)
