Panasonic PT-DW10000E

· COLOR FILTER
NONE: Default setting
INSTALLED: When installing the color filter that expands the color region
· UNIFORMITY
Sets the value of color unevenness correction.
· FRONT LAMP LED
ON: Default setting
OFF: Prohibits a green lighting.
· LAMP CHANGE MUTE
ON: Turns off the projection temporarily when switching the lighting lamp.
OFF: Does not turn off the projection when switching the lighting lamp. However, a video noise might appear momentarily in the
projection.
· LENS SHIFT CALIBRATION
Calibrates the limit and the home position of the lens shift.
Execute LENS SHIFT CALIBRATION according to the procedure of the next paragraph when replacing the lens mount, LH-
Module or LV-Module.
4.3.4. Execution of LENS SHIFT CALIBRATION
1. Enter the serviceman mode according to the section 4.1. "Setting to Serviceman Mode".
2. Select LENS SHIFT CALIBRATION in EXTRA OPTION.
3. Press the ENTER button. When you execute LENS SHIFT CALIBRATION, press the ENTER button again when displayed
"SURE?".
4. The lens moves up/down/right/left, and the limit and the home position values of the shift are set again automatically.
5. When the lens stops, re-setting is finished.
5 Self-diagnosis Display
There is a self-diagnosis display located at the side of the projector which automatically displays error details when an error occurs.
If an error-code is displayed in the self-diagnosis display, check the part of the cause according to the content of the error-code
table below.

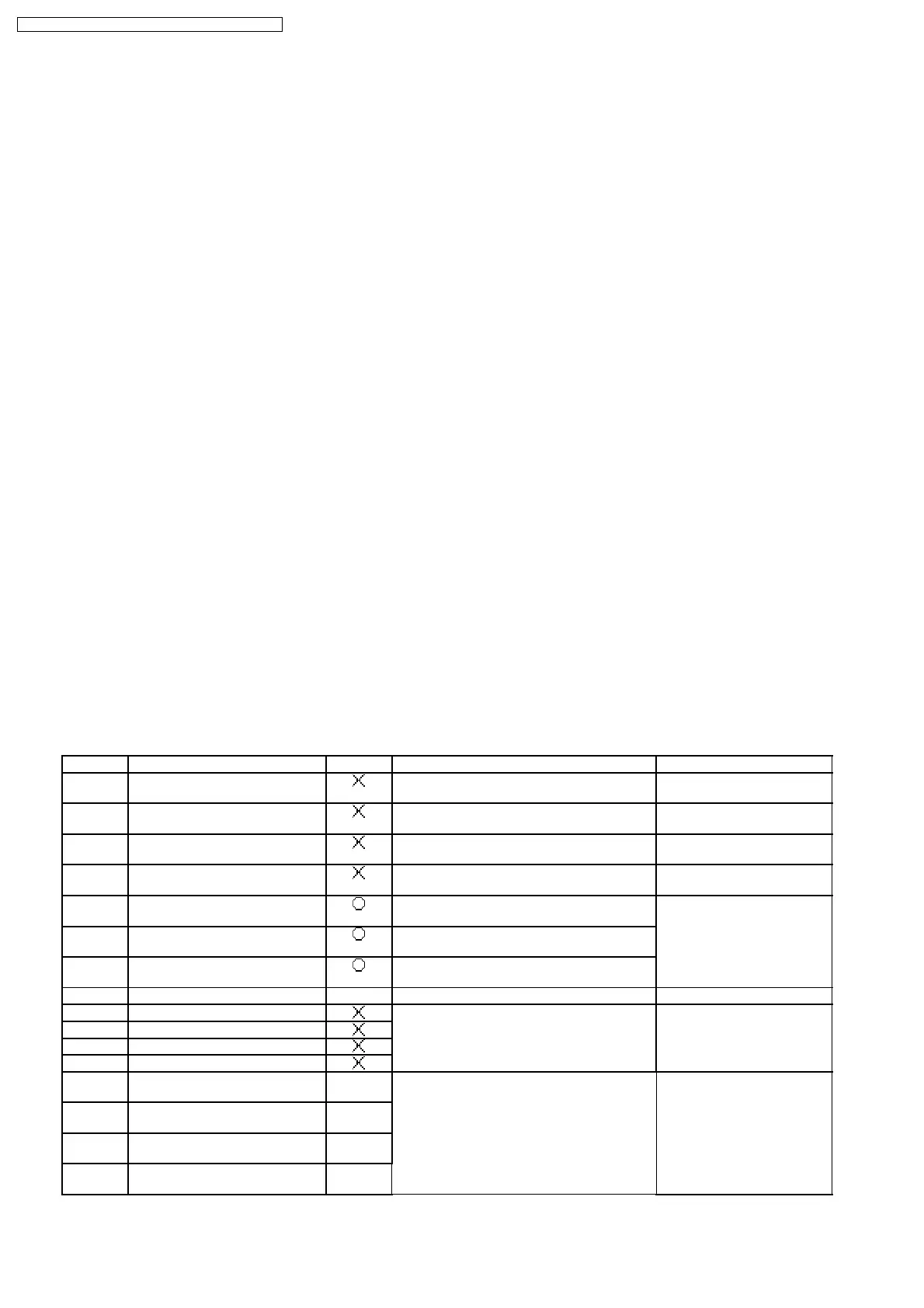

5.1. Error-code Table
Error-code Contents Shutdown Error display condition Remarks
U11 Temperature warning (IN) Intake air temperature is the specific value or
higher.
U12 Temperature warning (OPT) Optical module temperature is the specific
value or higher.
U13 Temperature warning (OUT) Lamp surroundings temperature is the specific
value or higher.
U14 Low temperature warning (OPT) Optical module temperature is less than the
specific value.
U21 Temperature error (IN) Intake air temperature is the specific value or
higher.
After turning on the power, the
shutdown processing is not
done for 2.5 minutes.
U22 Temperature error (OPT) Optical module temperature is the specific
value or higher.
U23 Temperature error (OUT) Lamp surroundings temperature is the specific
value or higher.
U24 Low temperature error (OPT) *1 Optical module temperature is less than 5°C.
U41 Lamp 1 operating time warning
Lamp cumulative usage time is 1 800 hour or
longer.
LAMP monitor lights in red.
U42 Lamp 2 operating time warning
U43 Lamp 3 operating time warning
U44 Lamp 4 operating time warning
U61 Lamp 1: 2 000 hour operating time
exceeded
*2
Lamp cumulative usage time is 2 000 hour or
longer.
After turning on the lamp, it will
turn off in 10 minutes. LAMP
monitor lights in red.
U62 Lamp 2: 2 000 hour operating time
exceeded
*2
U63 Lamp 3: 2 000 hour operating time
exceeded
*2
U64 Lamp 4: 2 000 hour operating time
exceeded
*2
14
PT-D10000U / PT-D10000E / PT-DW10000U / PT-DW10000E
