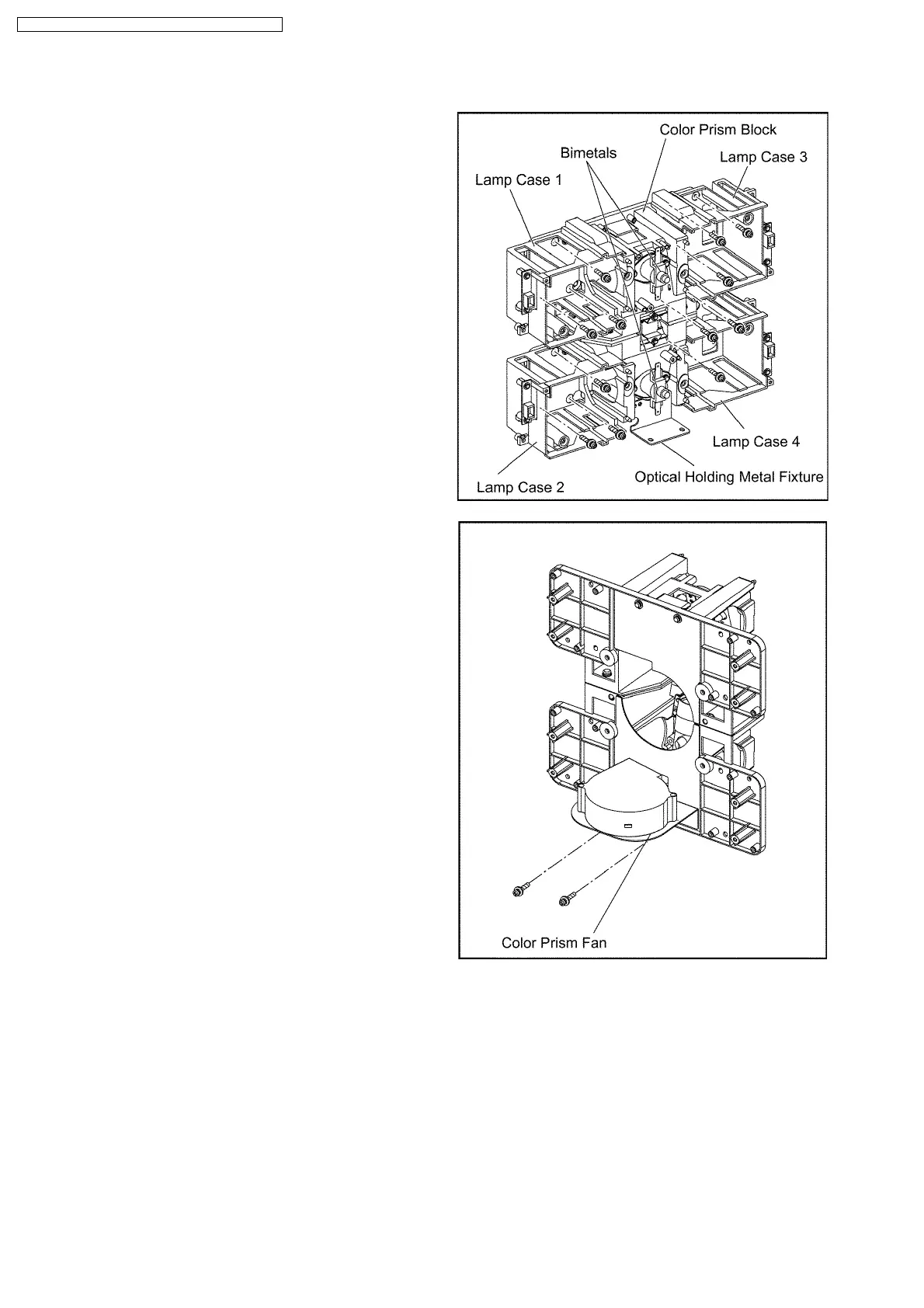

12.24. Removal of Color Prism Block
(1) Remove the color prism block (with lamp case) according to the
section 12.23. "Removal of Analysis Block".
(2) Unscrew each of 3 screws and remove the 4 lamp cases.
(3) Unscrew the 2 screws and remove the optical holding metal
fixture.
(4) Unscrew each of 2 screws and remove the 2 bimetals.
(5) Unscrew the 2 screws and remove the color prism fan.
12.25. Removal of DMD Block and Liquid Cooling Unit
Note:
·
Before attempting the removing, shift the lens to the foremost position.
46
PT-D10000U / PT-D10000E / PT-DW10000U / PT-DW10000E
