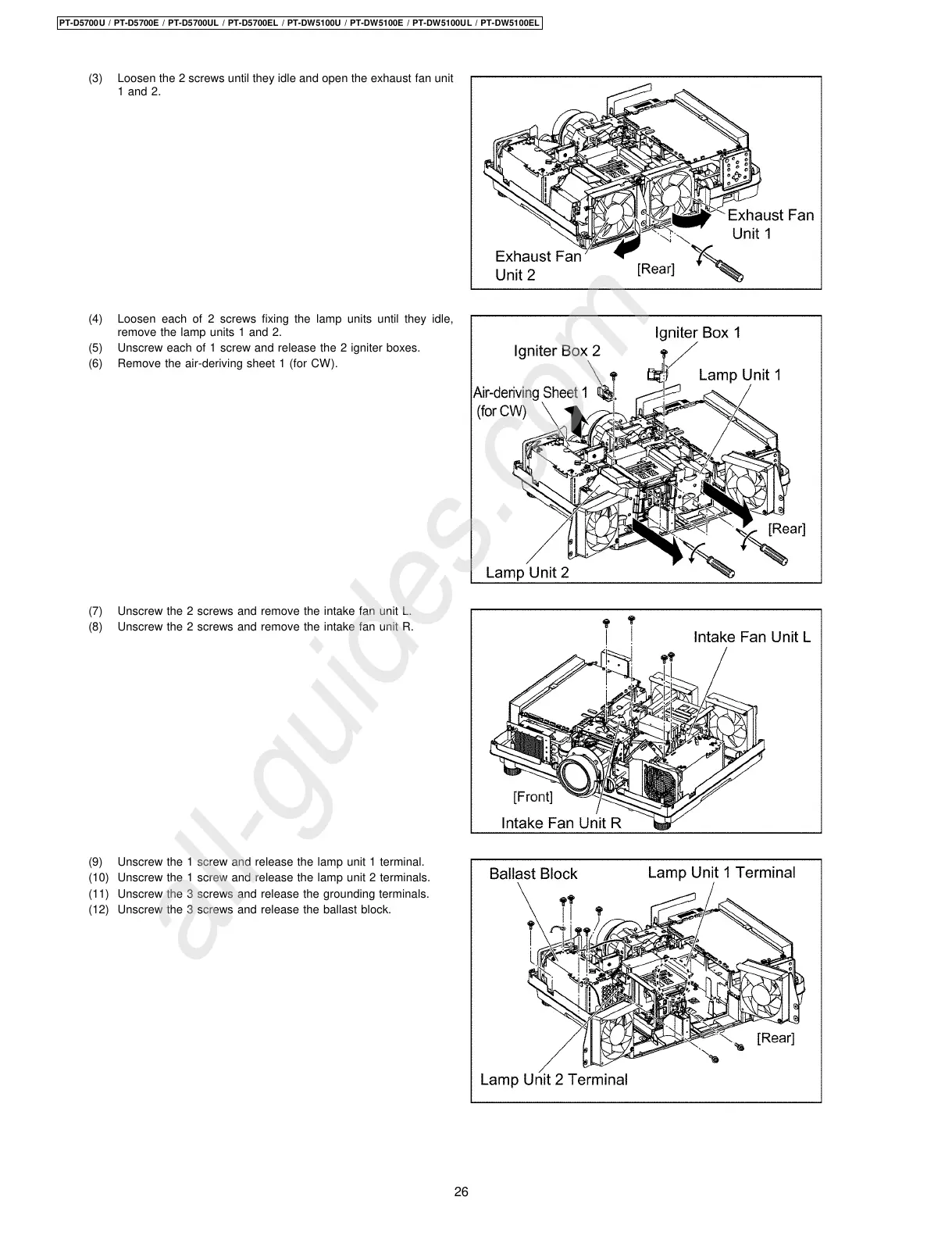

(3) Loosen the 2 screws until they idle and open the exhaust fan unit
1 and 2.
(4) Loosen each of 2 screws fixing the lamp units until they idle,
remove the lamp units 1 and 2.
(5) Unscrew each of 1 screw and release the 2 igniter boxes.
(6) Remove the air-deriving sheet 1 (for CW).
(7) Unscrew the 2 screws and remove the intake fan unit L.
(8) Unscrew the 2 screws and remove the intake fan unit R.
(9) Unscrew the 1 screw and release the lamp unit 1 terminal.
(10) Unscrew the 1 screw and release the lamp unit 2 terminals.
(11) Unscrew the 3 screws and release the grounding terminals.
(12) Unscrew the 3 screws and release the ballast block.
