Panasonic PT-FW530

Chapter 2 Getting Started — Setting up
32 - ENGLISH
Parts for ceiling mount (optional)
The projector can be installed on the ceiling by combining the optional Ceiling Mount Bracket (Model No.:
ET-PKD120H (for High Ceilings), ET-PKD120S (for Low Ceilings)) and ET-PKE301B (Projector Mount Bracket).
f
Be sure to use the Ceiling Mount Bracket specied for this projector.
f
Refer to the Installation Instructions supplied with the Ceiling Mount Bracket when installing the projector with
the bracket.
Attention
f
To ensure projector performance and security, installation of the Ceiling Mount Bracket must be carried out by your dealer or a qualied
technician.

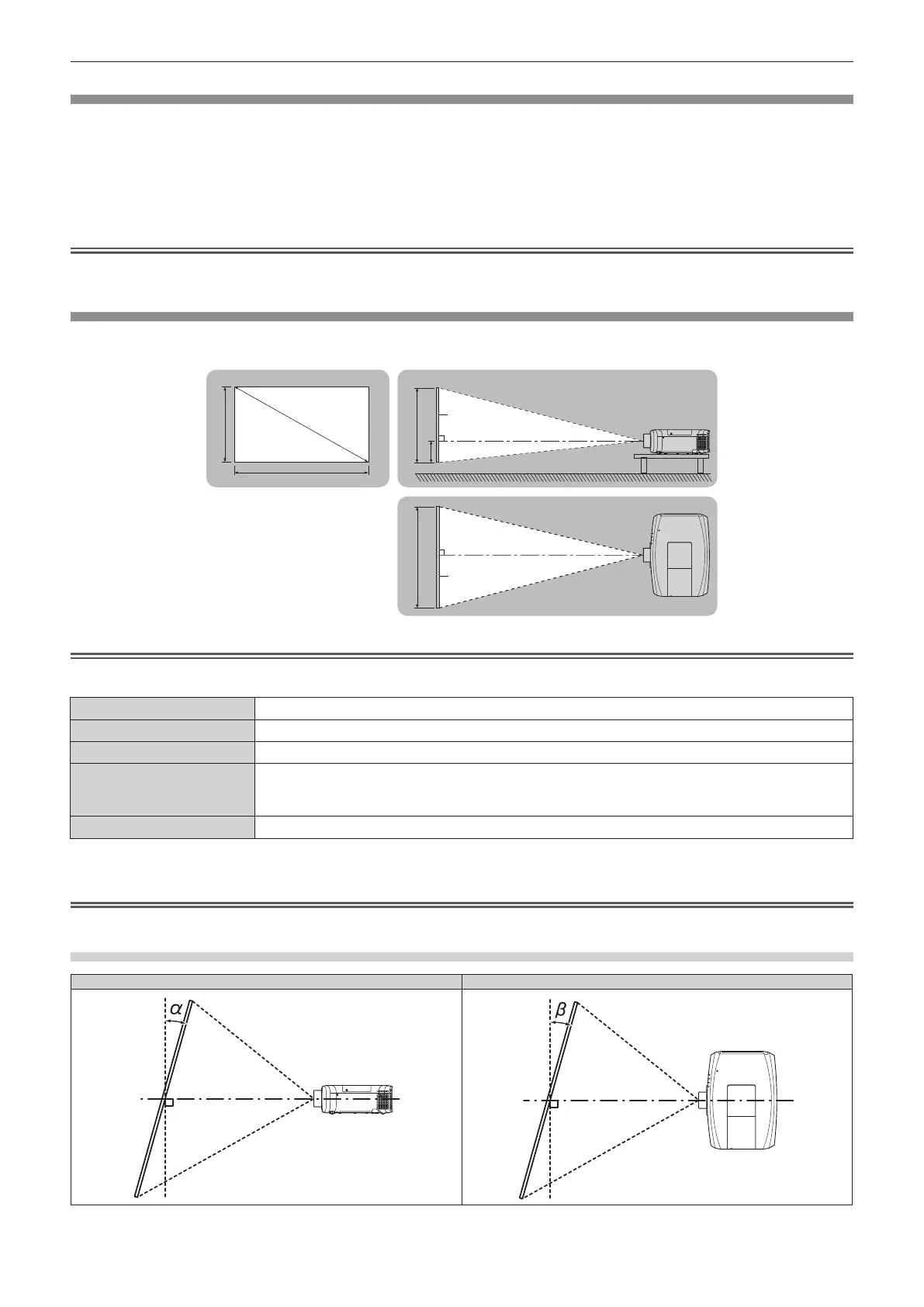

Projected image and throw distance
Refer to the screen size and projection distances to install the projector. Image size and image position can be
adjusted in accordance with the screen size and screen position.
SD
L (LW/LT)
L (LW/LT)
SW SH
H
SH
SW
Note
f
This illustration is represented on the assumption that the size and position of the projection screen are matched to ll the screen.
(Unit: m)
L (LW/LT)
*1
Projection distance
SH Projected image height
SW Projected image width
H
Distance from the lens center to the bottom edge of the projected image
(When setting on a desk/oor, if the bottom edge of the projected image is below the lens center, the value
of H is positive.)
SD Projected image size
*1 LW: Minimum projection distance
LT: Maximum projection distance
Attention
f
Before setting up, read “Precautions for use” (
x
page 17).
[SCREEN ADJUSTMENT] projection range
[VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above)
Screen Screen
Projected image
Screen
Screen
