15 Ball joint movable part
16 Shaft
17 Ball joint

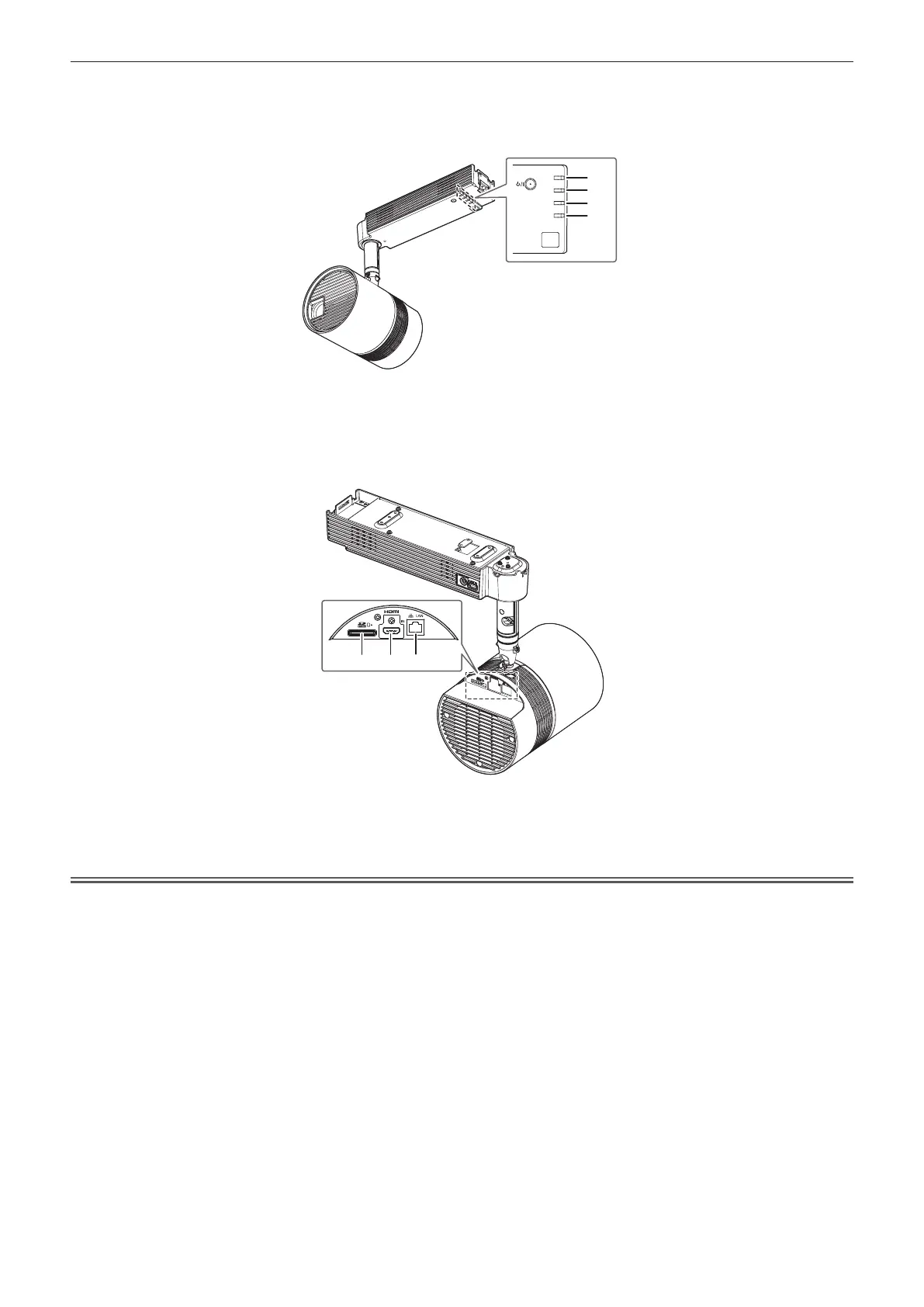

r Indicators
ON
(
G
)
/
STANDBY
(
R
)
LIGHT
TEMP
SD
1
2
3
4
1 Power indicator <ON (G)/STANDBY (R)>
Displays the status of the power. (x page 41)
2 Light source indicator <LIGHT>
Displays the status of the light source. (x page 200)
3 Temperature indicator <TEMP>
Displays the internal temperature status. (x page 201)
4 SD card indicator <SD>
Blinks in green when accessing the SD card.
r Connecting terminals
1 2 3
1 SD card slot
Supports SD memory card and SDHC memory card.
(x page 49)
2 <HDMI IN> terminal
This is the terminal to input HDMI signal. (x page 38)
3 <LAN> terminal
This is the terminal to connect to the network. (x page 38)
Attention
f The LAN cable connecting to the projector directly should be wired indoors only.
f Store small parts such as SD card in an appropriate manner, and keep them away from small children.
