Chapter 2 Getting Started — Connecting
ENGLISH - 39
Attaching the caps to the connecting terminals
It is recommended to attach the supplied terminal caps to the <HDMI IN> terminal and the <LAN> terminal
where cables are not attached, and the supplied card slot cap to the SD card slot to prevent dust getting into the
connecting terminals.

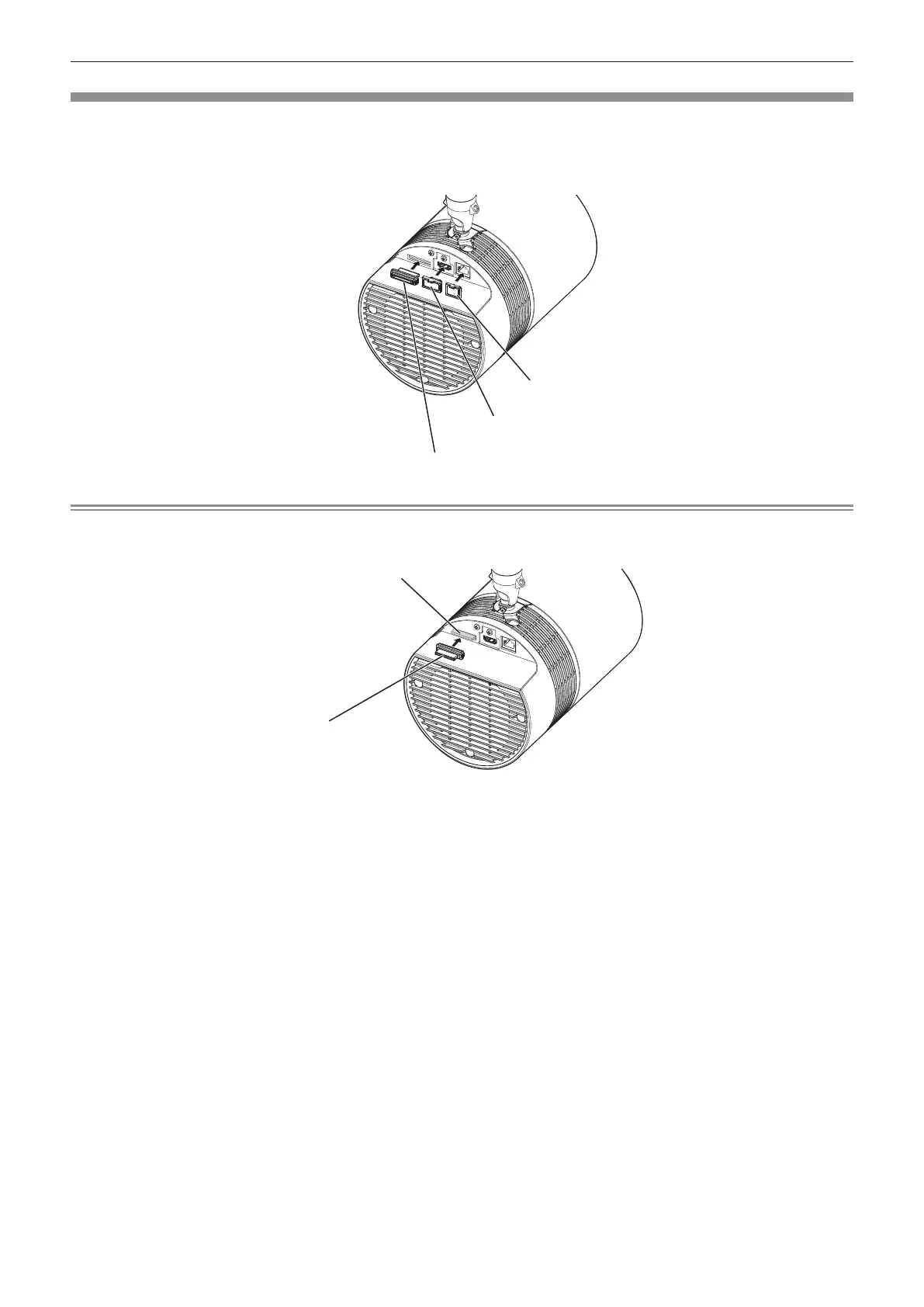

Before attaching the caps, check the shapes of the caps and the places to attach.
LAN terminal cap
HDMI terminal cap
Card slot cap
Note
f The card slot cap can be attached even when an SD card is inserted.
The direction of attaching the card slot cap will differ as shown below depending on the existence of the SD card. Check the condition of the
SD card slot and the direction of the card slot cap before attaching.
SD card
Card slot cap
f Do not insert with excessive force when attaching the cap. Doing so may damage the terminal or the cap.
Also, when attaching the card slot cap with the SD card inserted, the SD card will be in ejected state if it is pressed in too much.
