Chapter 2 Getting Started — Before the installation
34 - ENGLISH

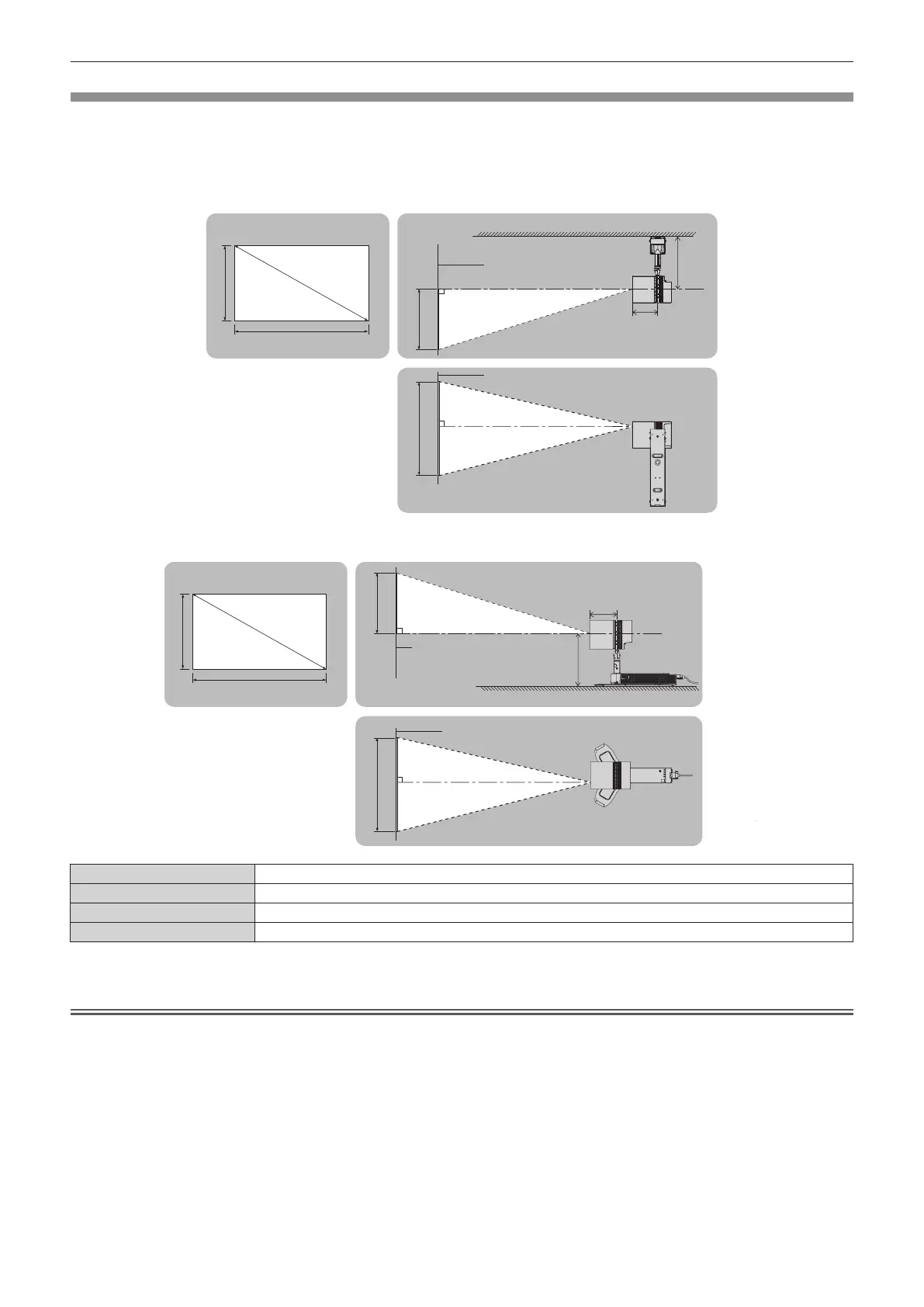

Projection dimensions
Decide the installation position on the ceiling or the installation position on the oor referencing to the following
illustrations and projection distance dimensions. The size and position of the projected image can be adjusted
according to the area and position of the projection surface.
r When installing on the ceiling
SD
L (LW/LT)
L (LW/LT)
SW SH
SH
SW
Projected image
Projection surface
142 mm
(5-19/32")
300.8 mm
(11-27/32")
Ceiling
Projection surface
r When standing on the oor
SD
L (LW/LT)
L (LW/LT)
SW SH
SH
SW
Projected image
Projection surface
269.6 mm
(10-5/8")
Floor
Projection surface
142 mm (5-19/32")
L (LW/LT)
*1
Projection distance (distance from the projection lens surface to the projection surface) (m)
SH Image height (m)
SW Image width (m)
SD Image diagonal size (m)
*1 LW: Minimum projection distance
LT: Maximum projection distance
Attention
f Before setting up, read “Precautions for use” (x page 17).
f Do not use the projector and the high-power laser equipment in the same room. The DLP chip can be damaged if a laser beam hits the lens
surface.
