Getting Started
3) Adjust projection using the lens shift lever.

z

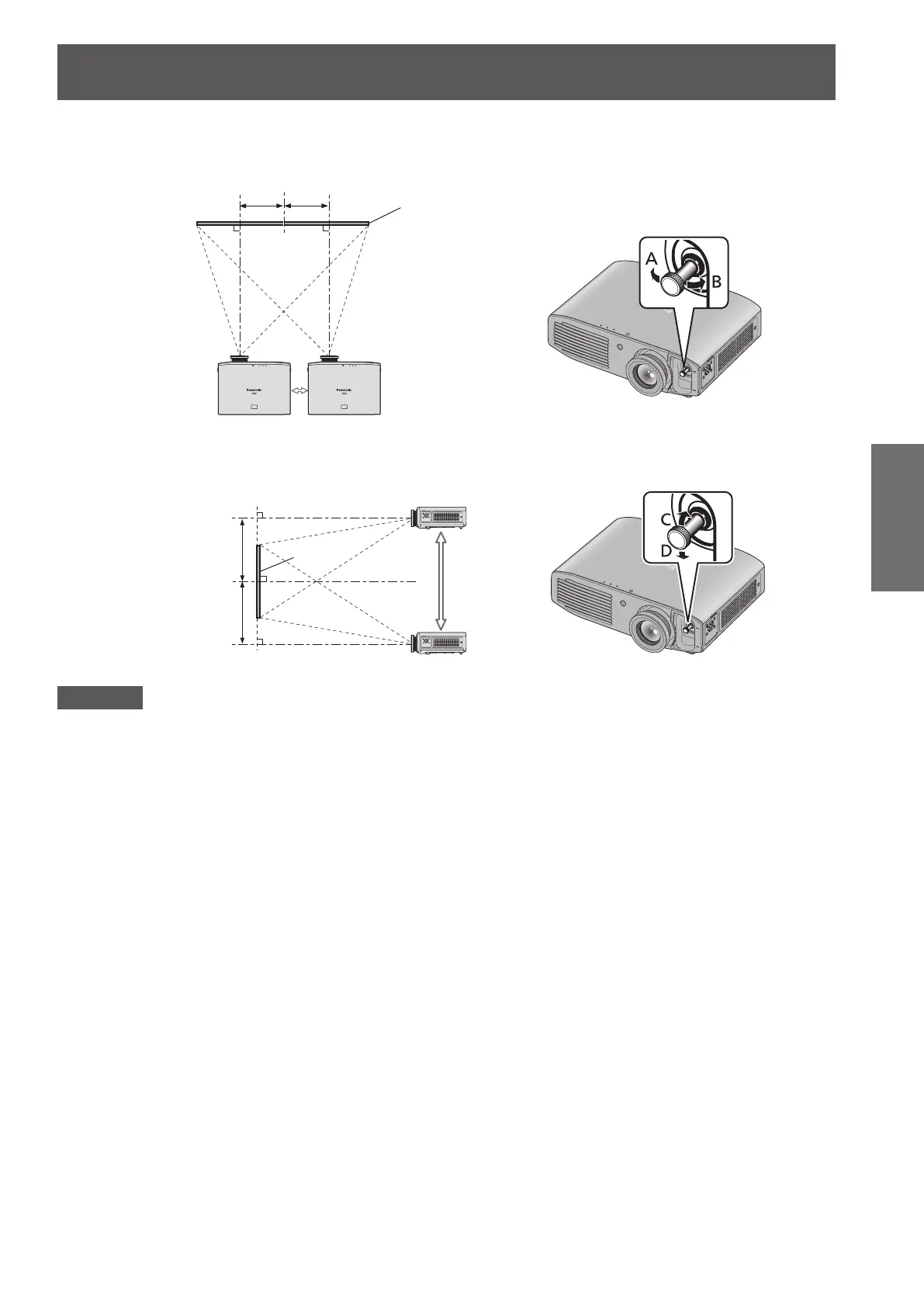

When adjusting the horizontal position, move the lens shift lever horizontally.
Up to approx. 26% of the
projection screen
Up to approx. 26% of the
projection screen
Screen
Move the lens shift lever
in direction A
Move the lens shift lever
in direction B

z
When adjusting the vertical position, move the lens shift lever vertically.
Move the lens shift
lever in direction D
Move the lens shift
lever in direction C
Screen
Up to approx.
65% of the
projection screen
Up to approx.
65% of the
projection screen
Attention
z
Do not force the lens shift lever. If excessive force is placed on the lever, it may break.
4) Rotate the lens shift lever clockwise to x.
5) Attach the lens shift cover.
