Chapter 1āPreparation ā About your projector
28 - ENGLISH
About your projector

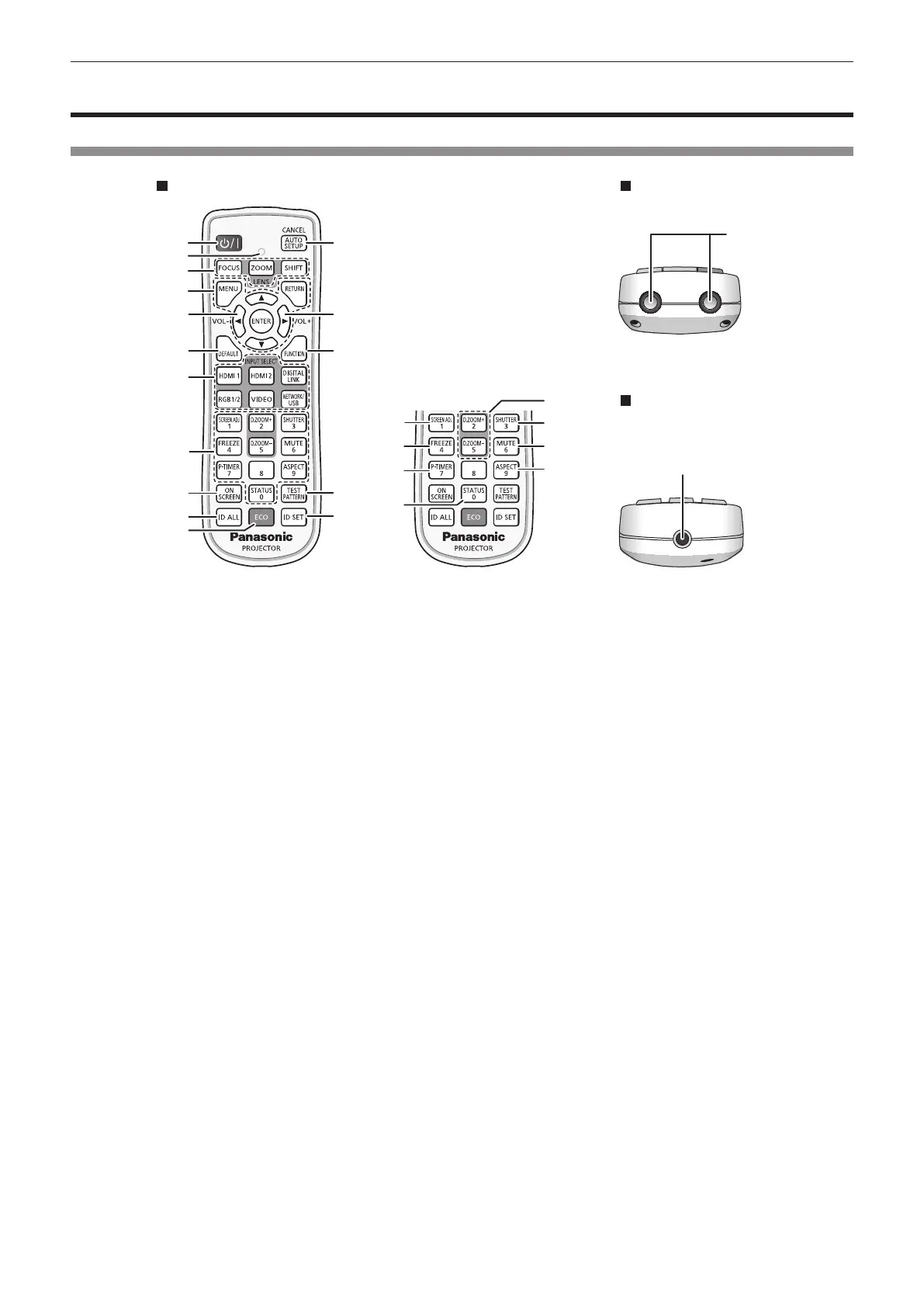

Remote control
1
2
6
5
7
8
9
16
19
17
18
10
11
4
3
13
5
12
14
15
24
25
21
20
22
23
Front Top
Bottom
1 Power <v/b> button
(v: Standby, b: Power on)
Sets the projector to the state where the projector is turned
off (standby mode) when the <MAIN POWER> switch on the
projector is set to <ON> and in projection mode.
Sets the projector to projection mode when the power is
switched off (standby mode).
2 Remote control indicator
Blinks if any button in the remote control is pressed.
3 Lens buttons (<FOCUS>, <ZOOM>, <SHIFT>)
Adjusts the focus, zoom, and lens shift of the lens.
(x page 67)
4 <MENU> button/<RETURN> button/<ENTER> button/
asqw buttons
Used to navigate through the menu screen. (x page 79)
asqw buttons are also used to enter the password in
[SECURITY] or enter characters.
5 <VOL
-
> button/<VOL+> button
Adjusts the volume of the built-in speaker and the audio output.
(x page 72)
6 <DEFAULT> button
Resets the content of the displayed sub-menu to the factory
default. (x page 80)
7 Input selection buttons (<HDMI 1>, <HDMI 2>, <DIGITAL
LINK>, <RGB1/2>, <VIDEO>, <NETWORK/USB>)
Switches the input signal to project. (x page 66)
8 Number (<0> - <9>) buttons
Used for entering an ID number or a password in a multiple
projector environment.
9 <ON SCREEN> button
Switches the on-screen display function on (display) or off
(hide). (x page 72)
10 <ID ALL> button
Used to simultaneously control all the projectors with a
single remote control in a multiple projector environment.
(x page 33)
11 <ECO> button
Displays the setting screen relating to ECO management. (x
pages 76, 113)
12
<AUTO SETUP/CANCEL> button
Automatically adjusts the image display position while projecting
the image.
[PROGRESS] is displayed while in automatic adjustment.
(x page 73)
Also used for cancel operation during digital zoom and the
operation of the Memory Viewer screen, or while the standby
screen for Panasonic APPLICATION input is displayed.
During MIRRORING input, the receiving device name and the
URL to access the projector are displayed at the top left of the
screen. (x page 183)
13 <FUNCTION> button
Assigns a frequently used operation as a shortcut button.
(x page 75)
14 <TEST PATTERN> button
Displays the test pattern. (x page 75)
15 <ID SET> button
Sets the ID number of the remote control in a multiple projector
environment. (x page 33)
16 <SCREEN ADJ> button
Used to correct the distortion of the projected image. (x pages
73, 92)
17 <FREEZE> button
Used when pausing the image and turning off the audio.
(x page 72)
Operates the presentation timer function. (x page 75)
19 <STATUS> button
Displays the projector information.
20 <D.ZOOM+> button/<D.ZOOM
-
> button
Enlarges or reduces the image. (x page 74)
21 <SHUTTER> button
Used when temporarily turning off the image and audio.
(x page 71)
22 <MUTE> button
Used when temporarily turning off the audio. (x page 71)
Switches the aspect ratio of the image. (x page 75)
24 Remote control signal transmitter
