17 Luminance sensor (x page 87)
18 Control panel (x page 31)
19 Top slide cover
There is the wireless module connection terminal inside.
(x page 50)
20 Burglar hook port
Attaches a burglar prevention cable, etc.
Attention
f Do not block the ventilation ports (intake and exhaust) of the projector.
The components may deteriorate faster if cooling inside the projector is inhibited.

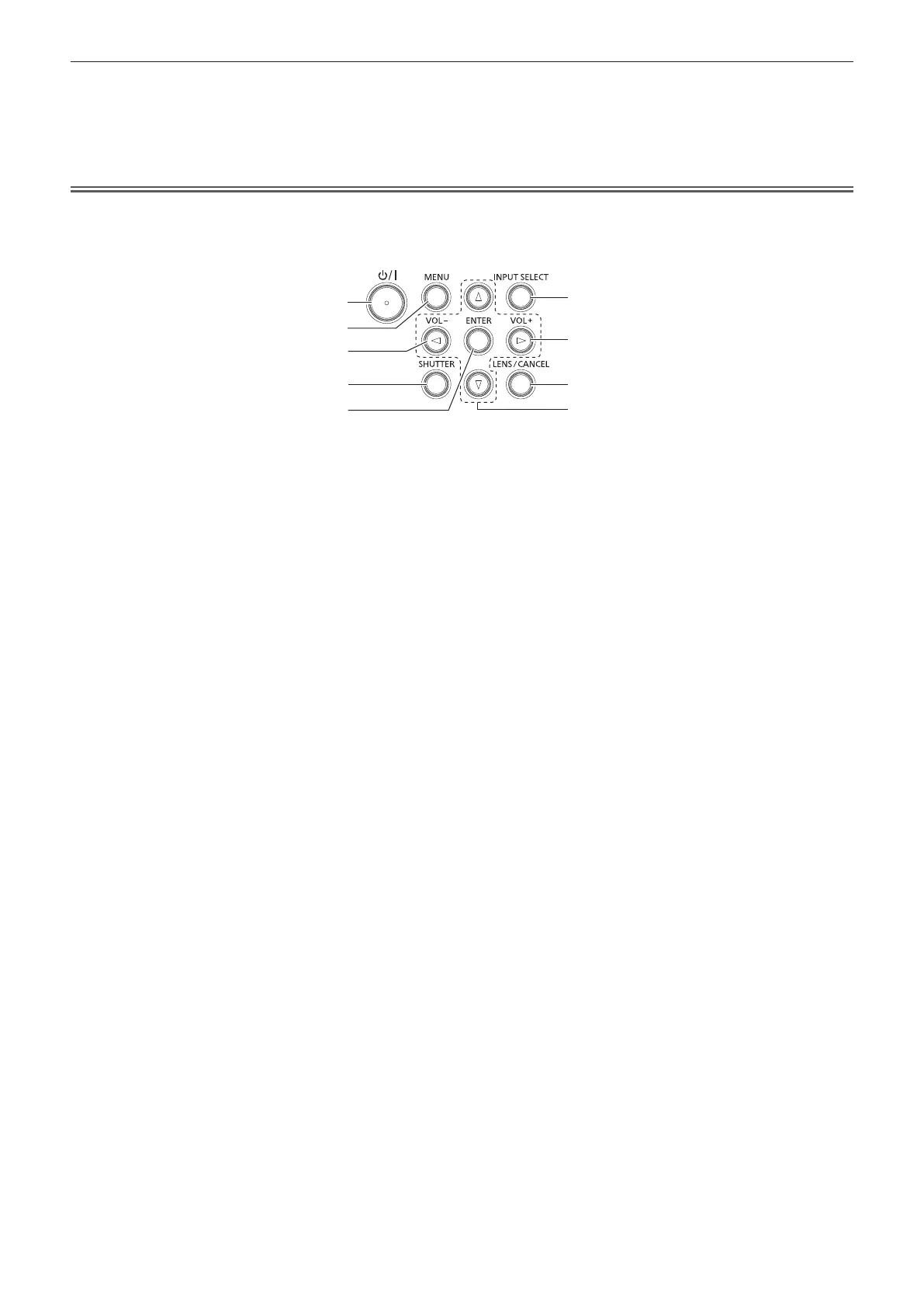

r Control panel
6
3
7
8
1
3
4
5
2
1 Power <v/b> button
(v: Standby, b: Power on)
Sets the projector to the state where the projector is turned
off (standby mode) when the <MAIN POWER> switch on the
projector is set to <ON> and in projection mode.
Sets the projector to projection mode when the power is
switched off (standby mode).
2 <MENU> button
Displays or hides the main menu. (x page 79)
Returns to the previous menu when a sub-menu is displayed.
3 <VOL
- > button/<VOL+> button
Adjusts the volume of the built-in speaker and the audio output.
(x page 72)
4 <SHUTTER> button
Used to turn off the image and audio temporarily. (x page 71)
5 <ENTER> button
Determines and executes an item in the menu screen.
6 <INPUT SELECT> button
Switches the input signal to project. (x page 66)
7 <LENS/CANCEL> button
Adjusts the focus, zoom, and lens shift of the lens.
(x page 67)
Also used for cancel operation during digital zoom and
operation in theMemory Viewer screen, or while the standby
screen for MIRRORING input or Panasonic APPLICATION input
is displayed.
8 asqw buttons
Selects an item in the menu screen, changes the setting, and
adjusts the level.
Also used to enter a password in the [SECURITY] menu or
enter characters.
