Panasonic PT-REZ80 - Page 53

Chapter 2 Getting Started — Removing/attaching the projection lens
ENGLISH - 53

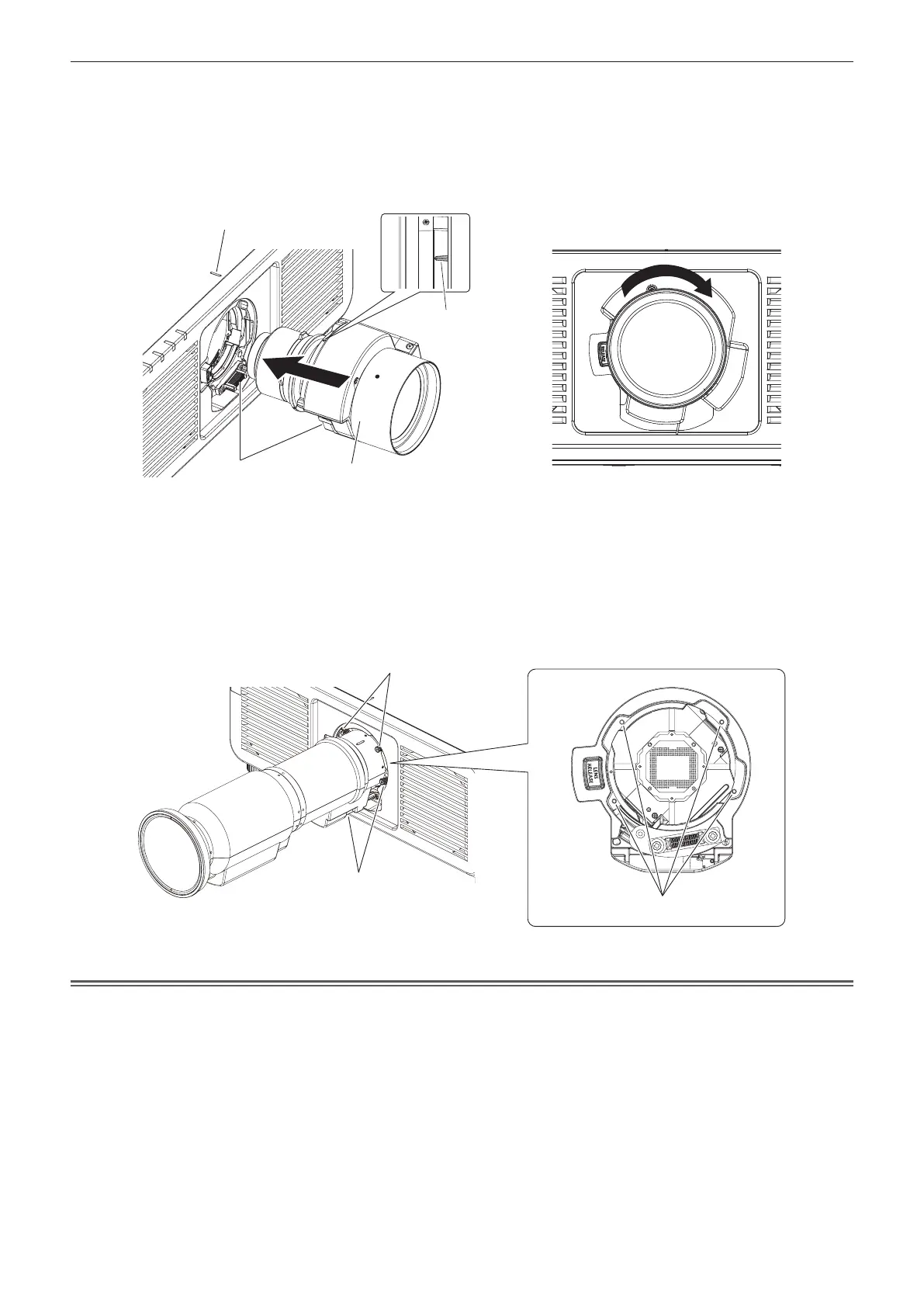

2) Align the protruding mark on the projection lens with the protruding mark of the projector, and insert
the projection lens all the way in. (Fig. 2)
f When inserting the projection lens, be careful not to damage the connector.
3) Turn the projection lens clockwise until it clicks. (Fig. 3)
f Continue to perform Step 4) when attaching the Zoom Lens (Model No.: ET-C1U100).
Fig. 2 Fig. 3
4) Secure the projection lens with the lens fixing screws. (Fig. 4)
(Only for ET-C1U100)
f Tighten the lens xing screws to the four screw holes near the projections lens by using the ball point hex
driver.
g Firmly tighten the lens xing screws in diagonal order while supporting the barrel of the projection lens
from the bottom with your hand.
Fig. 4
Attention
f Turn the projection lens counterclockwise to conrm that it does not come out.
f When attaching the Zoom Lens (Model No.: ET-C1U100), be sure to support the barrel of the projection lens from the bottom with your hand
while tightening the lens xing screws. Failure to do so may cause inadequate tightening of the lens xing screws.
f If the projection lens was replaced, execute the [PROJECTOR SETUP] menu → [LENS] → [LENS CALIBRATION].(x page 156)
Protruding mark on the projector
Protruding mark
on the projection lens
Projection lens
Connector
Lens xing screws
Lens xing screws
Screw holes
Projection lens
