Panasonic S-22MM1E5 - High Static Pressure Ducted Type (E1 Type); Required Minimum Space for Installation and Service

27
■
High Static Pressure Ducted Type (E1 Type)
3-25. Required Minimum Space for Installation and
Service (73, 106, 140 Types)
●
This air conditioner is usually installed above the ceiling so
that the indoor unit and ducts are not visible. Only the air
intake and air outlet ports are visible from below.
●

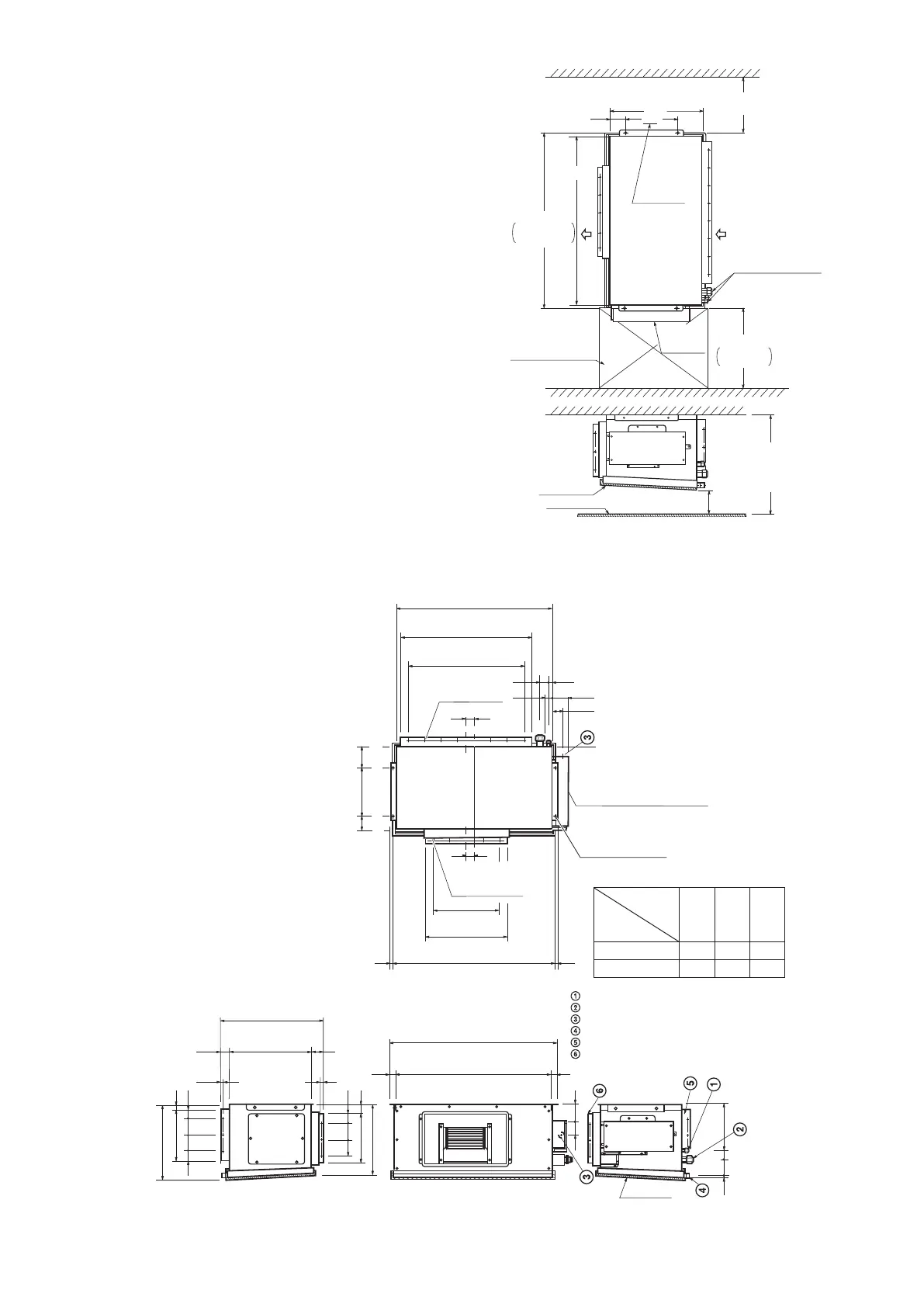

The minimum space for installation and service is shown in
Fig. 3-69.
●
It is recommended that space be provided (600 × 600 mm)
for checking and servicing the electrical system.
●
Fig. 3-70 and Table 3-3 show the detailed dimensions of the
indoor unit.
980
940
130
290
500
Fig. 3-69
A
310
100
100
300
B
50
55
25
500 70
35 940 35
15
81
80 290 130
60
90
20
40
55
7s100=700
4s100=400
500
793
940
48
46
100
1010
15
10 10
620
55 55
100
100
3C
55
2
(274)
Fig. 3-70
Min. 600
(Space for service)
Suspension
bolt pitch
Air suction side
Refrigerant tubing
Suspension
bolt pitch
Inspection access
(600 × 600)
Min. 600
Space for
service
Electrical
component
box
Drain pan
Ceiling face
(106, 140 Types)
(73 Type)
or
Min.
550
Min.
580
Min. 130
22 - ø3.2
(Hole for full
circumference)
4-ø20 hole for
suspension bolt
980 (Suspension bolt pitch)
(Suspension bolt pitch)
Refrigerant liquid line (ø9.52 or ø6.35)
Drain pan
Refrigerant gas line (ø19.05 or ø15.88)
Power supply entry
Drain connection (25A, O.D. 32 mm)
Duct connection for suction
Duct connection for discharge
16 - ø3.2
(Hole for full
circumference)
Electrical component box
Unit: mm
Table 3-3
Unit: mm
Length
Type
ABC
73, 106 420 395 68
140 450 425 98
Unit: mm
