10 Self-Diagnosis Function and Service Mode
10.1. Self-Diagnosis Function (VTR Section)
10.1.1. Sef-Diagnosis Display
(Overview)
The details of failures detected in circuit or mechanism by the microcomputer will be automatically displayed on the FL display
as the result of self diagnosis.
(Setting)
The details of a failure applicable to an error code are displayed on the minute, ten seconds, one second position of the FIP.
(Display)

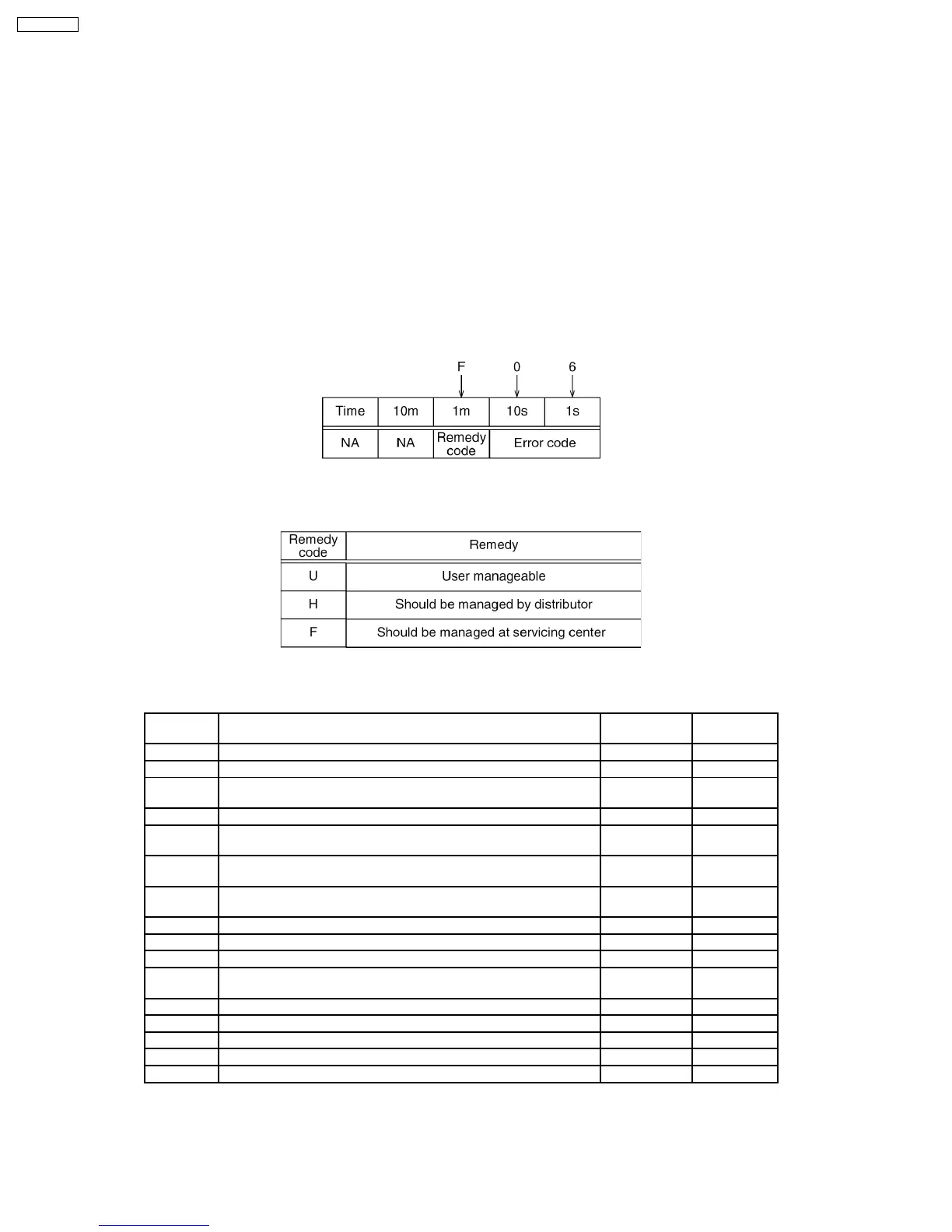

FL display example:
(List of Remedy Code)
(List of Error Code)
Display Meaning Automatic
display
Memory
U11 Detection of head clogging-ups O O
U30 Remote controller mode error O X
H01 No initialization of cylinder due to no loading(Cylinder, driving circuit
failure, etc.)
O O
H02 No capstan FG at load position(Capstan, driving circuit failure, etc.) O O
F03 Mechanism locking not because of unloading, cassette up*
Displayed when detected twice consecutively.
O O
F04 Mechanism locking due to unloading* Displayed when detected twice
consecutively.
O O
F05 No S-reel pulse due to unloading(S-reel system, capstan system
failure)
X O
F06 Mechanism locking due to cassette up O O
F07 Recording circuit operation failure during REC operation O O
F08 Recording circuit operation failure not during REC operation O O
F15 No capstan FG when cassette is loaded(Capstan system, S-reel
system failure)
X O
H16 Cylinder lock detected during normal rotation X O
H17 S-reel lock detected during normal running O O
H18 T-reel lock detected during normal running O O
H80 EJECT mode when an error is detected X O
F2* Error during PG automatic adjustment O O
