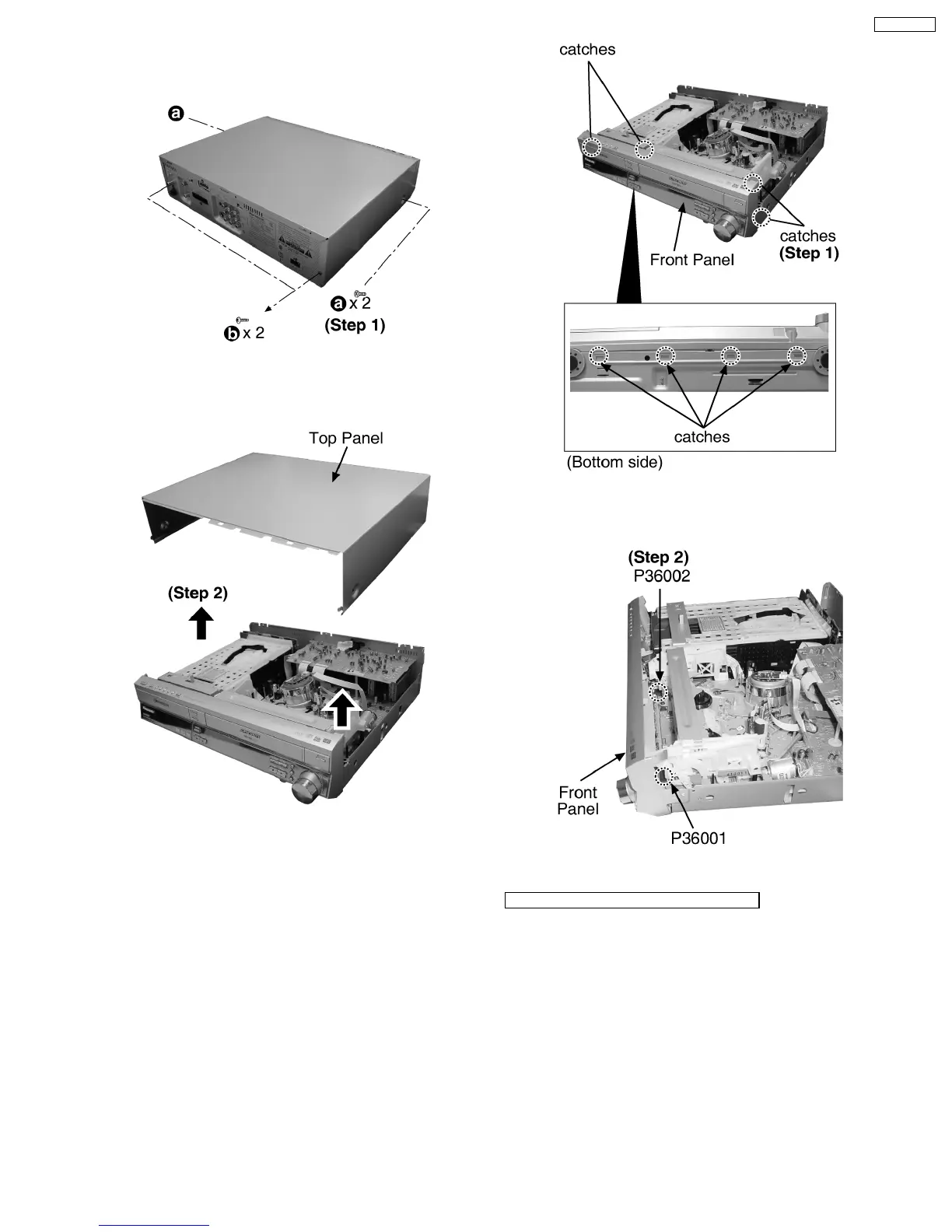

16.3. Disassembly of Top Panel
Step 1: Remove 4 screws.
Step 2: Remove the Top Panel as arrow shown below.
16.4. Disassembly of Front Panel
·
Follow the (Step 1) to (Step 2) of item 16.3
Step 1: Release all the catches.
Step 2: Detach the connector (P36001, P36002).
Caution of disassembly for Front Panel
Press upward the cassette rack to place the Front Panel.
