inner, middle, and outer tracks. After this, fasten each adjustment screw securely using a screw lock.
12.4.4. Procedure for Screw Lock
1. After adjustment, remove the top cover, clamper base, disc tray and then traverse unit.
2. Place the traverse unit upside down, and fasten the adjustment screws with a screw lock. (Fig. 12.2)
3. After fastening the screws, assemble in order of the traverse unit, disc tray, clamper base, and then top cover.

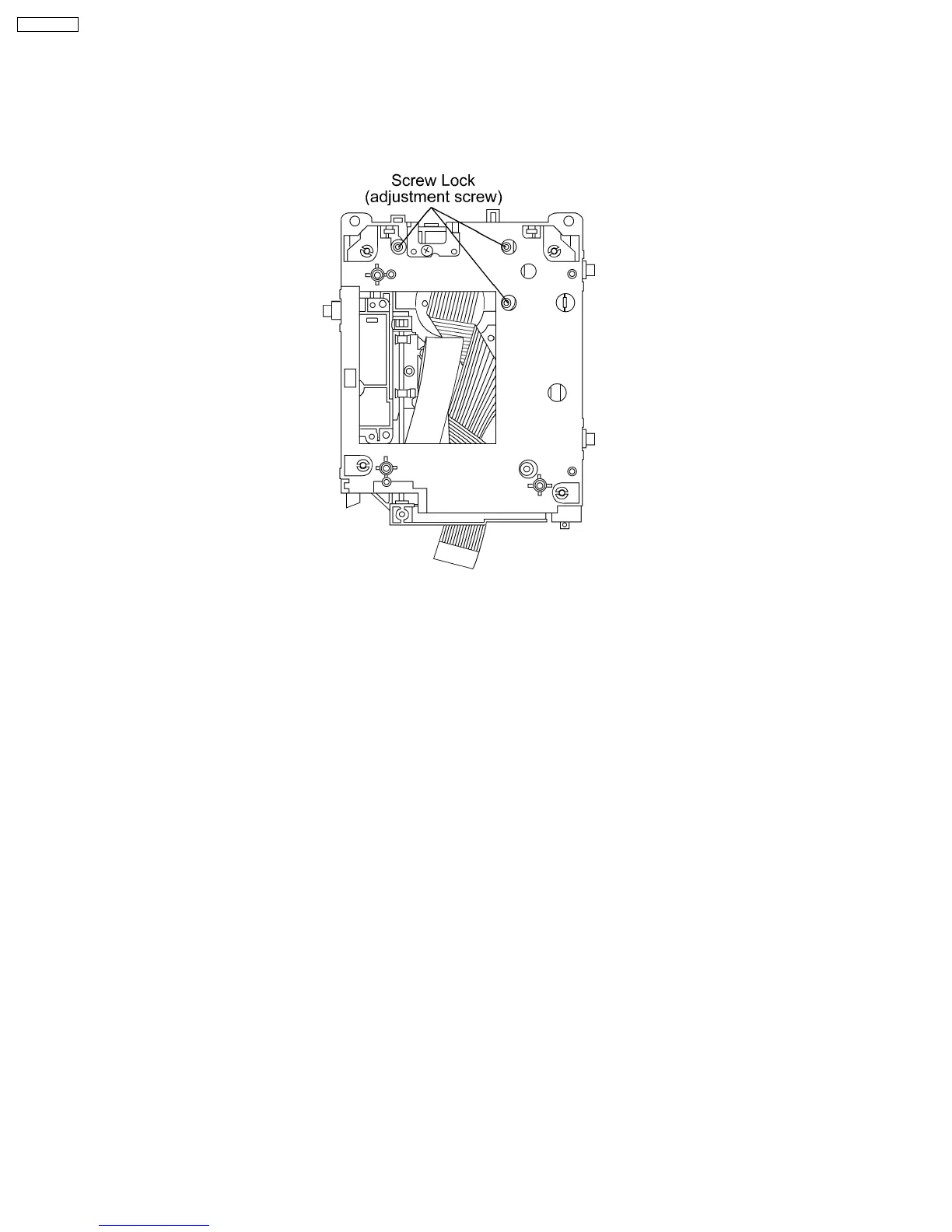

Fig. 12-2
