5 Disassembly and Assem-
bly Instructions

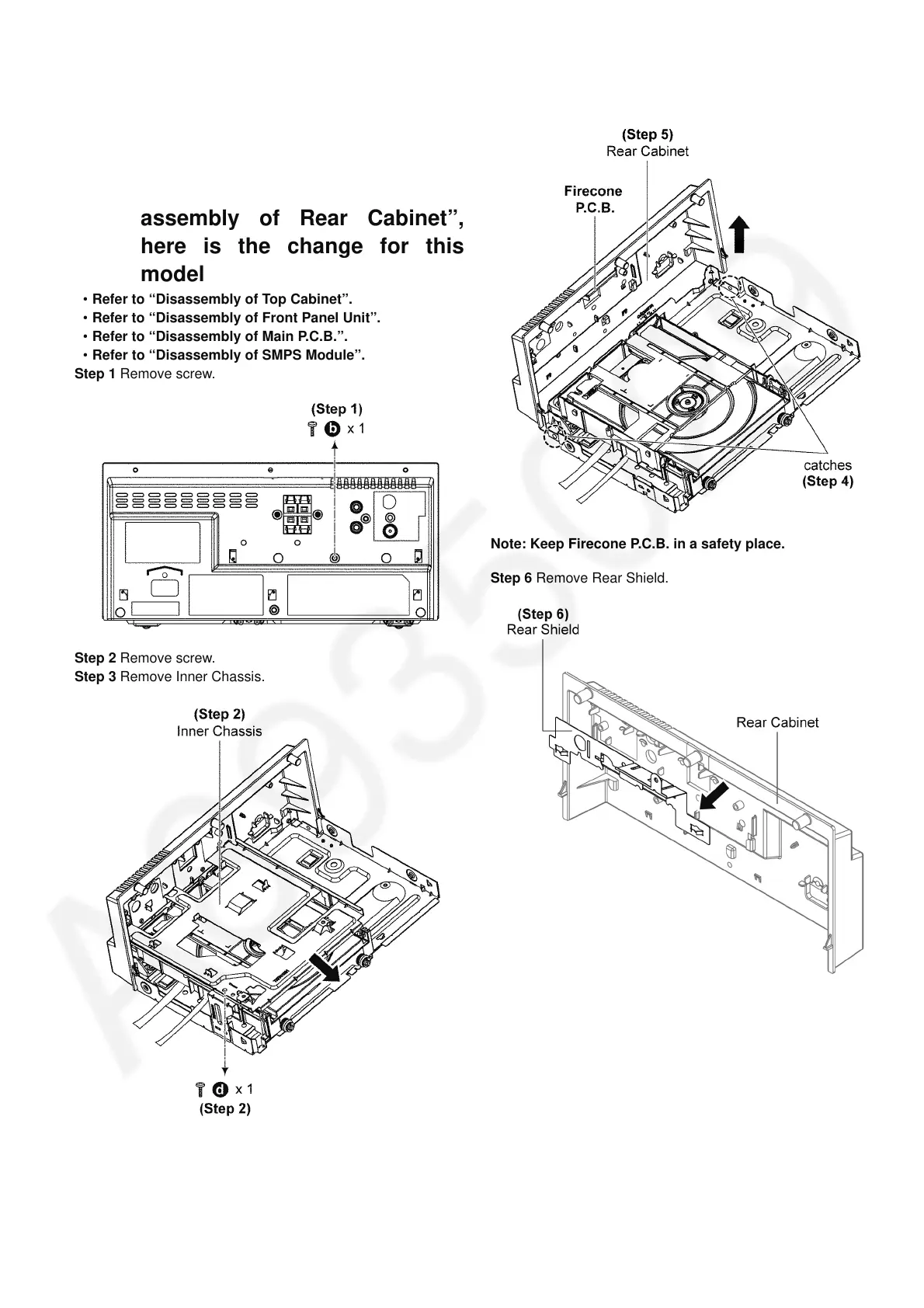

5.1. With reference to original ser-
vice manual Section 8.9 “Dis-
assembly of Rear Cabinet”,
here is the change for this
model
• Refer to “Disassembly of Top Cabinet”.
• Refer to “Disassembly of Front Panel Unit”.
• Refer to “Disassembly of Main P.C.B.”.
• Refer to “Disassembly of SMPS Module”.
Step 1 Remove screw.
Step 2 Remove screw.
Step 3 Remove Inner Chassis.
Step 4 Release catches.
Step 5 Remove Rear Cabinet.
Note: Keep Firecone P.C.B. in a safety place.
Step 6 Remove Rear Shield.
