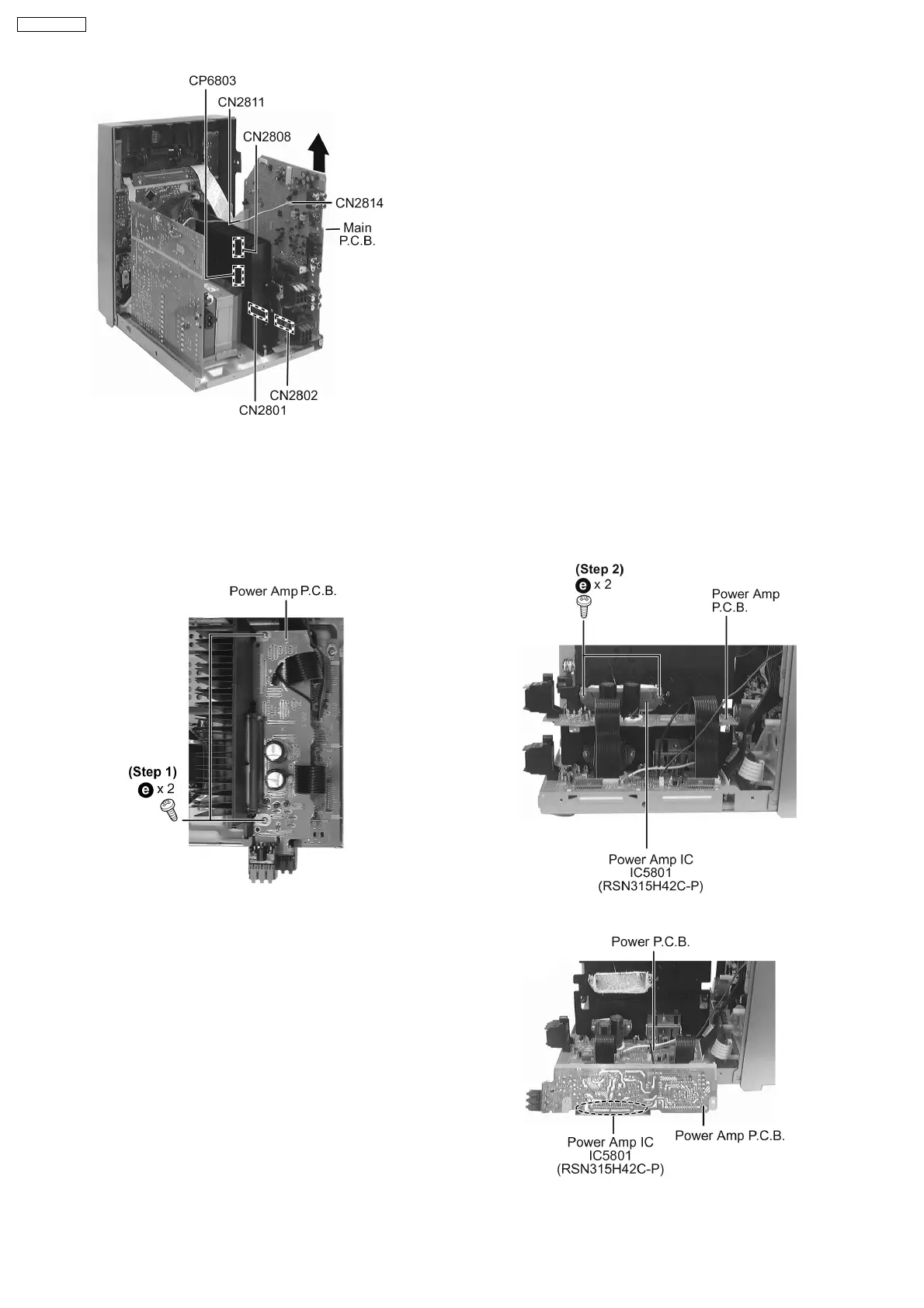

Step 1 Remove the 2 screws at Power Amp P.C.B..
Step 2 Remove the 2 screws at each Power Amp IC.
Step 2 Lift up Main P.C.B. by disconnecting connectors
CN2801 & CN2802 as arrow shown above.
Step 3 Lift up the Power Amp P.C.B. to remove it.
Step 4 Desolder wire at holder H5804.
15.7. Disassembly of Power Amp P.C.B.
·
Follow the (Step 1) - (Step 2) of Item 15.3 - Disassembly of Top Cabinet
·
Follow the (Step 1) of Item 15.4 - Disassembly of Rear Panel
·
Follow the (Step 1) - (Step 4) of Item 15.5 - Disassembly of DVD Changer Unit
·
Follow the (Step 1) - (Step 2) of Item 15.6 - Disassembly of Main P.C.B.
30
SA-VK825DEE
