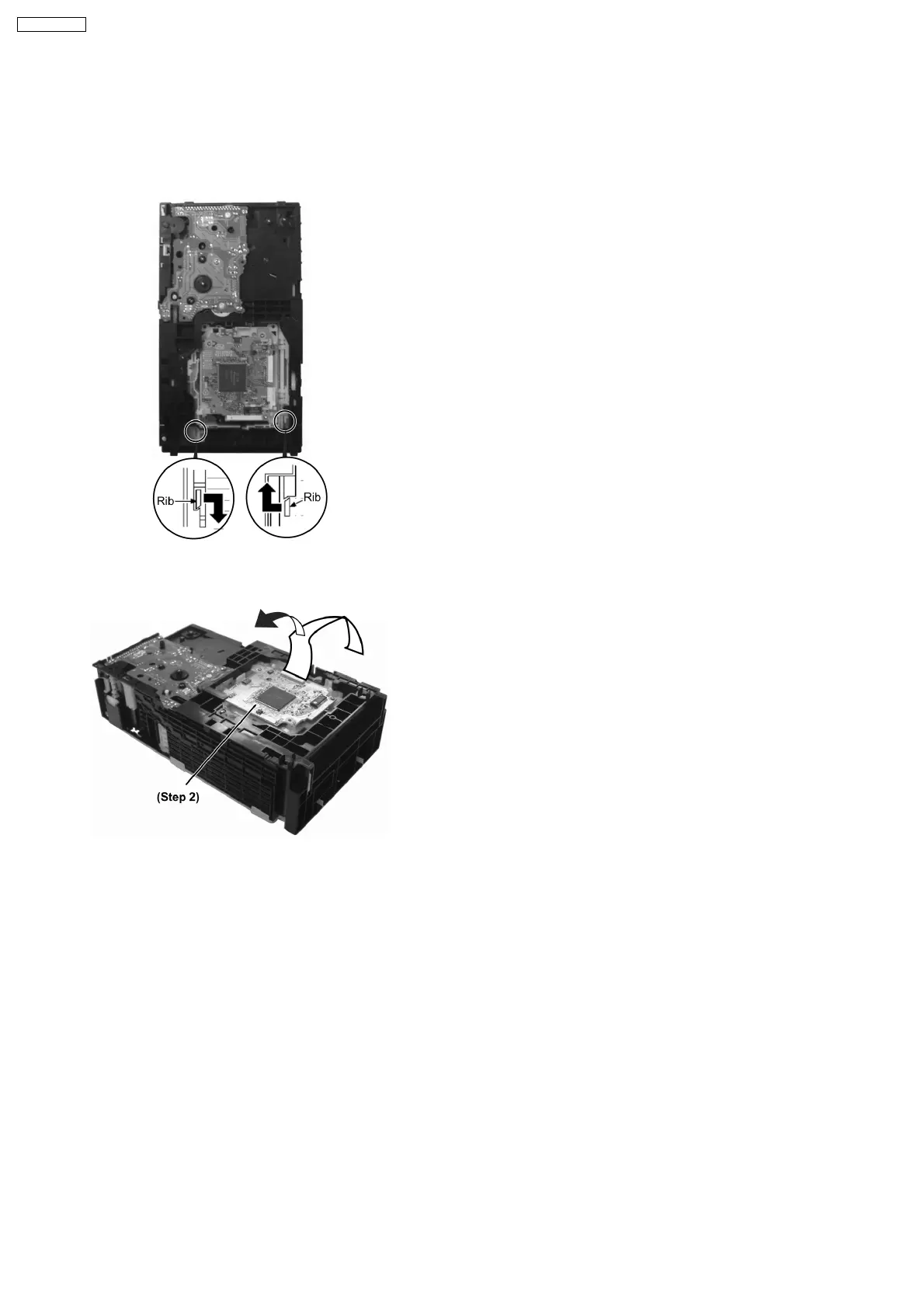

Step 1 Move ribs at both sides to the arrow direction (The
vertical rack (R) slides and the groove opens).
Step 2 Remove DVD traverse deck by rotating to the arrow
direction.
15.14. Replacement for Traverse Deck
·
Follow the (Step 1) - (Step 2) of Item 15.3 - Disassembly of Top Cabinet
·
Follow the (Step 1) - (Step 7) of Item 15.5 - Disassembly of DVD Changer Unit
36
SA-VK825DEE
