Panasonic SA-VK825DEE - Disassembly of Deck Mechanism Unit; Replacement for Deck P.C.B

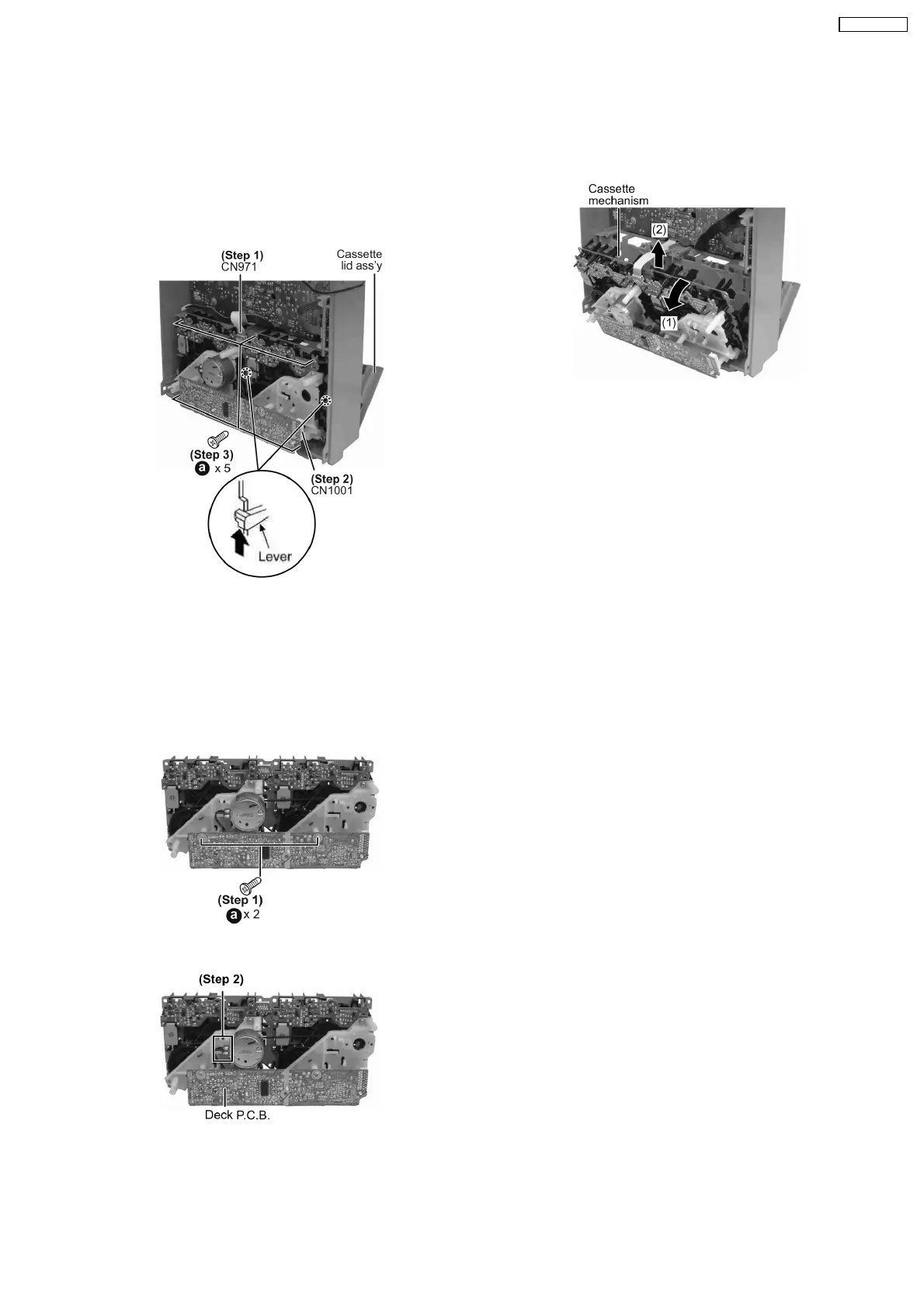

Step 1 Detach FFC wire CN971.
Step 2 Disconnect FFC flat cable from the connector CN1001.
Step 3 Remove the 5 screws.
Step 1 Remove 2 screws.
Step 2 Unsolder the motor terminals.
Step 3 Remove Deck P.C.B.
Step 4 Push the lever upward, and then open the cassette lid
ass’y (For DECK1 and DECK2).
Step 5 Tilt the cassette mechanism unit in the direction of
arrow (1), and then remove it in the direction of arrow (2).
15.12. Disassembly of Deck Mechanism Unit
· Follow the (Step 1) - (Step 2) of Item 15.3 - Disassembly of Top Cabinet
· Follow the (Step 1) - (Step 4) of Item 15.5 - Disassembly of DVD Changer Unit
· Follow the (Step 1) - (Step 4) of Item 15.10 - Disassembly of Front Panel Unit
15.13. Replacement for Deck P.C.B.
· Follow the (Step 1) - (Step 2) of Item 15.3 - Disassembly of Top Cabinet
· Follow the (Step 1) - (Step 6) of Item 15.5 - Disassembly of DVD Changer Unit
· Follow the (Step 1) - (Step 4) of Item 15.10 - Disassembly of Front Panel Unit
· Follow the (Step 1) - (Step 5) of Item 15.12 - Disassembly of Deck Mechanism Unit
35
SA-VK825DEE
