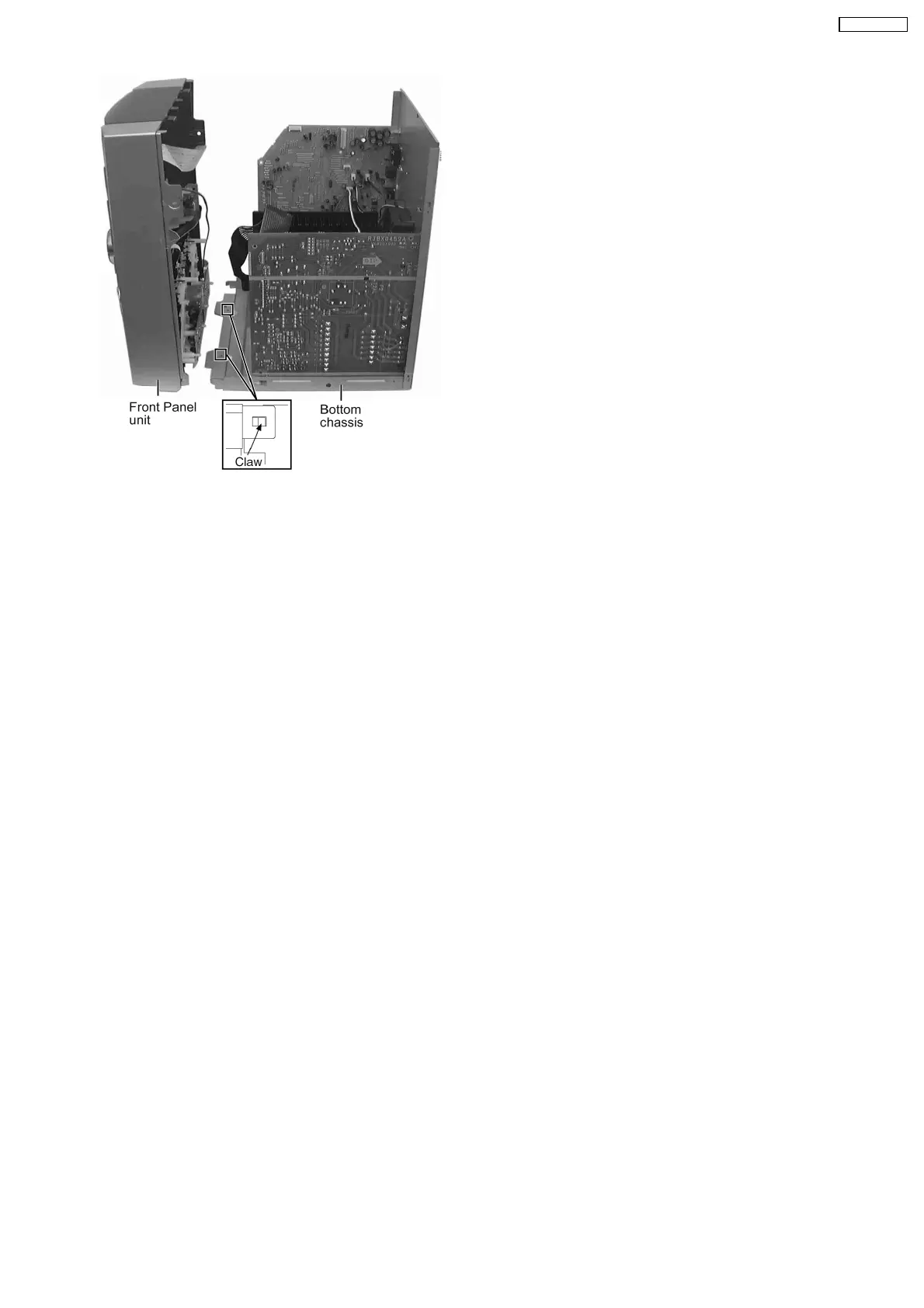

Step 4 Remove the front panel unit.

Note: Ensure 2 claws on bottom chassis is properly and fully

catched to the front panel holes.
