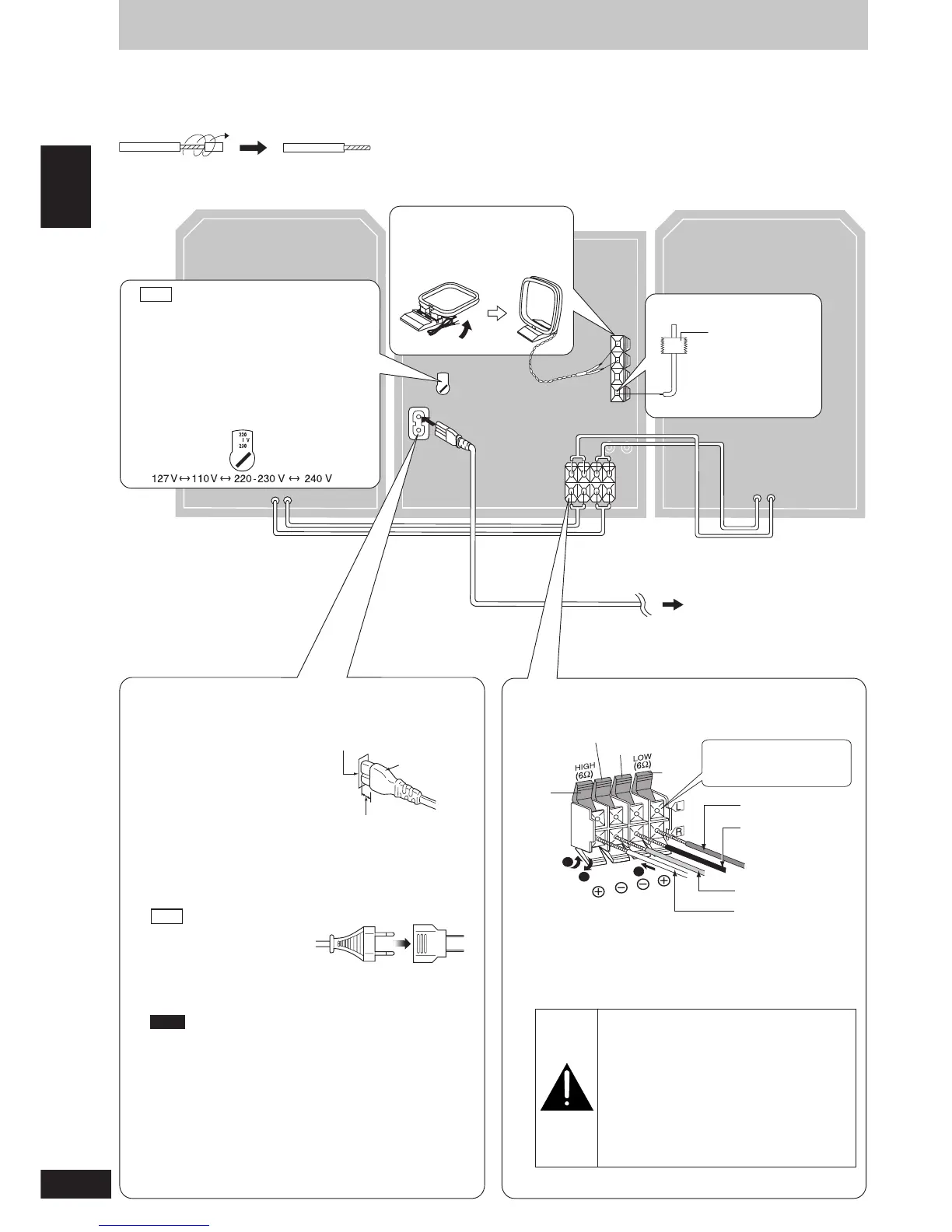

AM loop antenna
Stand the antenna up
on its base.
(R)
(L)
1
FM indoor antenna
Adhesive tape
Affix where
reception is best.
To household
AC outlet
Voltage selector
Use a flat-head screwdriver to turn the voltage
selector on the rear panel to the appropriate
position for the area in which this system is
used. If the power supply in your area is
115 V or 120 V, please set the voltage
selector as follows:
•
For 115 V: Set to 110 V.
•
For 120 V: Set to 127 V.
VOLT ADJ
4
GCP
only
Set-up
Connect the AC power supply cord only after all other connections have been made.
Preparation
Twist and pull off the vinyl tip of the antenna wires and speaker cords.
3 Speaker cords
Use only the supplied speakers.
The combination of the main unit and speakers provide the best
sound. Using other speakers can damage the unit and sound
quality will be negatively affected.
5 AC power supply cord
Note
The included AC power supply cord is for use with this unit
only. Do not use it with other equipment.
For your reference
To save power when the unit is not to be used for a long time,
unplug it from the household AC outlet. You will need to reset
some memory items after plugging in the unit.
Insertion of connector
Even when the connector
is perfectly inserted,
depending on the type of
inlet used, the front part
of the connector may jut
out as shown in the
drawing.
However there is no
problem using the unit.
GCP
only
If the power plug does not fit
your socket, use the power
plug adaptor (included).
Grey (+)
Red (+)
Blue
Grey
Black (–)
Blue (–)
Black
Red
1
3
2
Connect the left (L)
side in the same way.
Caution
•
Use the speakers only with the
recommended system. Failure to do so
may lead to damage to the amplifier and/
or the speakers, and may result in the risk
of fire. Consult a qualified service person
if damage has occurred or if you
experience a sudden change in
performance.
•
Do not attach these speakers to walls or
ceilings.
Connector
Appliance inlet
Approx. 6 mm
