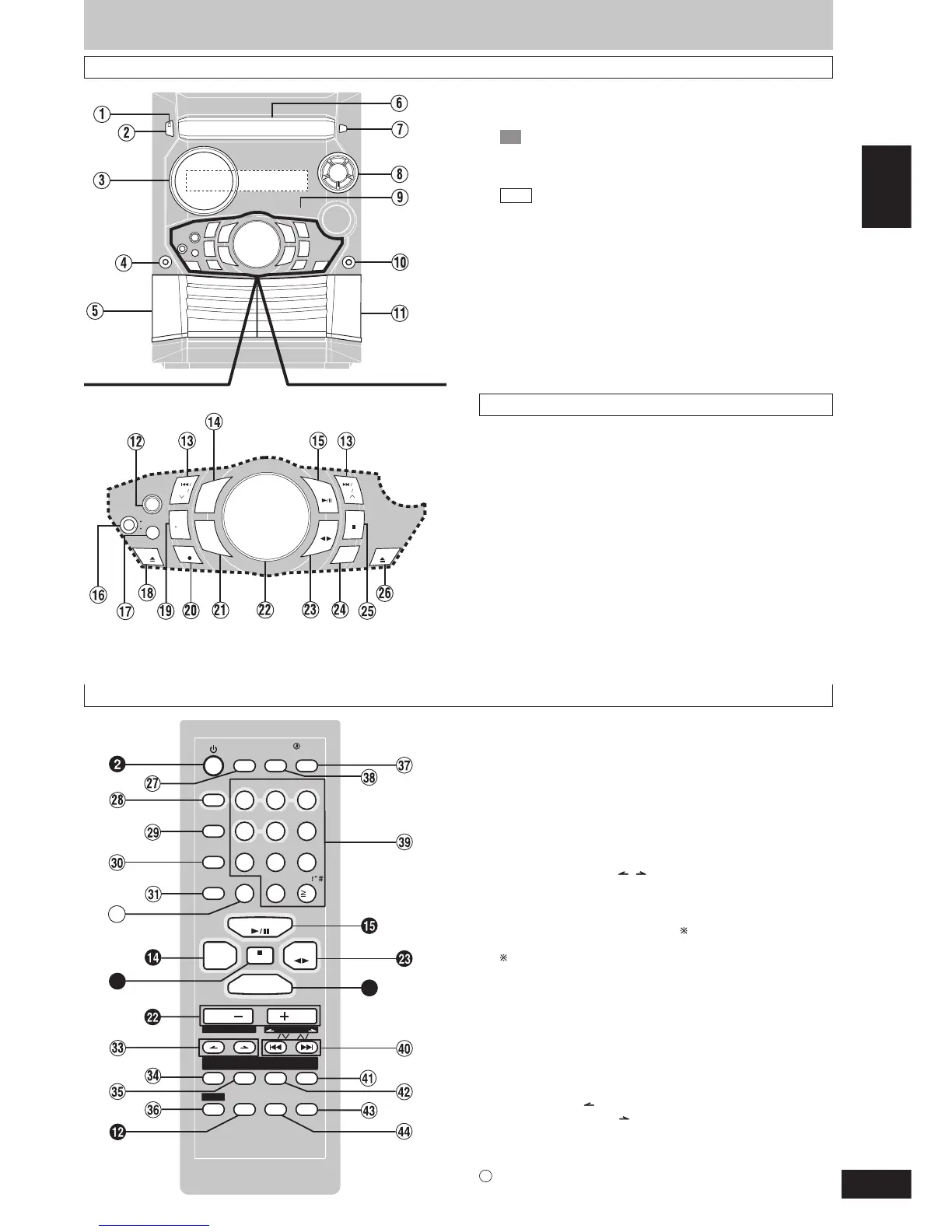

Panasonic SC-AK321 - System Control Interfaces; Main Unit Front Panel Controls; Remote Control Button Functions

RQT7340
7
ENGLISH
1 AC supply indicator [AC IN]
This indicator lights when the unit is connected to the AC mains
supply.
2
PL
Standby/on switch [
ff
ff
f/I, POWER]
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of power.
GCP
Standby/on switch [
ff
ff
f/I]
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of power.
3 Display
4 Microphone jack [MIC] ........................................................... 15
5 Deck 1 cassette holder ......................................................... 14
6 Disc tray
7 CD tray open/close button [c, OPEN/CLOSE] ...................... 8
8 CD direct play buttons [1 ~ 5] ................................................ 8
9 Remote control signal sensor ................................................ 4
! Headphones jack [PHONES] ................................................ 17
! Deck 2 cassette holder ......................................................... 14
Main unit
Center console
Remote control
Buttons such as 2 function in exactly the same way as the
buttons on the main unit.
= Sleep timer + Auto off button [SLEEP, AUTO OFF] ...... 17, 18
> Disc button [DISC] .................................................................. 8
? Program button [PROGRAM] ..................................... 9, 10, 13
@ Play mode select button [PLAY MODE] .................... 8, 9, 13, 14
Use this for selecting CD play mode, tune mode, FM mode, AM
beat proof, tape reverse mode and deck select.
[ Repeat button [REPEAT] ........................................................ 8
\ Delete button [DEL] ..................................................... 9, 10, 12
] Album skip buttons [ , , ALBUM] .................................... 9
^ Intro button [INTRO] ............................................................. 10
_ Marker memory/recall button [MARKER] ............................ 13
{ Shift button [SHIFT]
To use functions labeled in orange :
While pressing [SHIFT], press the corresponding button.
For buttons [AUTO OFF], [CLOCK/TIMER], [rPLAY/REC] and
[KARAOKE]
| Dimmer + Play timer/record timer button
[DIMMER, rPLAY/REC] ...................................................17, 18
} CD display + Clock/timer button
[CD DISP, CLOCK/TIMER] .................................... 8, 12, 17, 18
V Numbered, character buttons
[
XX
XX
X 10, 1–9, 0, A-Z, SPACE!”#] ................................. 8-10, 12, 13
0 CD skip/search, tape fast-forward/rewind,
tune/preset channel select, time adjust, cursor buttons
[g, REW/3, CURSOR,
f, 4/FF, CURSOR ] ............................................ 8-14, 17
1 Enter button [ENTER] ...................................................... 10, 11
2 Title search mode select button [TITLE SEARCH] ................. 11
3 Muting button [MUTING] ....................................................... 17
Preset EQ select + karaoke button
[PRESET EQ, KARAOKE] ..................................................... 15
Front panel controls
# Super sound EQ button [SUPER SOUND EQ] .................... 15
$ CD skip/search, tape fast-forward/rewind,
tune/preset channel select, time adjust buttons
[g/REW/3, f/FF/4] ................................ 8-11, 13, 14, 17
% Tuner/band select button [TUNER, BAND] .......................... 13
& CD play/pause button [:/ J, CD] ........................................... 8
( Microphone volume control [MIC VOL] ............................... 15
) Preset EQ select button [PRESET EQ] .................................15
~ Deck 1 open button [c, DECK 1] ......................................... 14
+ Display, demonstration button [DISP, –DEMO] ........ 8, 12, 17
, Record button [a, REC] ......................................................... 14
- AUX button [AUX] ..................................................................17
. Volume control [VOLUME DOWN, UP] .................................15
/ Tape play/direction button [;:, TAPE] .............................. 14
: Deck select button [DECK 1/2] ..............................................14
; Stop/program clear button [L, STOP] ........................ 8-10, 14
< Deck 2 open button [c, DECK 2] ......................................... 14
VOL
VOL
VOL
VOL
789
0
10
6
SHI
SHI
FT
CLOCK
CL OCK
TIMER
TIM ER
/
/
PL
PL
AY
REC
REC
AU T O OFF
O OFF
INTRO
INTRO
S.
S.
SO
SO
UND EQ
UND EQ
PRE
RE
SET EQ
T EQ
MUT
UT
ING
ING
ENTER
ENTER
MARKER
MA RKE R
TITLE
TITLE
SEARCH
SEARC H
REW FF
PROG
PR O G
R AM
AM
REP
RE P
E AT
AT
PL AY MODE
AY MO D E
DISC
DI S C
SPACE
SPACE
ABC
AB C
DEF
DE F
GHI
GH I
TUV
TU V
WXY
W X Y
ZPQRS
PQ R S
JKL
JK L
MNO
MN O
SLEEP
EEP
CD DISP
CD DI SP
DIMMER
DI MME R
ALBUM
BUM
CURSOR
CURSOR
DEL
DE L
4
5
1
2
3
TAPE
TAPE
CD
CD
AUX
AUX
CLEAR
LE AR
TUNER
TUNER
BAND
ND
KARAOKE
K A R A O K E
25
32
21
DECK 1
DECK 2
CD
TUNER
BAND
AUX
TAPE
STOP
DISP
DEMO
PRESET EQ
FFREW
SUPER SOUND EQ
REC
DECK
1/2
MIC VOL
MAX
MIN
44
