Panasonic SC-ALL70T User Manual

Getting started
Precautions
SQT0935
17

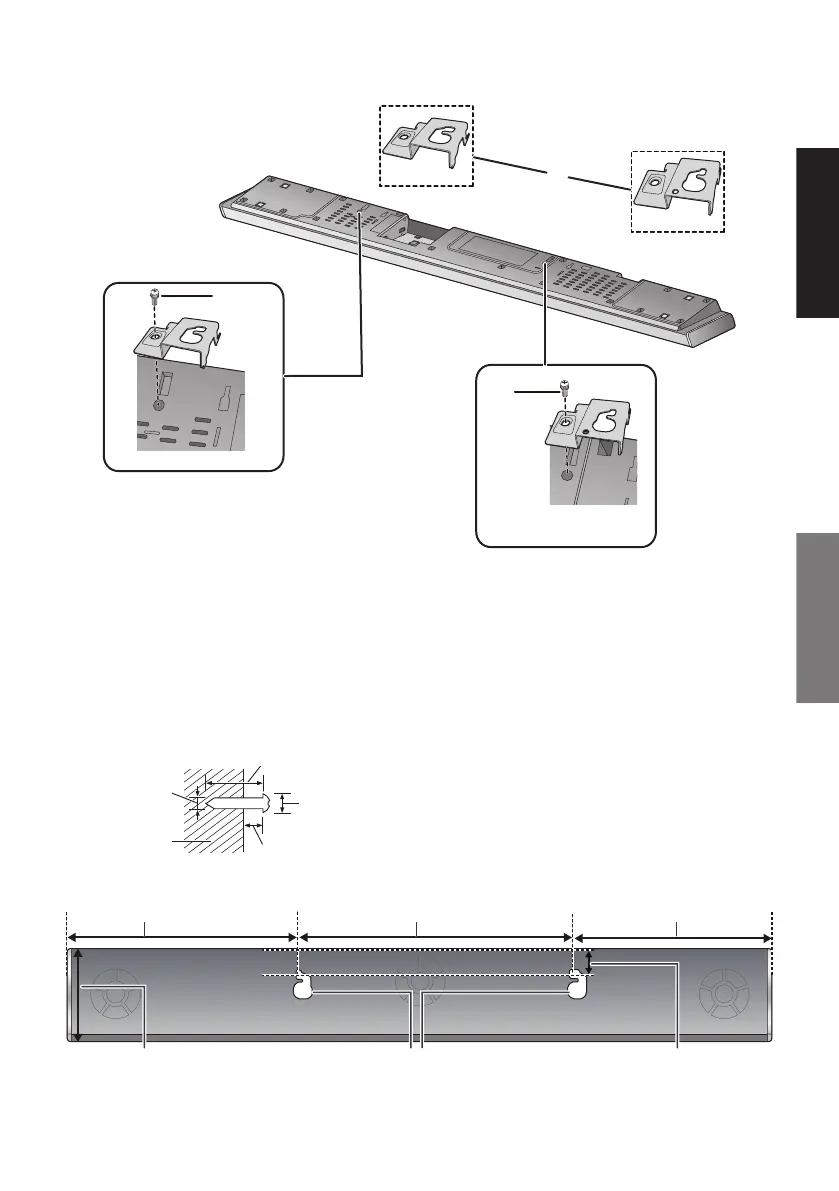

2 Attach the wall mount brackets to the main unit.
A Wall mount bracket (supplied)
B Screw (supplied)
3 Drive a screw into the wall.
≥ Use the measurements indicated below to identify the screwing positions on the wall.
≥ Leave at least 100 mm of space above of the main unit to allow enough space for fitting the main unit.
≥ Position the main unit with at least 50 mm of free space to its right. If not, it may not be possible to access the touch keys.
≥ Be sure to use a level to ensure that both mounting holes are level to each other.
Front view (semi-transparent image)
C At least 30 mm
D ‰4.0 mm
E ‰7.0 mm to ‰9.4 mm
F Wall or pillar
G 2.5 mm to 3.5 mm
H 374 mm I 315 mm J 261 mm
K 41 mm L 125.5 mm M Wall mounting hole








  

SC-ALL70T-SQT0935.book 17 ページ ２０１５年４月２８日 火曜日 午前１０時５分

Panasonic SC-ALL70T Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II, DTS Digital Surround
RMS rated power	350 W
Audio output channels	3.1 channels
Audio Return Channel (ARC)	Yes
Impedance	6 Ω
Woofer diameter	160 mm
Soundbar speaker RMS power	70 W
Total Harmonic Distortion (THD)	10 %
Subwoofer connectivity	Wireless
Receiver included	-
Product color	Black
HDMI in	1
Connectivity technology	Wired & Wireless
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.48 W
Power consumption (typical)	42 W

Weight and Dimensions

Depth	120 mm
Width	950 mm
Height	55 mm
Soundbar weight	2600 g
Subwoofer depth	303 mm
Subwoofer width	180 mm
Subwoofer height	378 mm
Subwoofer weight	5000 g
