Panasonic SC-ALL70T User Manual

8
SQT0935

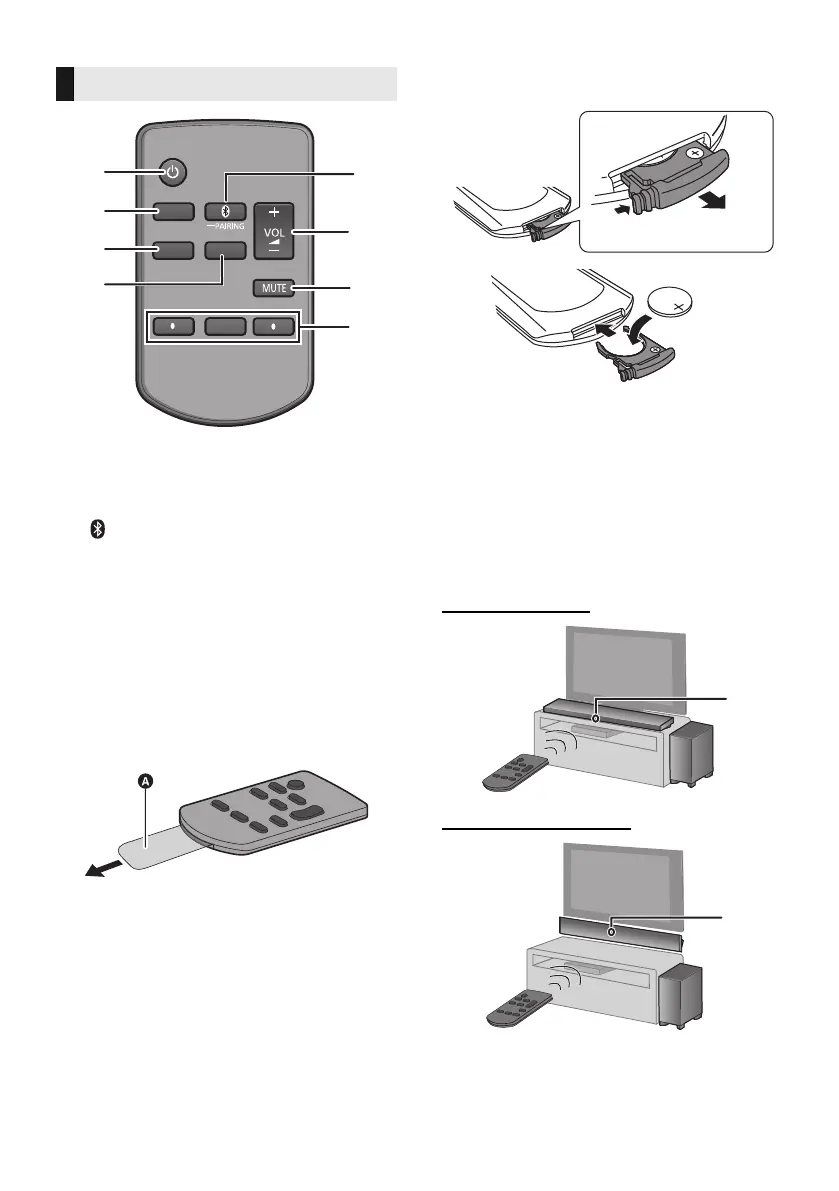

1[Í] Turn the main unit on or off (> 23)
2 [INPUT] Select the input source (> 23)
3 [SETUP] Select the setup menu (> 30)
4 [SOUND] Select the sound menu (> 28)
5 [ -PAIRING]
≥ Select the Bluetooth
®
device as the
source (> 23)
≥ Bluetooth
®
pairing (> 27)
≥ Disconnecting a Bluetooth
®
device (> 27)
6[j VOL i] Adjust the volume of this system
(> 23)
7 [MUTE] Mute the sound (> 23)
8[4][OK][3] Select and confirm the option
∫ Before using for the first time
Remove the insulation sheet A.
≥ Dispose of the insulation sheet responsibly
after removing it.
∫ To replace a button-type battery
Battery type: CR2025 (Lithium battery)
≥ Set the button-type battery with its (i) mark
facing upward.
∫ About remote control signal sensor
The remote control signal sensor is located
on the main unit.
≥ Use the remote control within the correct
operation range.
Distance: Within approx. 7 m directly in front
Angle: Approx. 30
o
left and right
For table top layout
For wall mounting layout
B Remote control signal sensor for table top
layout
C Remote control signal sensor for wall
mounting layout
Remote control
SOUND
INPUT
SETUP


OK
1
5
6
7
8
2
3
4




SC-ALL70T-SQT0935.book 8 ページ ２０１５年４月２８日 火曜日 午前１０時５分

Panasonic SC-ALL70T Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II, DTS Digital Surround
RMS rated power	350 W
Audio output channels	3.1 channels
Audio Return Channel (ARC)	Yes
Impedance	6 Ω
Woofer diameter	160 mm
Soundbar speaker RMS power	70 W
Total Harmonic Distortion (THD)	10 %
Subwoofer connectivity	Wireless
Receiver included	-
Product color	Black
HDMI in	1
Connectivity technology	Wired & Wireless
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.48 W
Power consumption (typical)	42 W

Weight and Dimensions

Depth	120 mm
Width	950 mm
Height	55 mm
Soundbar weight	2600 g
Subwoofer depth	303 mm
Subwoofer width	180 mm
Subwoofer height	378 mm
Subwoofer weight	5000 g
