Before use
SQT0935
7

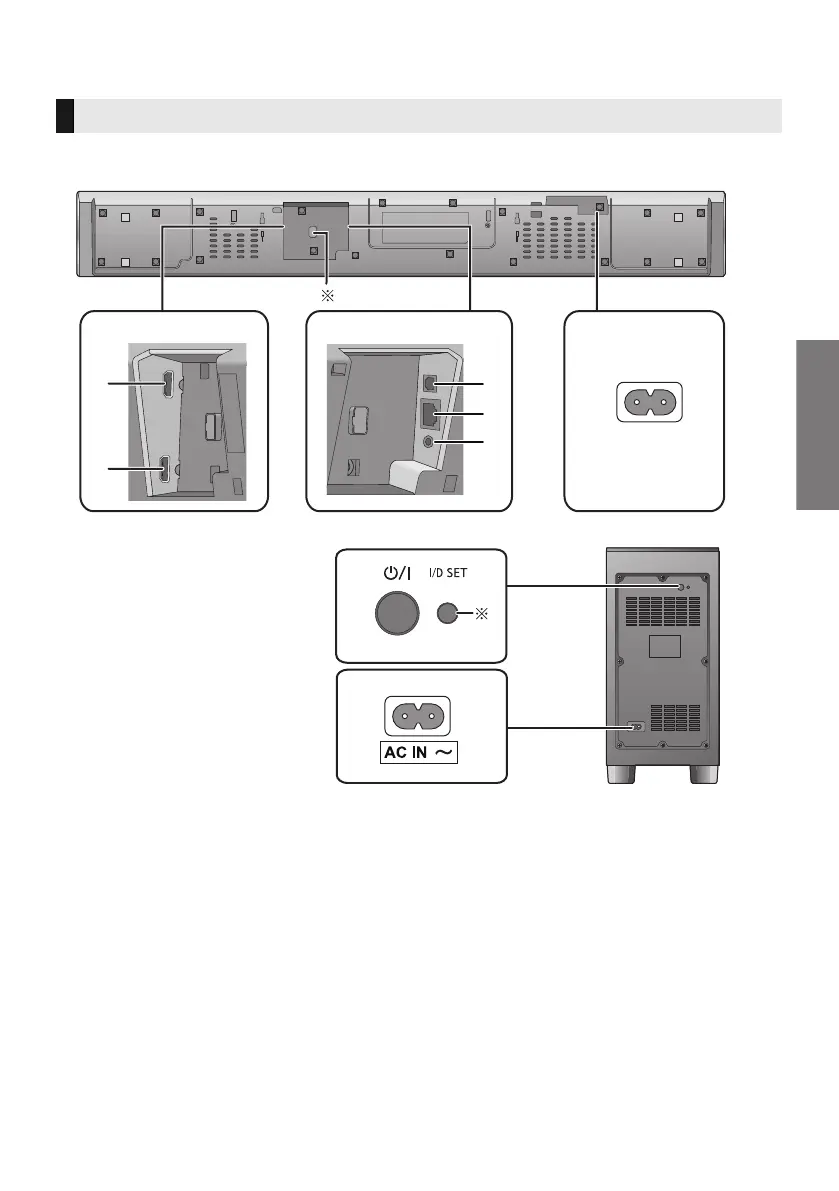

1 HDMI AV OUT (TV (ARC)) terminal (ARC
compatible) (> 9, 10)
2 HDMI AV IN (BD/DVD) terminal (> 11)
3 OPTICAL DIGITAL AUDIO IN (TV) terminal
(> 10)
4 LAN terminal (> 22)
5 Ir SYSTEM terminal (> 11)
6 AC IN terminal (> 12)
7[Í/I] Active subwoofer on/off button (> 19)
§1 USB port (for service use only)
§2 The I/D SET button is only used when the
main unit is not paired with the active
subwoofer. (> 39)
This system (Rear)
3
4
5
1
2
6
6
7
1
2
Main unit
Active subwoofer
SC-ALL70T-SQT0935.book 7 ページ ２０１５年４月２８日 火曜日 午前１０時５分

Panasonic SC-ALL70T Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II, DTS Digital Surround
RMS rated power	350 W
Audio output channels	3.1 channels
Audio Return Channel (ARC)	Yes
Impedance	6 Ω
Woofer diameter	160 mm
Soundbar speaker RMS power	70 W
Total Harmonic Distortion (THD)	10 %
Subwoofer connectivity	Wireless
Receiver included	-
Product color	Black
HDMI in	1
Connectivity technology	Wired & Wireless
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.48 W
Power consumption (typical)	42 W

Weight and Dimensions

Depth	120 mm
Width	950 mm
Height	55 mm
Soundbar weight	2600 g
Subwoofer depth	303 mm
Subwoofer width	180 mm
Subwoofer height	378 mm
Subwoofer weight	5000 g
