Panasonic SC-ALL70T User Manual

6
SQT0935
Control reference guide
1 [ ] NFC touch area (> 27)
2 [Í/I] Standby/on switch (Í/I)
Touch to switch the unit from on to standby
mode or vice versa. In standby mode, the
unit is still consuming a small amount of
power.
3[VOLj][VOLi] Adjust the volume of this
system (> 23)
4 [INPUT] Select the input source (> 23)
5 [ -PAIRING]
≥ Select the Bluetooth
®
device as the
source (> 23)
≥ Bluetooth
®
pairing (> 27)
≥ Disconnecting a Bluetooth
®
device (> 27)
6 Remote control signal sensor for table top
layout (> 8)
7 Remote control signal sensor for wall
mounting layout (> 8)
8 Display
9 WIRELESS LINK indicator (> 19)
§ These switches work just by touching the
marks. Each time you touch the switch,
there will be a beep sound.
The beep sound setting can be changed.
(> 30)

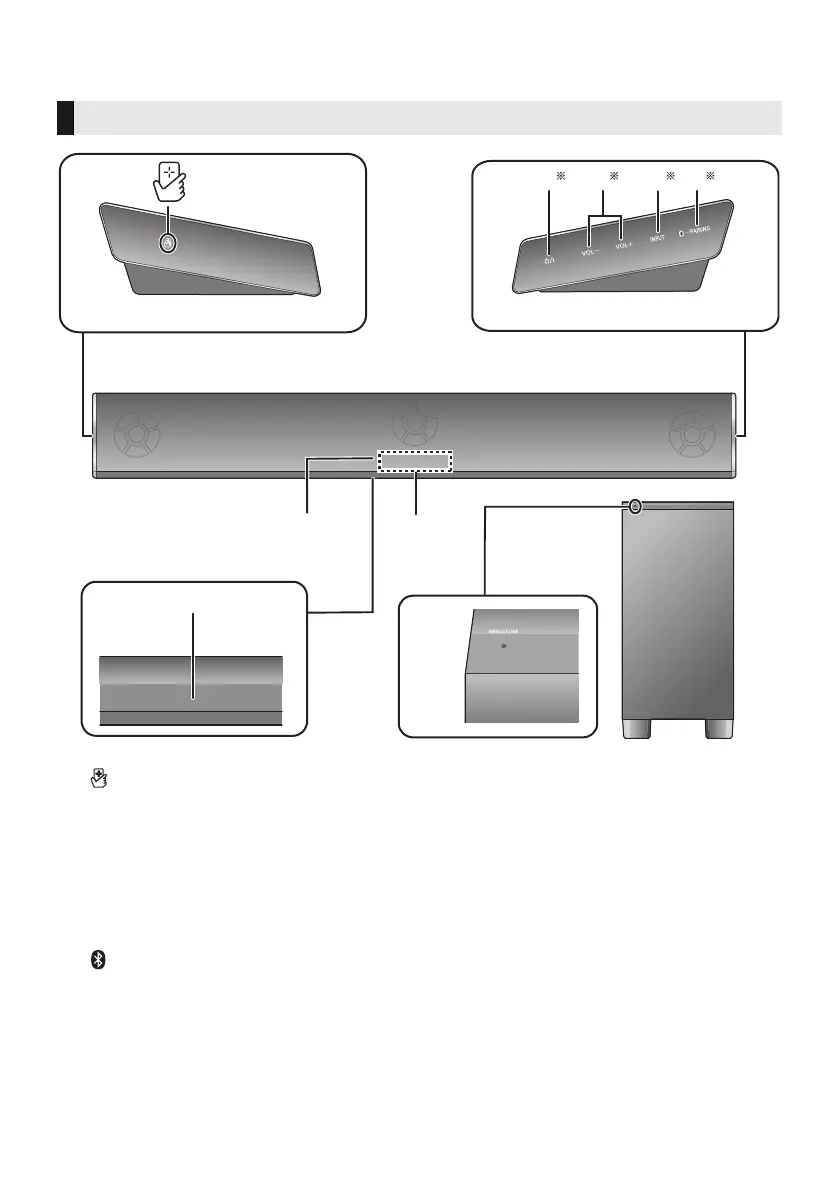

This system (Front)
8
9
7
1
6
3 42 5
Main unit
Active subwoofer
SC-ALL70T-SQT0935.book 6 ページ ２０１５年４月２８日 火曜日 午前１０時５分

Panasonic SC-ALL70T Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II, DTS Digital Surround
RMS rated power	350 W
Audio output channels	3.1 channels
Audio Return Channel (ARC)	Yes
Impedance	6 Ω
Woofer diameter	160 mm
Soundbar speaker RMS power	70 W
Total Harmonic Distortion (THD)	10 %
Subwoofer connectivity	Wireless
Receiver included	-
Product color	Black
HDMI in	1
Connectivity technology	Wired & Wireless
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.48 W
Power consumption (typical)	42 W

Weight and Dimensions

Depth	120 mm
Width	950 mm
Height	55 mm
Soundbar weight	2600 g
Subwoofer depth	303 mm
Subwoofer width	180 mm
Subwoofer height	378 mm
Subwoofer weight	5000 g
