Panasonic SC-BT205 - Assembling the speakers

7
RQT9445

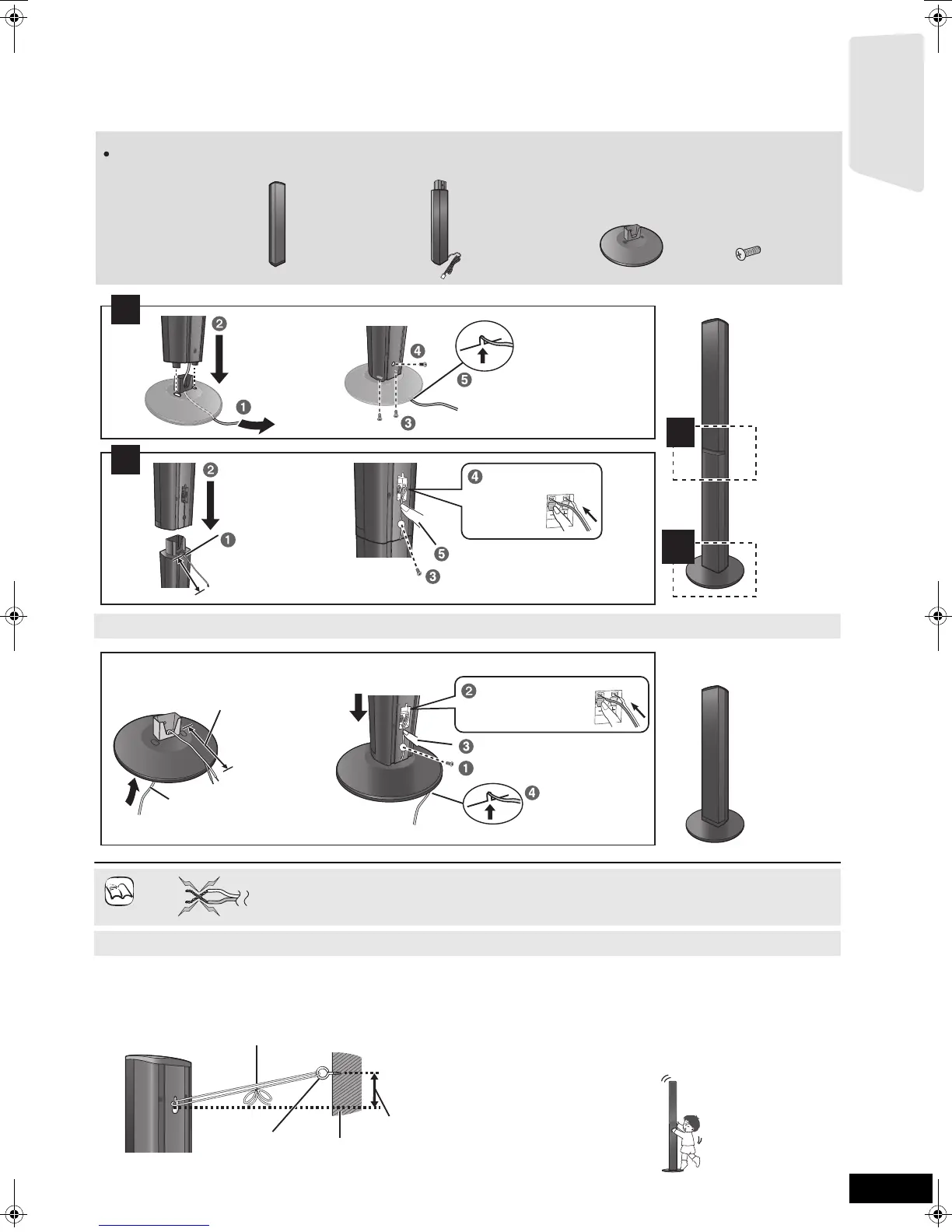

Assembling the speakers [BT205]
Front speakers and Surround speakers
Preparation
≥To prevent damage or scratches, lay down a soft cloth and
perform assembly on it.
≥For assembly, use a Phillips-head screwdriver (not included).
≥For wall mount, refer to page 43.
≥You will need to obtain the appropriate screw eyes to match the walls or pillars to which they are going to be fastened.
≥Consult a qualified housing contractor concerning the appropriate procedure when attaching to a concrete wall or a surface that
may not have strong enough support. Improper attachment may result in damage to the wall or speakers.
e.g.
Caution
≥Do not stand on the base. Be cautious when children are
near.
e.g.
Speaker assembly option
≥Be careful not to cross (short-circuit) or reverse the polarity of the speaker wires as doing so may damage the
speakers.
Preventing the speakers from falling
2 Surround speakers
2 Front speakers
4 Stands
(with cables)
4 Bases 16 Screws
Make sure you have all the indicated components before starting assembly, setup, and connection.
Keep the screws out of reach of children to prevent swallowing.
1
2
2
1
1
Slide into the groove.
Press into the groove.
Tighten securely.
Tighten securely.
Position the cable
between the ridges.
Leave about 120 mm
Insert the wire fully.
: White
: Blue
Push!
Slide into
the groove.
Press into the groove.
Tighten securely.
Insert the wire fully.
: White
: Blue
Push!
Leave about 120 mm
You can remove and use the cable
from the stand. To reattach the
cable, refer to page 43.
Thread the speaker cable
through the base.
Attach the speaker.
NOTE
Do
Not
Screw eye
(not included)
Wall
Approx.
150 mm
Rear of the speaker
String (not included)
Thread from the wall to the speaker and tie tightly.
DO
NOT
Getting started
