Getting started
VQT3Z79
STEP 2: Preparing the speakers
[BT T 790] Front speakers, Surround speakers [BTT490] Front speakers

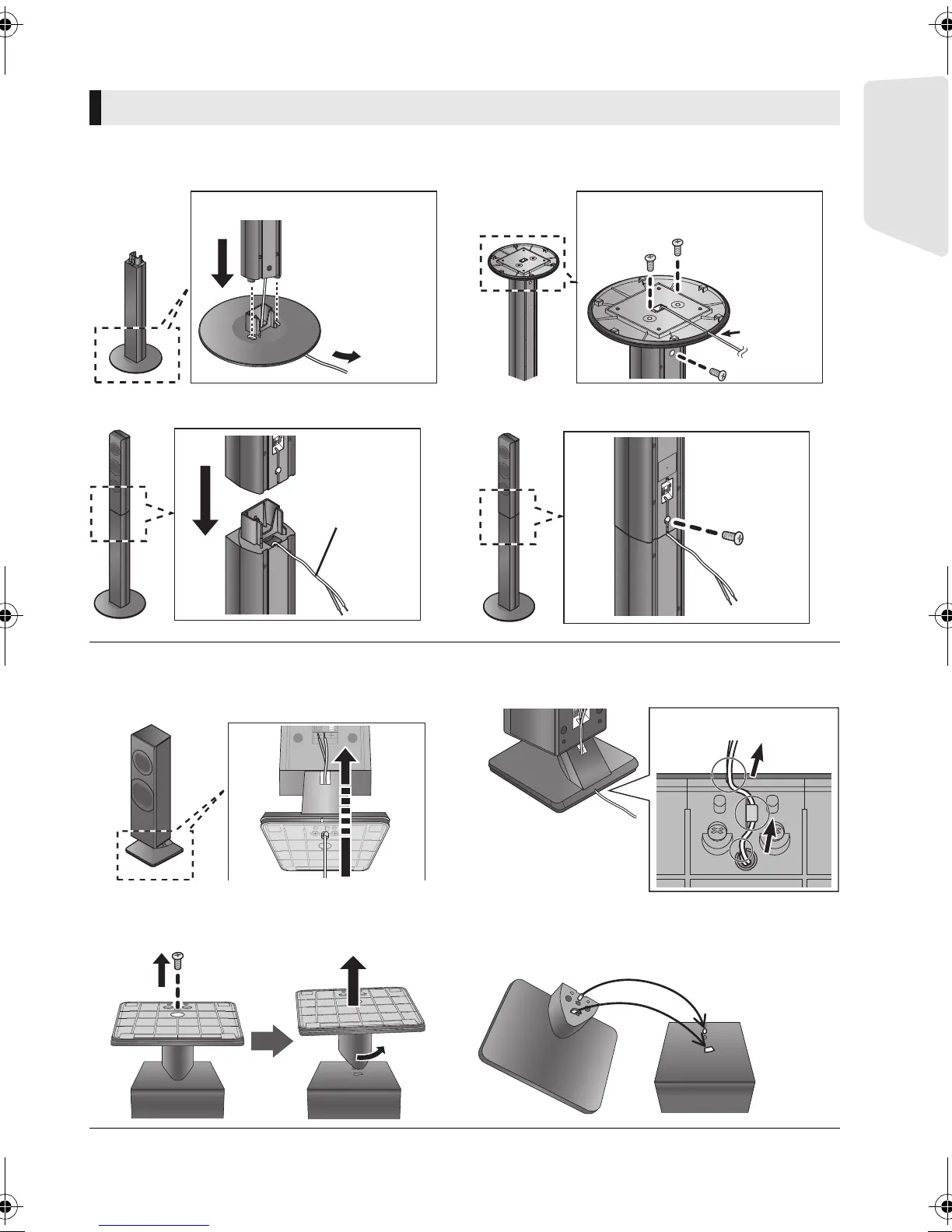

1 Attach the stand to the base. 2 Tighten the 3 screws (supplied) securely.
3 Attach the speaker. 4 Tighten the screw (supplied) securely.
[BT T 583] Front speakers
1 Thread the speaker cable.
≥ Use suitable speaker cables for each speaker type. (> 12)
2 Pull the cable and slide into the groove.
≥ When attaching the speakers to a wall ( > 42)
Remove the base.
≥ When reattaching the base to the speaker
Put the base on the speaker, and then do the
base removal operation in reverse order.

≥ To prevent damage or scratches, lay down a soft cloth and perform assembly on it.
Assembling the front and surround speakers
Thread the speaker
cable through the
base.
Slide the speaker cable into the
groove.
Speaker cable
Back of the base


