≥ Use an FM outdoor antenna if radio reception is poor.

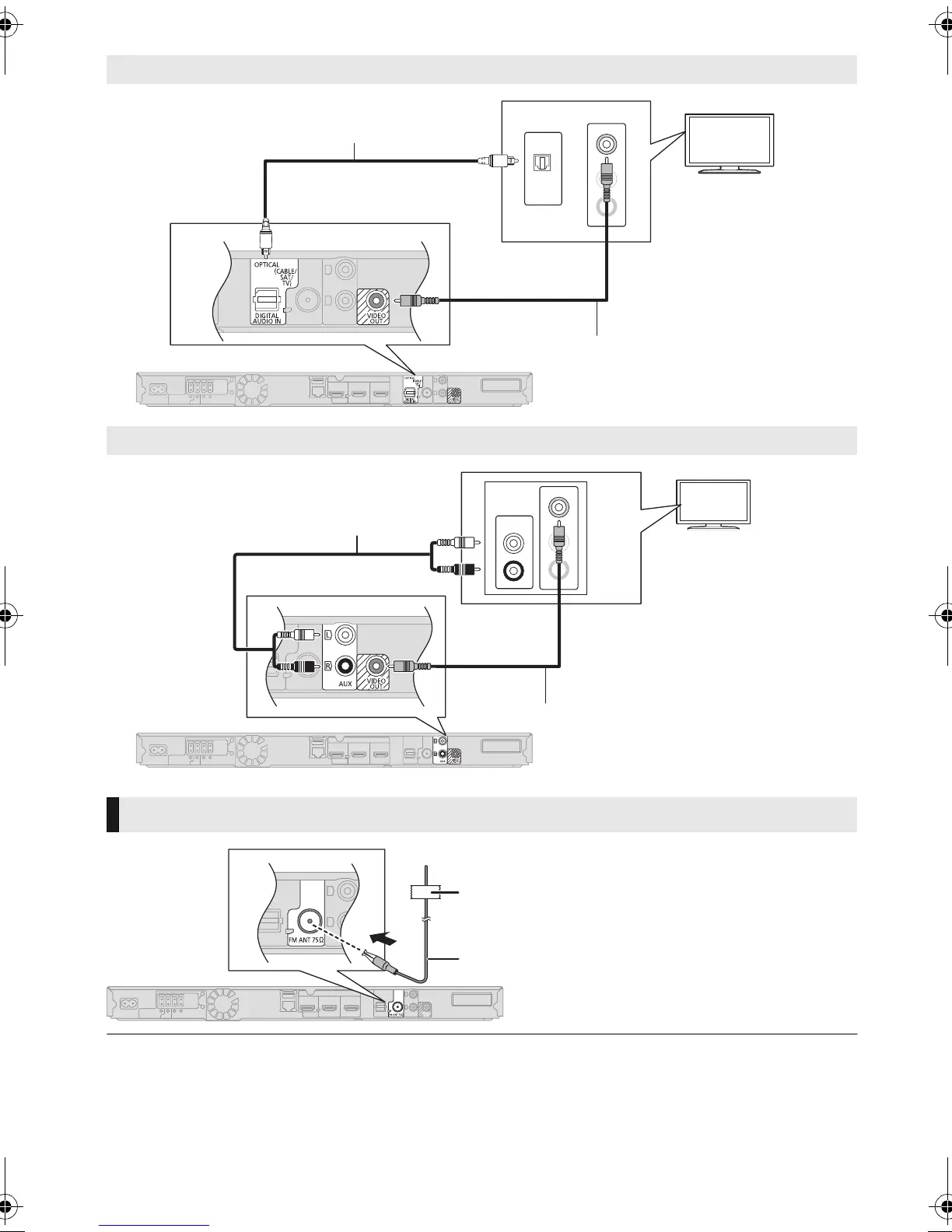

Standard picture and better audio
Standard picture and audio
FM antenna connection
OPTICAL
OUT
L
VIDEO IN
R
AUDIO IN
Optical digital audio cable
(not supplied)
Video cable (supplied)
L
VIDEO IN
R
AUDIO IN
L
R
AUDIO OUT
Audio cable (not supplied)
Video cable (supplied)
75
Affix this end of the antenna to a wall or pillar where
the reception is best.
FM indoor antenna (supplied)
