Advanced
operations
43
VQT3Z79
[BT T 790]
Front speaker, Surround speaker
[BT T 490]
Front speaker
Attach to a wall without the base and the stand.
D 51 mm
E 64 mm
F 350 mm
[BT T 583]
Front speaker
Attach to a wall without the base. (> 11)
G 45 mm
H 78 mm
[BT T 583] [BTT490]
Surround speaker
I 40 mm
J 24 mm

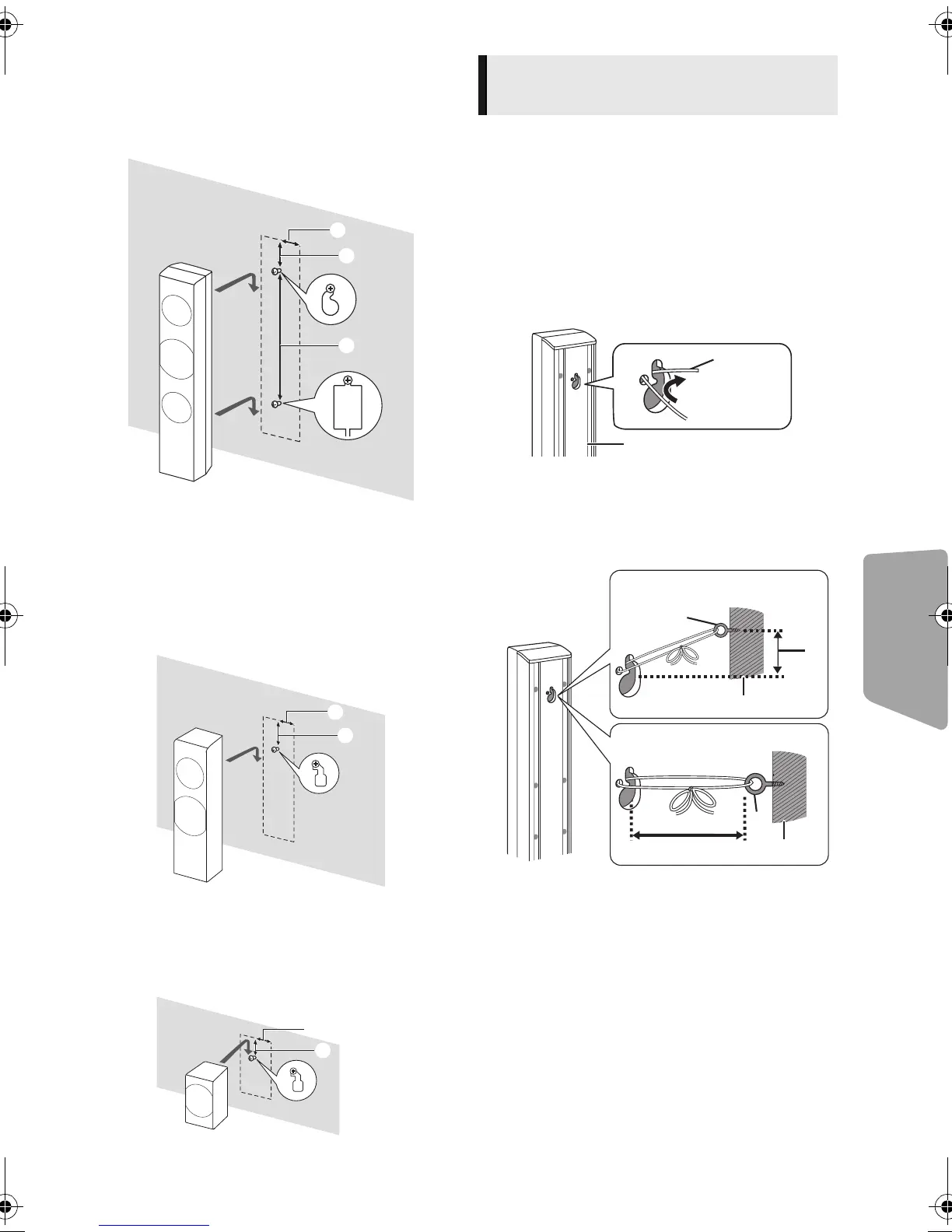

Preventing from falling
[BT T 790] Front speaker, Surround speaker
[BT T 583] [BTT490] Front speaker
Preventing from dropping
Front speaker, Surround speaker, Centre speaker
1 Thread a string to the speaker.
≥ Use a string of less than ‰ 2.0 mm, which is
capable of supporting over 10 kg.
e.g., [B TT790] Front speaker
A String (not supplied)
B Rear of the speaker
2 Thread a string from the wall to the
speaker and tie tightly.
C Screw eye (not supplied)
D Wall
E Approx.150 mm
F Less than 100 mm
Preventing the speakers from
falling or dropping
When mounted on a wall
When placed on the floor
