Panasonic SC-EN9 User Manual

3
RQT7695
• Insert so the poles (+ and –) match those in the remote control.
• Do not use rechargeable type batteries.
The remote control
3
2
1
4
(R6, AA, UM-3)
g
Batteries
Remote control signal sensor
g
Use
Placement
Place this unit in an area with more than 300
mm of vertical space.
The CD lid may become damaged if it cannot
open completely.
Placement of speakers
You can remove the speaker cover netting.
Left and right speakers are exactly the same.
NoteNote
• Keep your speakers at least 10 mm away
from the system for proper ventilation.
• These speakers do not have magnetic
shielding. Do not place them near
televisions, personal computers or other
devices easily influenced by magnetism.
• To avoid damage to the speakers, do not
touch the speaker cones if you have taken
the nets off.

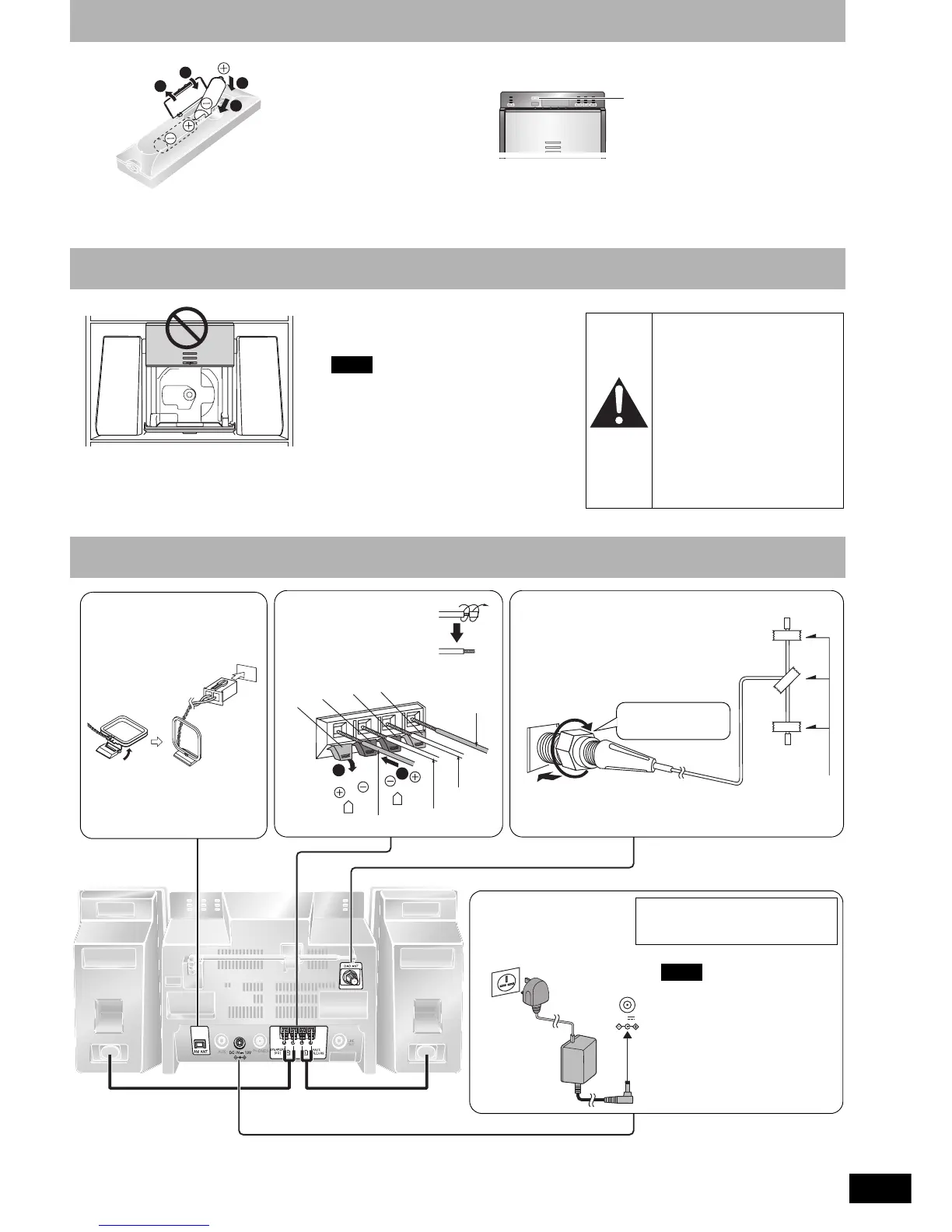

Connections
Caution
• Use the speakers only with the
recommended system. Failure
to do so may lead to damage
to the amplifier and/or the
speakers, and may result in
the risk of fire. Consult a
qualified service person if
damage has occurred or if you
experience a sudden change
in performance.
• Do not attach these speakers
to walls or ceilings.
4 AC adaptor
Connect the AC adaptor only
after all other connections
have been made.
BE SURE TO READ THE CAUTION
FOR THE AC MAINS LEAD ON
PAGE 2 BEFORE CONNECTION.
NoteNote
If the unit is left unplugged for
longer than two weeks, all settings
will revert to the factory settings.
Do the settings again if this
occurs.
2 Speakers
Before connecting, twist and
pull off the speaker cord
ends.
R
L
1
2
Red
Red
Black
Black
Copper (+)
Copper (+)
Silver (–)
Silver (–)
1 AM loop antenna
Stand the antenna up on its base.
A
MA
N
T
13VDC IN
To household
mains socket
&#$#06
Adhesive tape
3 DAB “T” antenna
The cross bar of the T should be
kept firmly stretched.
Find a position with good reception.
There is a function on the unit to check
signal quality (
→ page 8).
For best reception
A DAB outdoor antenna is recommended (
→ page 10).
Be sure to fully
tighten the screw.
• Aim at the sensor, avoiding obstacles, at a maximum range of 7 m
directly in front of the unit.
• Operation can be affected by strong light sources, such as direct
sunlight, and the glass doors on cabinets.

Panasonic SC-EN9 Specifications

Radio Specifications

FM frequency range	87.50–108.00 MHz
AM frequency range	522–1629 kHz
DAB frequency range	5A–13F (174.928–239.200 MHz)

CD Player Specifications

Sampling frequency	44.1 kHz
Decoding	16 bit linear
Beam source wavelength	780 nm

Terminals

AUX input	3.5 mm stereo (27 kΩ)
DAB EXT ANT input	F-Connector (75 Ω)
PHONES output	3.5 mm stereo (32 Ω)

General Specifications

Power supply	AC230-240V, 50Hz
AC adaptor	DC 13 V, 1.5 A
Power consumption	30 W

Speaker Specifications

Full range	8 cm, 3 Ω × 2
Ceramic tweeter	1.52 cm × 2
Speaker dimensions	107 × 230 × 165 mm

Dimensions and Weight

Main unit dimensions	240 × 216 × 170 mm
Mass with speakers	3.0 kg
Mass without speakers	1.6 kg
