Panasonic SC-HTB10 User Manual

12

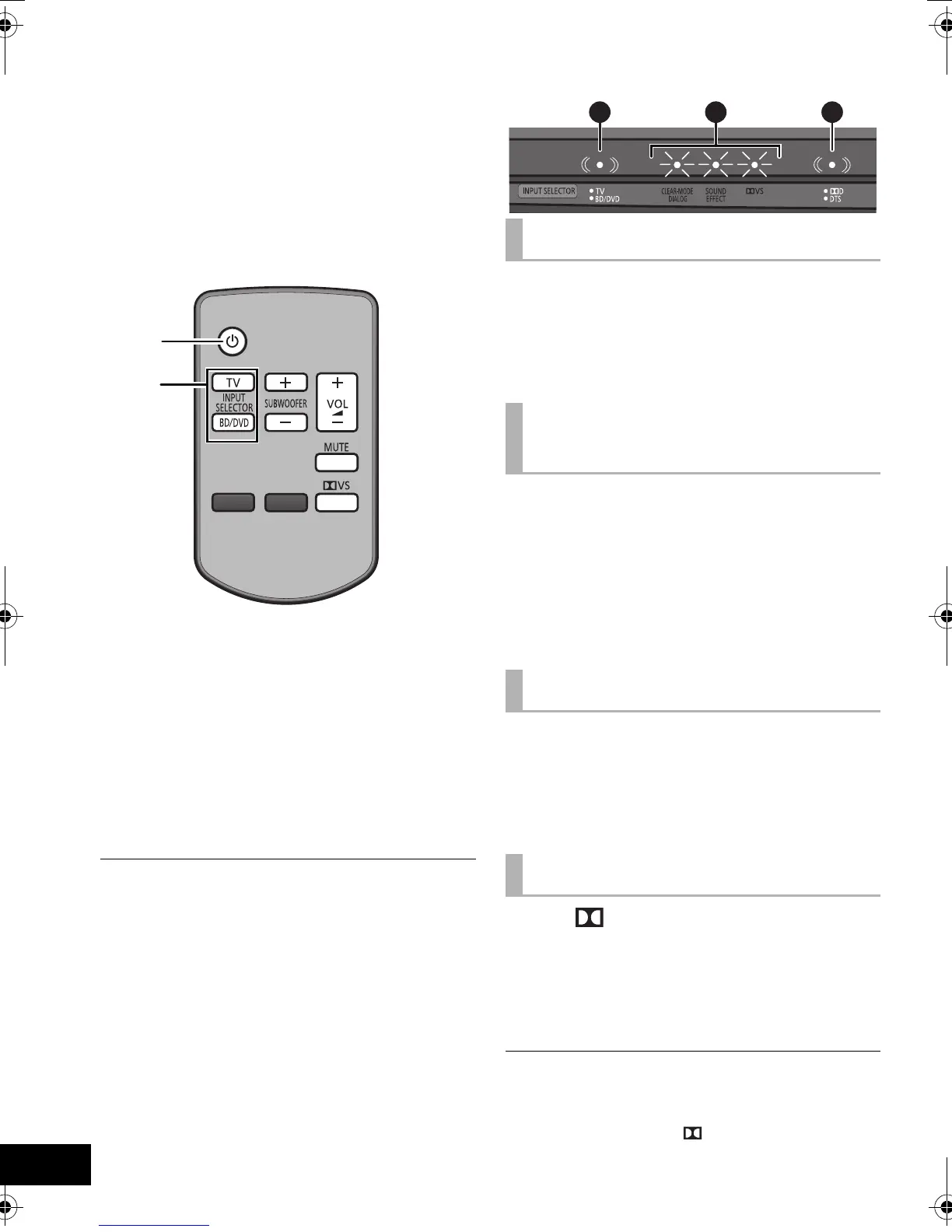

Using this unit
Preparation
≥ Turn on the TV.
≥ If VIERA Link is activated on both the connected
TV and this unit, make sure to change the TV’s
settings for this unit. (> 14, “Linked operations
with the TV (VIERA Link
TM
“HDAVI Control
TM
”)”)
≥ If VIERA Link is not activated or if the TV is not
compatible with VIERA Link, reduce the volume
of the TV to its minimum.
1 Press [Í] to turn on this unit.
≥ The current status (audio source, active
audio effects and audio format) is displayed.
The audio effects and audio format indicator
will turn off after 4 sec.
2 Press [TV] or [BD/DVD] to select
the audio source. (> right)
≥ If you have selected [BD/DVD], make sure to
select the TV’s input channel for this unit and
start the playback.

≥ Before turning off this unit, be sure to reduce the volume.
≥ Even if this unit is turned off, the device connected to the
HDMI AV IN terminal will continue to output audio or video to
the TV.
A The selected audio source is indicated
Green:
When the TV is the audio source
Red:
When the device connected to the HDMI AV IN
terminal is the audio source
Press [i VOL j] to adjust the volume
of the speakers.
Press [i SUBWOOFER j] to adjust
the subwoofer level.
B The indicators blink from left to right (i) or from
right to left (s).
≥ The indicators will not blink when it has reached
the maximum or minimum.
Press [MUTE].
B The indicators blink simultaneously while
muting.
≥ To cancel, press the button again or adjust the
volume.
≥ Muting is canceled if this unit is turned off.
Press [ VS] to indicate the audio
format.
C The current audio format is indicated for 4 sec.
Green: Dolby Digital
Red: DTS
Off: PCM or LPCM

≥ The audio format status is also indicated for 4 sec if the audio
format on the selected source (TV, Blu-ray Disc/DVD Player,
etc.) is changed.
≥ The Dolby Virtual Speaker ( VS) audio effect status is also
indicated. (> 13)
1
2
Audio source indicator
To adjust the volume/
subwoofer level
To mute the sound
Audio format indicator
A CB
SCHTB50_10PPC_RQTX1165-P.book Page 12 Monday, May 10, 2010 11:58 AM

Panasonic SC-HTB10 Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II, DTS
RMS rated power	120 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Impedance	4 Ω
Soundbar speaker RMS power	60 W
Total Harmonic Distortion (THD)	10 %
Receiver included	-
FM radio	No
Product color	Black
Apple docking compatibility	Not supported
Soundbar dimensions (WxDxH)	800 x 58 x 108 mm
Digital audio optical in	1

Weight and Dimensions

Soundbar weight	3200 g
