Control reference guide
1 Standby/on switch (POWER Í/I)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Adjust the Volume of this unit
3 Select the source
“TV” !# “BD/DVD”
4 LED status indicators (> 12, 13)
A Audio source indicator
B Clear-mode Dialog indicator
C Sound Effect indicator
D Dolby Virtual Speaker indicator
E Audio format indicator
5 Remote control signal sensor
Remote control operation range
Distance:
Within approx. 7 m (23 ft.)
Angle:
Approx. 10
o
up and 30
o
down, 30
o
left and
right
1 AC IN terminal (> 11)
2 Ir SYSTEM terminal
(Only for use with the optional IR Blaster. (> 8))
3 HDMI AV OUT terminal (> 10)
4 OPTICAL DIGITAL AUDIO IN terminal (> 10)
5 HDMI AV IN terminal (> 11)

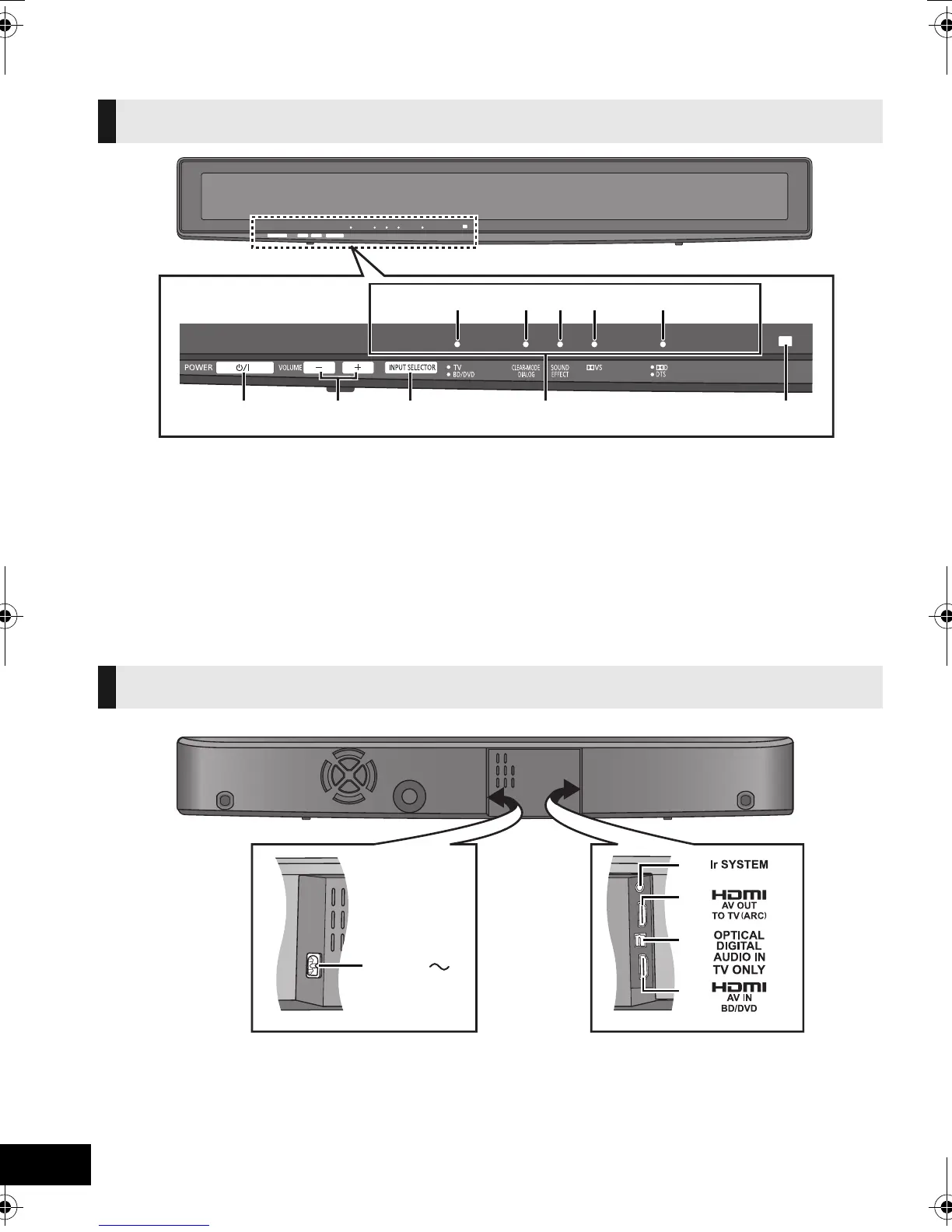

Main unit (Front)
123 54
   
Main unit (Rear)
1
AC IN
2
3
4
5
SCHTB50_10PPC_RQTX1165-P.book Page 6 Monday, May 10, 2010 11:58 AM

Panasonic SC-HTB10 Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II, DTS
RMS rated power	120 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Impedance	4 Ω
Soundbar speaker RMS power	60 W
Total Harmonic Distortion (THD)	10 %
Receiver included	-
FM radio	No
Product color	Black
Apple docking compatibility	Not supported
Soundbar dimensions (WxDxH)	800 x 58 x 108 mm
Digital audio optical in	1

Weight and Dimensions

Soundbar weight	3200 g
