Installation Instructions

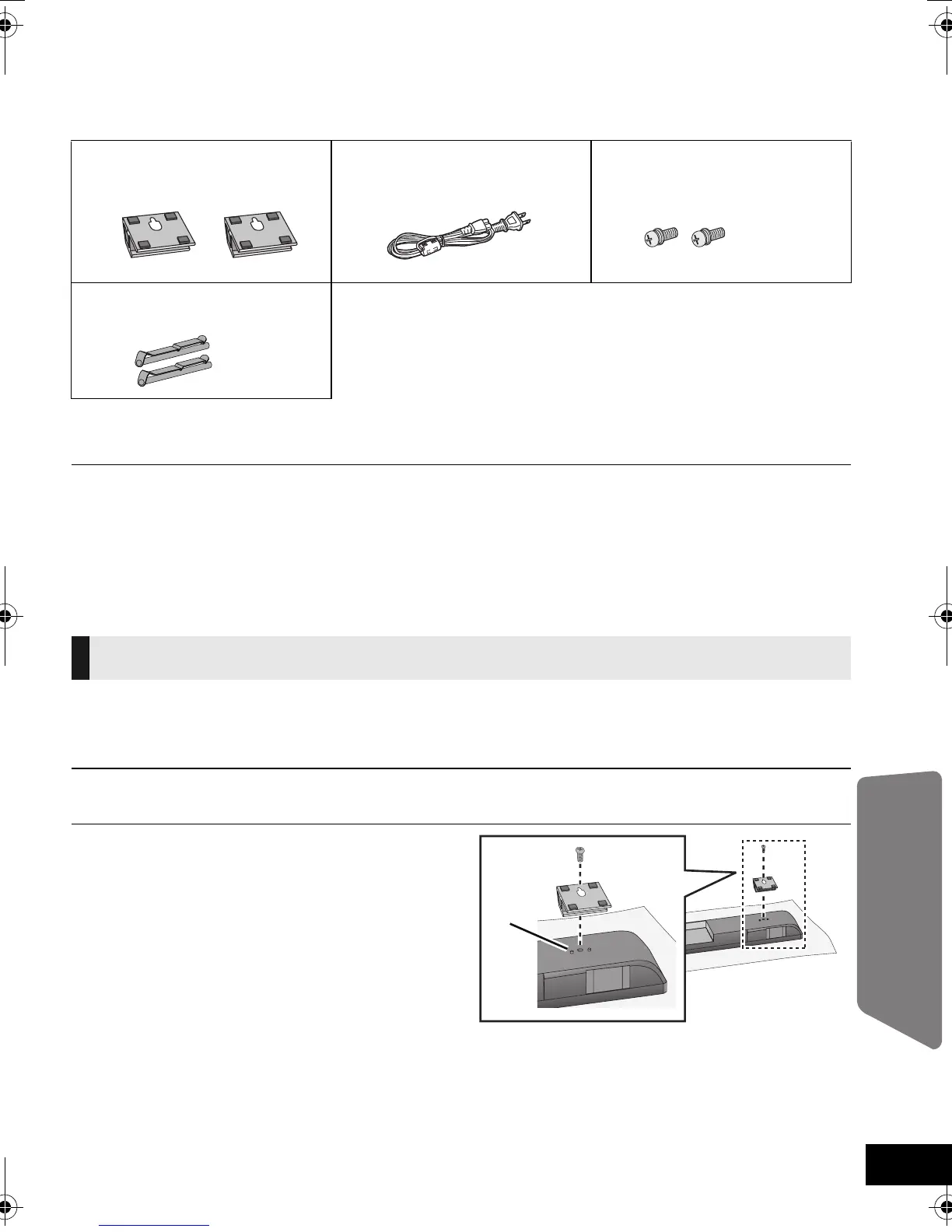

Components
The images shown in this installation instructions are for illustrative purpose only.
Check the supplied components before starting.
Commercially available components (not supplied)
≥ Screws for wall mounting
≥ Fall prevention cord
≥ Screws to attach fall prevention cord to wall
≥ Use commercially available screws with a nominal diameter of 4.0 mm (
5
/32q) that are suited to the wall material (wood, steel
frame, concrete etc.) you are attaching the wall mount brackets to.
≥ Product numbers correct as of April 2010. These may be subject to change.
Installation procedure
Never use any other method than specified to install
Preparation
≥ To prevent damage or scratches, lay down a soft
cloth and perform the assembly on it.
≥ Keep the screws out of reach of children to
prevent swallowing.
≥ Do not hold this unit in one hand to avoid injury by dropping this unit when carrying.
1 On the rear of the unit:
Place the wall mount bracket by
aligning the holes in the wall mount
bracket with the projecting parts A.
2 Screw the wall mount bracket firmly
into place.
≥Screw tightening torque: 80 N0cm (17.98 lbf-ft) to
120 N0cm (26.98 lbf-ft).
≥Repeat the steps above when installing the second
wall mount bracket.
∏ 2 Wall mount brackets
(RYQX1034-K)
∏ 1 AC power supply cord
(RFAX1027)
∏ 2 Screws
(RYQX1042-1)
∏ 2 Lock pins
(RYQX1048)
Attaching the wall mount brackets
