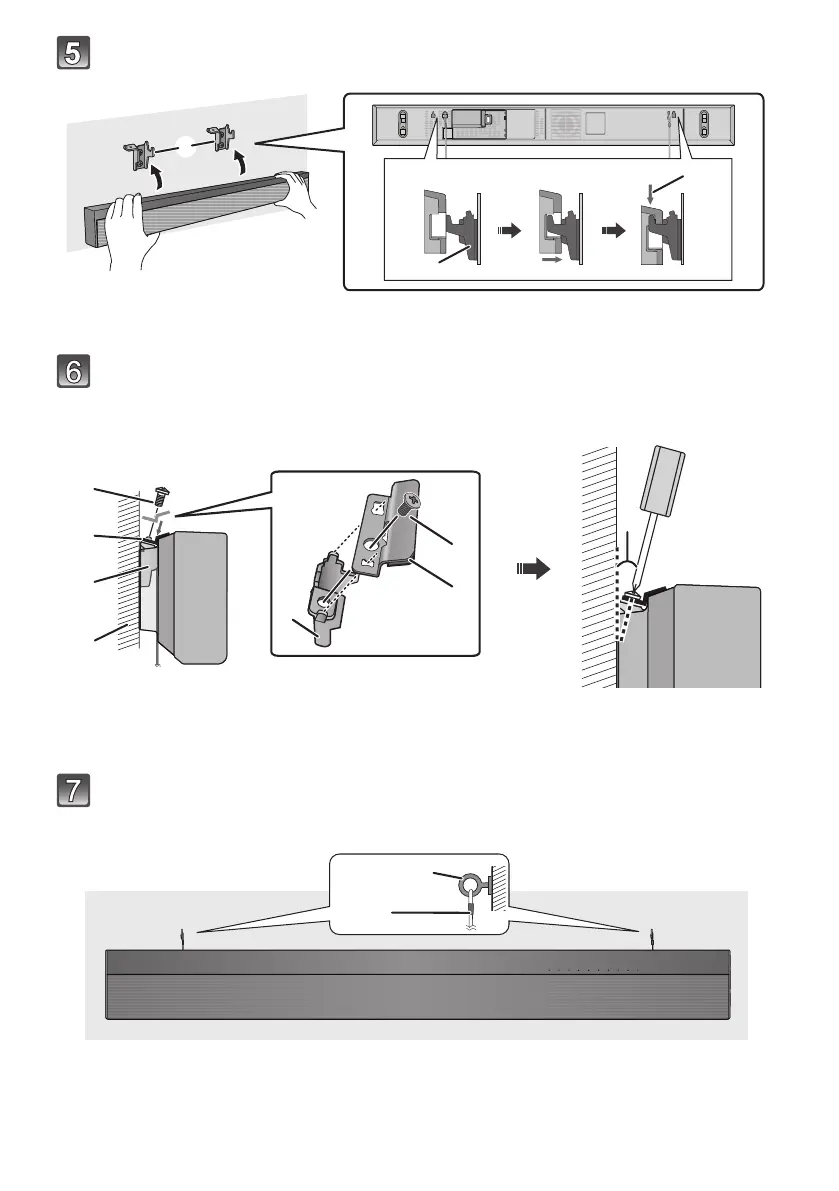

Attach the main unit to the wall mount brackets.
Screw the safety holder onto the wall mount brackets.
≥ Screw tightening torque: 80 N0cm (0.6 lbf0ft) to 120 N0cm (0.9 lbf0ft).
≥ The safety holders are designed to prevent the main unit from falling off the wall mount bracket.
Secure the cord to the wall.
≥ Make sure that the slack of the cord is minimal.
A Wall mount bracket (supplied)
B Gently move the main unit down onto the wall mount bracket.
C Screw without washer (supplied)
D Safety holder (supplied)
E Wall mount bracket (supplied)
F Wall
G About 15
o
≥ Tilt about 15
o
from the wall and tighten the screw.
H Screw eye
I Cord













SC-HTB170P_RQT9841-P.book Page 14 Friday, January 25, 2013 2:48 PM

Panasonic SC-HTB170 Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II, DTS
RMS rated power	120 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Impedance	6 Ω
Woofer diameter	80 mm
Number of woofer drivers	2
Soundbar speaker RMS power	60 W
Total Harmonic Distortion (THD)	10 %
Subwoofer type	Active subwoofer
Receiver included	No
Number of products included	1 pc(s)
Product color	Black
Recommended usage	TV
Consumer Electronics Control (CEC)	VIERA Link
Apple docking compatibility	Not supported
Soundbar dimensions (WxDxH)	950 x 105 x 66 mm
Connectivity technology	Wired
Digital audio optical in	1
Power source	AC
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.4 W
Power consumption (typical)	22 W

Weight and Dimensions

Soundbar weight	3400 g
