Panasonic SC-HTB170 User Guide

Getting started
RQT9841
15
Precautions
Step 3 Connections
≥Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC power supply cord until all other connections are completed.
∫ HDMI
≥ The HDMI connection supports VIERA Link “HDAVI Control” (> 22) when used with a compatible Panasonic TV.
≥ Use the ARC compatible High Speed HDMI Cables. Non-HDMI-compliant cables cannot be utilised.
≥ It is recommended that you use Panasonic’s HDMI cable.
Verify if the TV’s HDMI terminal is labelled “HDMI (ARC)”.
∫ What is ARC?
ARC is an abbreviation of Audio Return Channel, also known as HDMI ARC. It refers to one of the HDMI functions. When you
connect the main unit to the terminal labelled “HDMI (ARC)” on the TV, the optical digital audio cable that is usually required in
order to listen to sound from a TV is no longer required, and TV pictures and sound can be enjoyed with a single HDMI cable.
Make the connection.
A HDMI cable
A HDMI cable B Optical digital audio cable
≥ When you use the optical digital audio cable, insert the tip
correctly into the terminal.

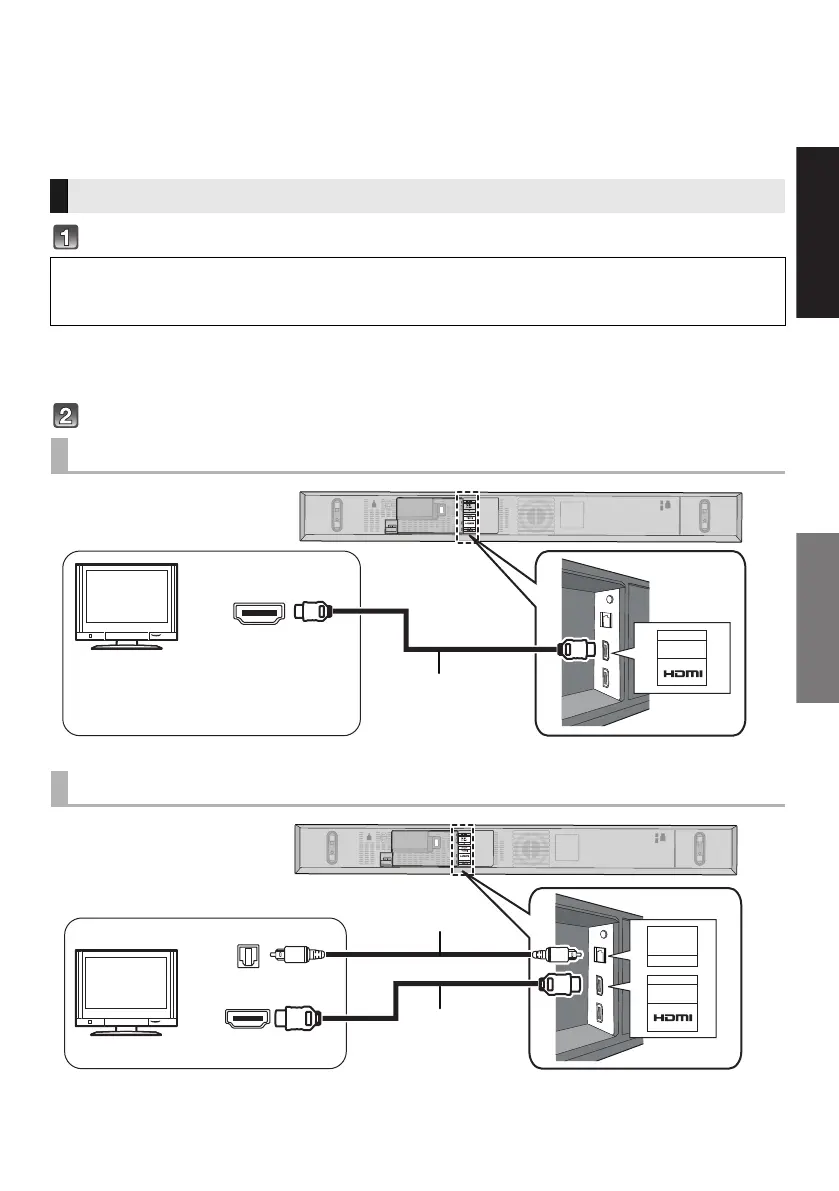

Connection with the TV
Connection differs depending on the label printed next to the HDMI terminal.
Labelled “HDMI (ARC)”: Connection [A]
Not Labelled “HDMI (ARC)”: Connection [B]
[A] Labelled “HDMI (ARC)”
[B] Not labelled “HDMI (ARC)”
HDMI IN (ARC)
AV OUT
TV(ARC)

Be sure to connect to the TV’s ARC
compatible terminal. (Refer to the
operating instructions for the TV.)
TV
HDMI IN
OPTICAL
OUT
TV
OPTICAL
DIGITAL
AUDIO IN
AV OUT
TV(ARC)


TV
SC-HTB170P_RQT9841-P.book Page 15 Friday, January 25, 2013 2:48 PM

Panasonic SC-HTB170 Specifications

General

Audio decoders	Dolby Digital, Dolby Pro Logic II, DTS
RMS rated power	120 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Impedance	6 Ω
Woofer diameter	80 mm
Number of woofer drivers	2
Soundbar speaker RMS power	60 W
Total Harmonic Distortion (THD)	10 %
Subwoofer type	Active subwoofer
Receiver included	No
Number of products included	1 pc(s)
Product color	Black
Recommended usage	TV
Consumer Electronics Control (CEC)	VIERA Link
Apple docking compatibility	Not supported
Soundbar dimensions (WxDxH)	950 x 105 x 66 mm
Connectivity technology	Wired
Digital audio optical in	1
Power source	AC
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.4 W
Power consumption (typical)	22 W

Weight and Dimensions

Soundbar weight	3400 g
