6
RQT9841

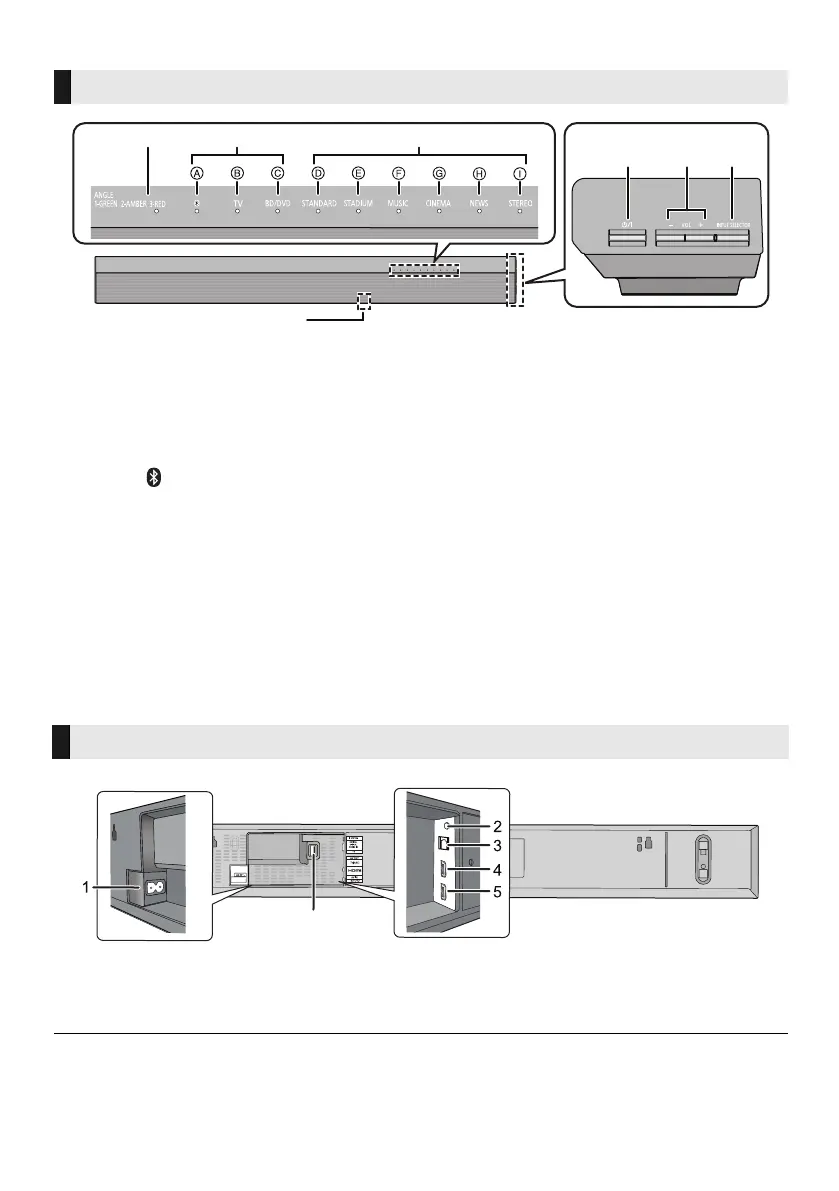

Control reference guide
1 Standby/on switch (Í/I)
Press to switch the unit from on to standby mode or
vice versa. In standby mode, the unit is still
consuming a small amount of power.
2 Adjust the volume of this system
3 Select the input source
“TV” ------------# “BD/DVD”
^-------- “”(------}
4 Speaker angle indicator (> 8)
Angle 1: 0
o
tilt
Speaker angle indicator lights green
Angle 2: Tilted at 30
o
Speaker angle indicator lights amber
Angle 3: Tilted at 80
o
/90
o
Speaker angle indicator lights red
5 Input selector indicators
§1
A Bluetooth
®
indicator
Lights blue when the Bluetooth
®
device is the
audio source
B TV indicator
Lights green when the TV is the audio source
C BD/DVD indicator
Lights amber when the device connected to the
BD/DVD terminal is the audio source
6 Sound mode indicators
§1
D STANDARD indicator
Lights when STANDARD is the current sound
mode
E STADIUM indicator
§2
Lights when STADIUM is the current sound
mode
F MUSIC indicator
§2
Lights when MUSIC is the current sound mode
G CINEMA indicator
Lights when CINEMA is the current sound mode
H NEWS indicator
Lights when NEWS is the current sound mode
I STEREO indicator
Lights when STEREO is the current sound mode
7 Remote control signal sensor (> 7)
1 AC IN terminal (> 18)
2 Ir SYSTEM terminal (> 17)
3 OPTICAL DIGITAL AUDIO IN (TV) terminal
(> 15)
4 HDMI OUT terminal (ARC compatible) (> 15)
5 HDMI IN terminal (> 16)
6 USB port (for service use only)
§1 The indicators will also blink in various conditions. (> 29)
§2 The indicator blinks for 5 sec when the main unit detects an audio format.
To manually verify the current audio format and the corresponding indicators, refer to page 23
(Audio format indicator).
This system (Front)
This system (Rear)
6
