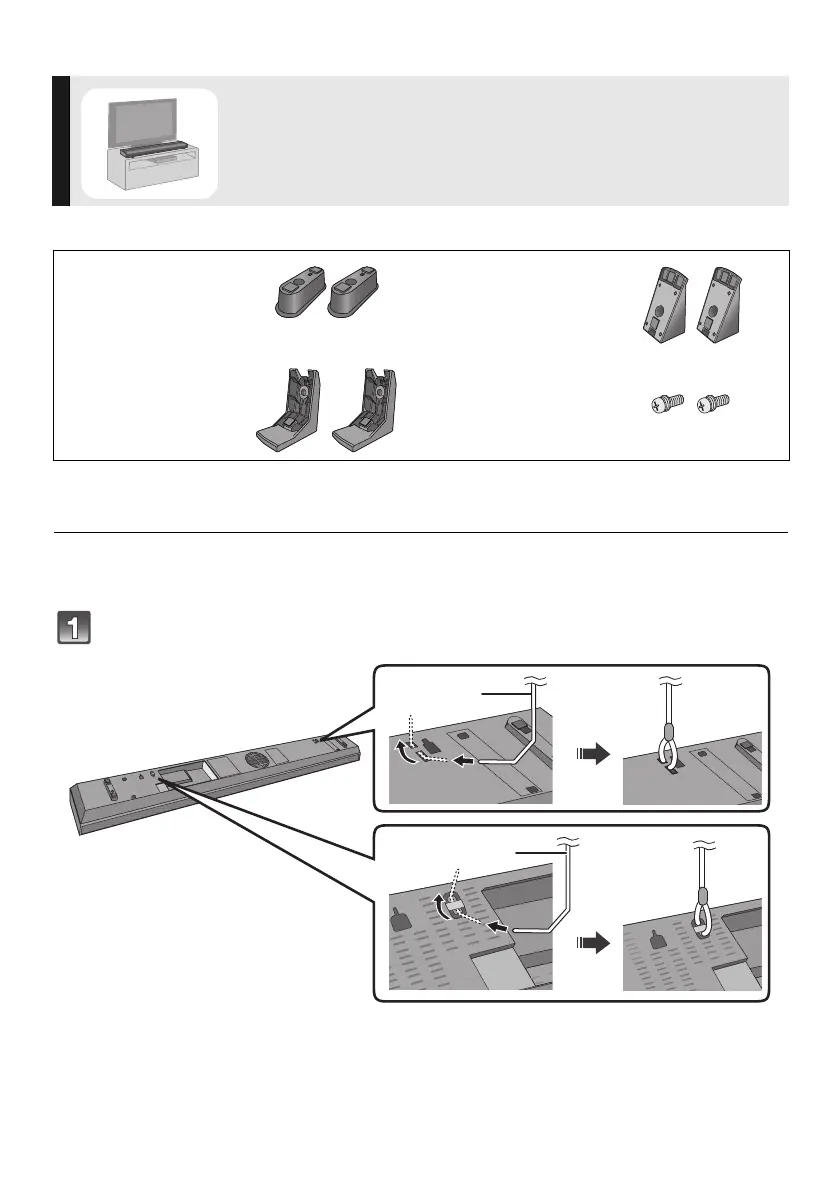

Step 2 Placement
Supplied accessories
Additionally required accessories (commercially available)
≥Fall prevention cord ......................................................................................................................... k 2
≥Screw eyes (to attach the fall prevention cord)................................................................................ k 2
≥ Use commercially available screws that are capable of supporting over 33 kg (72.8 lbs).
≥ Use a cord that is capable of supporting over 33 kg (72.8 lbs) (with a diameter of about 1.5 mm (
1
/16q)).
Attach the cord to the main unit.
When placing the main unit in a rack or on a
table
≥ Place the main unit on a flat and horizontal surface.
∏ 2 Basic stands
∏ 2 30
o
stands
∏ 2 80
o
stands
∏ 2 Screws with
washer
A Cord
§
§ If the cord cannot be threaded through the holes, try bending the cord in 2 locations,
about 5 mm (
3
/16q) apart from the tip, at an angle of 45
o
(as
illustrated above).
