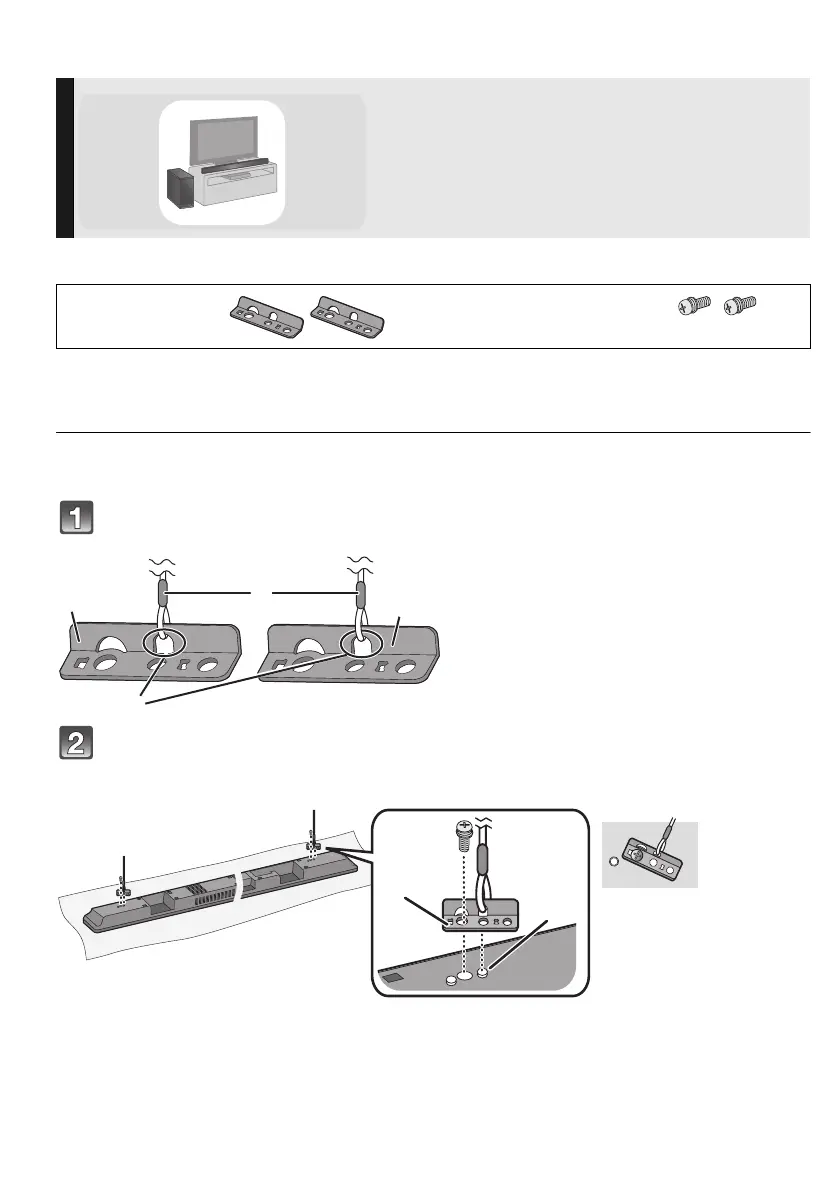

Step 2 Placement
Supplied components
Commercially available components (not supplied)
≥Fall prevention cord............................................................................................................................ k 2
≥Screw eyes (to attach the fall prevention cord) .................................................................................. k 2
≥ Use commercially available screws that are capable of supporting over 33 kg.
≥ Use a cord that is capable of supporting over 33 kg (with a diameter of about 1.5 mm).
Attach the cord to the safety holder.
Attach the safety holder to the main unit.
≥ Screw tightening torque: 80 N0cm to 120 N0cm.
When placing the main unit in a
rack or on a table
∏ 2 Safety holders ∏ 2 Screws with washer
A Safety holder (supplied)
B Cord
C Thread the cord through the holes.
Refer to the operating instructions of the
cord for details.
D Screw with washer (supplied)
≥ Tighten securely.
E Safety holder (supplied)
F Projecting part
≥ The safety holder is placed
diagonally.
