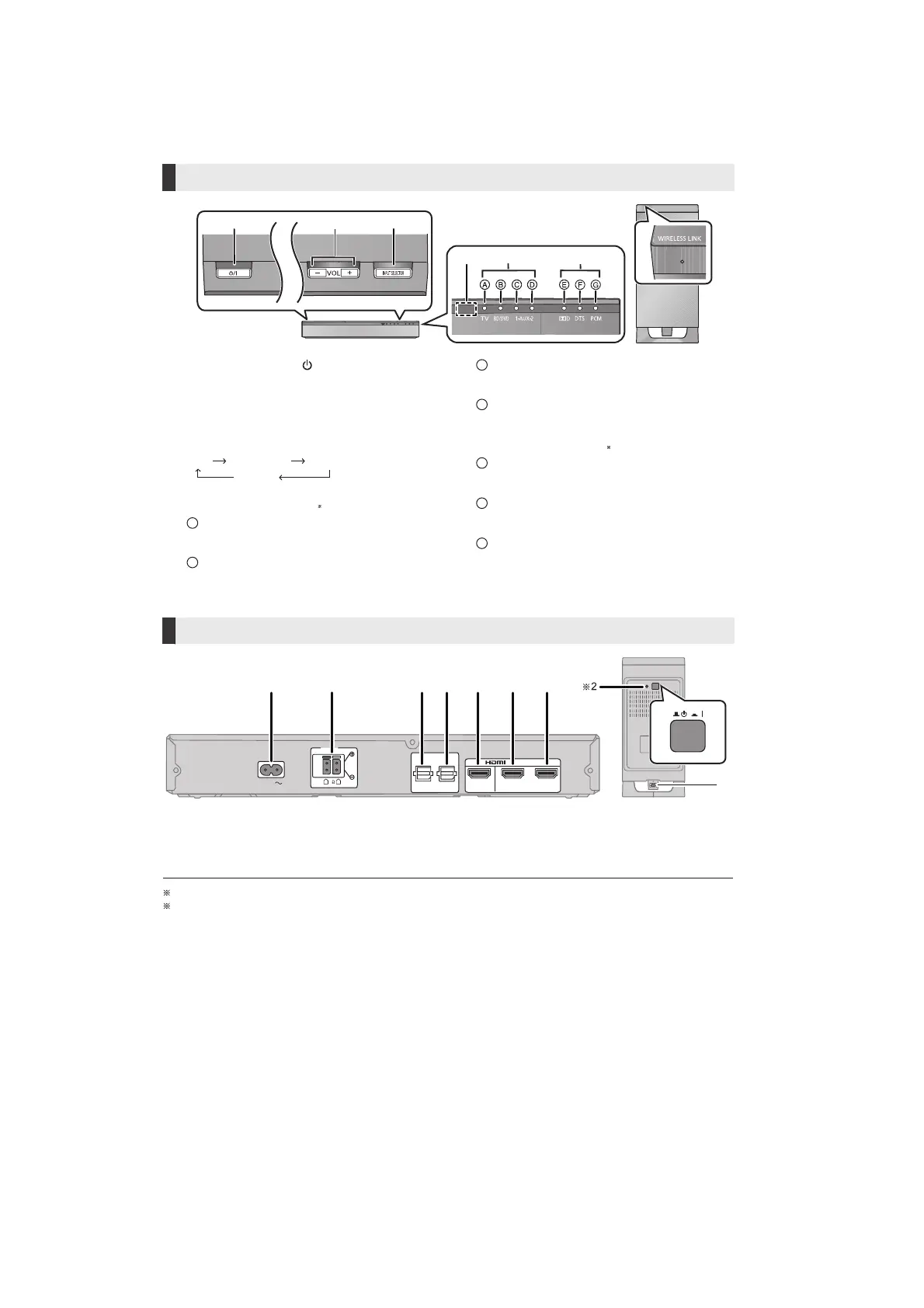

6.1. Main Unit Key Button Operations
1 Standby/on switch (
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Adjust the volume of the speakers
3 Select the input source
“TV” “BD/DVD” “AUX1”
“AUX2”
4 Remote control signal sensor
5 Input selector indicators
1
TV indicator
Lights green when the TV is the audio
source
BD/DVD indicator
Lights amber when the device connected
to the BD/DVD terminal is the audio
source
AUX1 indicator
Lights amber when the device connected
to the AUX1 terminal is the audio source
AUX2 indicator
Lights amber when the device connected
to the AUX2 terminal is the audio source
6 Audio format indicators
1
Dolby Digital indicator
Lights when Dolby Digital is the current
audio format
DTS indicator
Lights when DTS is the current audio
format
PCM indicator
Lights when PCM (2ch, Multi-channel) is
the current audio format
7 WIRELESS LINK indicator
1 AC IN terminal
2 Speaker terminals
3 TV terminal
4 AUX2 terminal
5 HDMI OUT terminal (ARC compatible)
6 BD/DVD terminal
7 AUX1 terminal
8 Active subwoofer on/off button
1 The indicators will also blink in various conditions (Refer to 6.2 Indicator illumination)
2 The I/D SET button is only used when the main unit is not paired with the active subwoofer
Main unit and active subwoofer (Front)
