Panasonic SC-MAX370 - Making Connections; Connecting Speakers; Connecting Antennas; Connecting Power

5
VQT5F34
ENGLISH

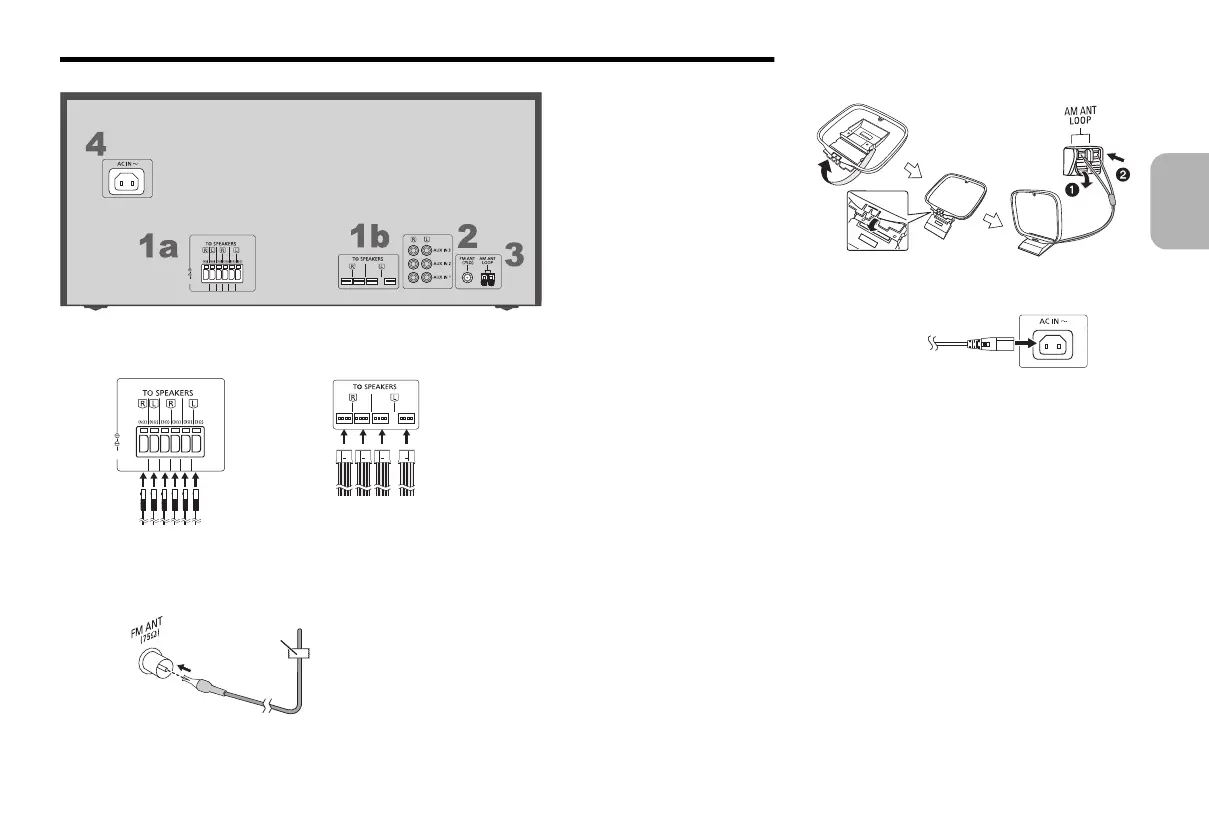

Making the connections
Connect the AC mains lead only after all the other connections have been made.
1 Connect the speakers.
Connect the speaker cables to the terminals of the same colour.
2 Connect the FM indoor antenna.
Put the antenna where reception is best.
SUB
WOOFER
SB-
MAW
370
SB-
MAW
370
SB-
MAY
370
SB-
MAF
370
SB-
MAY
370
SB-
MAF
370
SUB
WOOFER
SUB
WOOFER FRONT FRONT
SUB
WOOFER
SB-
MAY370
SB-
MAW370
SB-
MAW370
SB-
MAY370
SB-
MAY370
SB-
MAW370
SB-
MAW370
SB-
MAY370
1a
1b
SUB
WOOFER
SB-
MAW
370
SB-
MAW
370
SB-
MAY
370
SB-
MAF
370
SB-
MAY
370
SB-
MAF
370
SUB
WOOFER
SUB
WOOFER FRONT FRONT
SUB
WOOFER
Tap e
(not supplied)
3 Connect the AM loop antenna.
Stand the antenna up on its base until it clicks.
4 Connect the AC mains lead.
Do not use AC mains lead with other equipment.
Conserving power
The system consumes approximately 0.3 W when it
is in standby mode. Disconnect the power supply if
you do not use the system.
Some settings will be lost after you disconnect the
system. You have to set them again.
To household
mains socket
5
