RQT6683
7
Before use
Connections

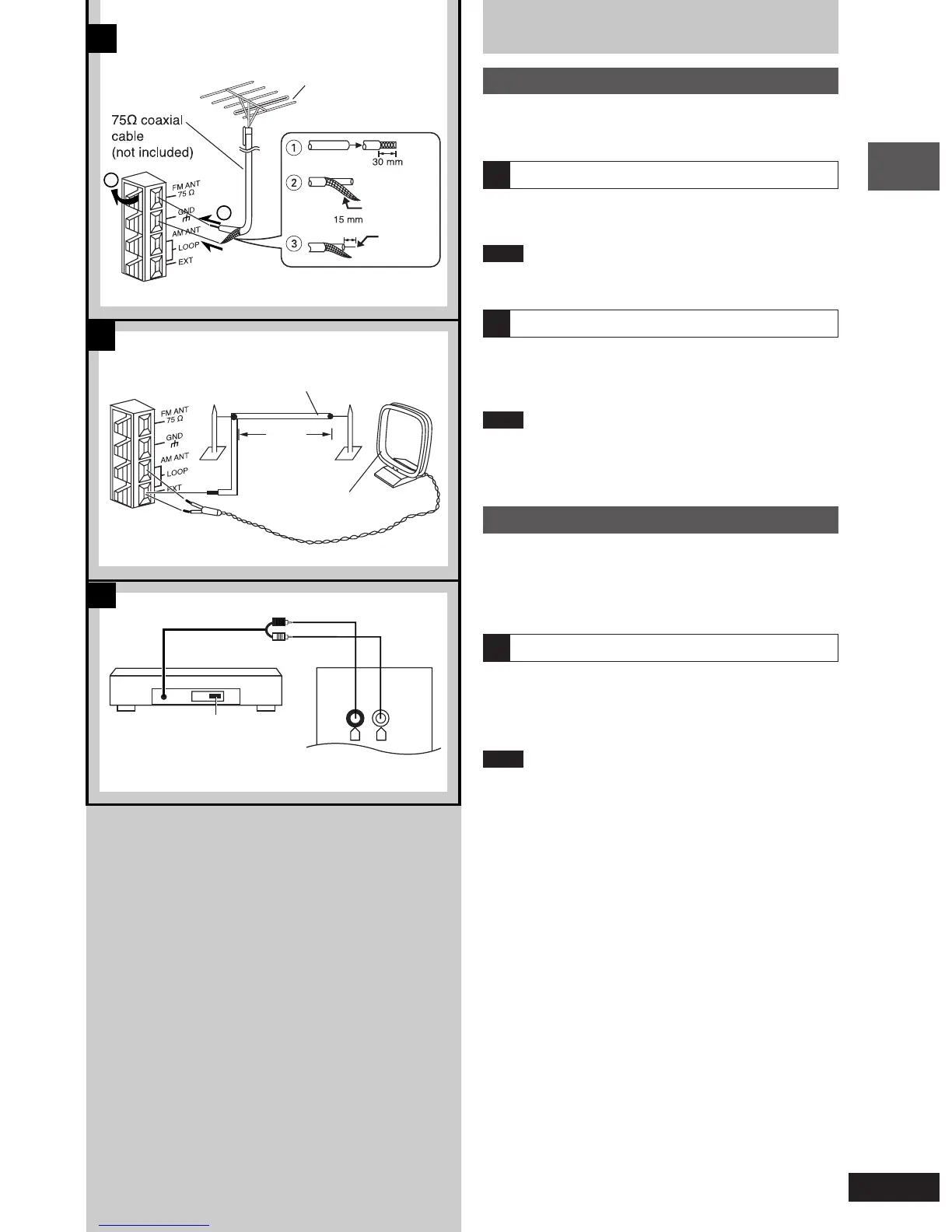

Optional antenna connections
You may need an outdoor antenna if you use this system in
a mountainous region or inside a reinforced-concrete
building, etc.
FM outdoor antenna
Disconnect the FM indoor antenna if an FM outdoor
antenna is installed.
Note
An outdoor antenna should be installed by a qualified
technician only.
AM outdoor antenna
Connect the outdoor antenna without removing the AM loop
antenna. Run 5 to 12 m of vinyl-covered wire horizontally
along a window or other convenient location.
Note
When the unit is not in use, disconnect the outdoor antenna
to prevent possible damage that may be caused by
lightning. Never use an outdoor antenna during an electrical
storm.
External unit connections
• Make sure that the power supply for all components has
been turned off before making any connections.
• For details, refer to the operating instructions of the unit
which is to be connected.
• All peripheral components and cables sold separately.
Connecting analog equipment
This example shows how to connect an analog player with a
PHONO OUT/LINE OUT switch.
When units other than those described are to be connected,
please consult your audio dealer.
Note
• Only an analog player with a built-in phono equalizer can
be connected.
• Set the switch to the “LINE OUT” position at the back of
the analog player.
A
B
C
A
B
C
AUX
(L)
(R)
AM outdoor antenna
(not included)
AM loop antenna
(included)
Shield braid
Core wire
FM outdoor antenna
(not included)
5-12 m
(16-40 ft)
Analog player (not included)
"LINE OUT"
position
Rear panel of this unit
L
R
1
2
(1
3
/
16
"
)
(
19
/
32
"
)
RQT6683(2-10)new.P65 3/24/05, 1:44 PM7
