RQT6683
8
Before use

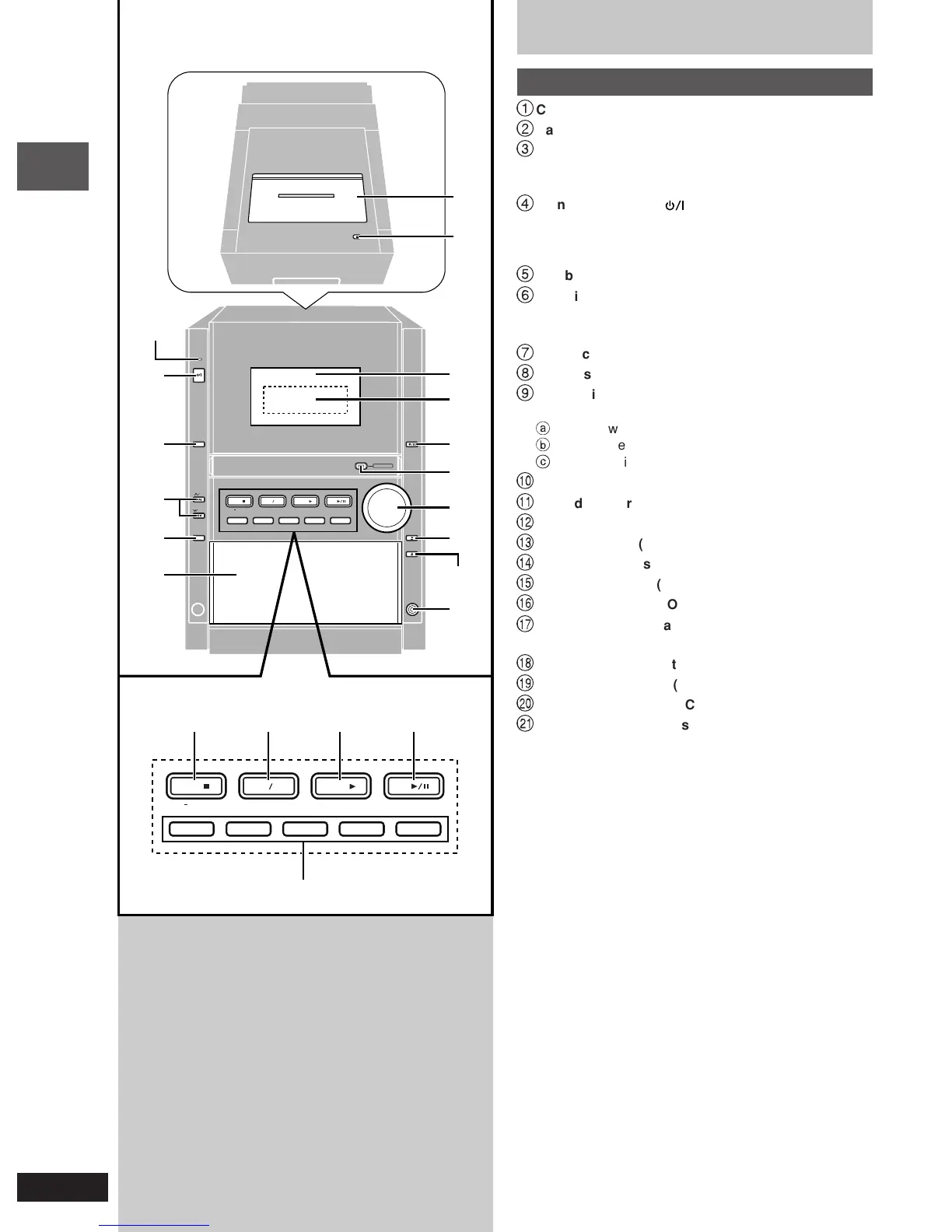

Front panel controls
Main unit
1
Cassette lid
2
Cassette open button (c OPEN) ............................ 17
3
AC supply indicator (AC IN)
This indicator lights when the unit is connected to the AC
mains supply.
4
Standby/on switch (
POWER)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a
small amount of power.
5
Aux button (AUX) ..................................................... 20
6
CD skip/search, tape fast-forward/rewind/TPS, tune/
preset channel select, time adjust buttons
(f
33
33
3 /FF, g
44
44
4/REW ) ................ 10, 11, 12, 17, 22
7
CD check button (CD CHECK) ................................ 13
8
CD trays
9
Tape indicator
This indicator changes in the following manner:
a
Orange (when no cassette is inserted.)
b
Green (when cassette is inserted.)
c
Red (when in recording mode.)
Ä
Display
Å
Recording start/pause button ([/ J REC) .............. 19
Ç
Super sound EQ button (S.SOUND EQ) ................. 20
É
Volume control (VOLUME DOWN, UP) ....... 10, 12, 17
Ñ
CD tray open/close button (c OPEN/CLOSE) ....... 12
Ö
CD change button (c CD CHANGE) ....................... 13
Ü
Headphone jack (PHONES) ..................................... 20
á
Stop/program clear and demonstration button
(STOP L, –DEMO) ............................ 12, 16, 17, 19, 21
à
Tuner/band select button (TUNER/BAND) ............. 10
â
Cassette play button (TAPE 2 ) .............................. 17
ä
CD play/pause button (CD 2/ J ) ............................. 12
ã
Disc direct play buttons (CD 1~CD 5) .................... 12
PHONES
REW
FF
OPEN/CLOSE
CD CHANGE
CD CHECK
DEMO
DOWN
VOLUME
UP
AUX REC
POWER
AC IN
S.SOUND EQ
CD 1 CD 2 CD 3 CD 4 CD 5
STOP
TUNER BAND
CD
TAP E
DEMO
CD 1 CD 2 CD 3 CD 4 CD 5
STOP
TUNER BAND
CD
TAPE
)~+,
-
3
4
5
6
7
9
1
2
!
"
#
$
%
&
(
OPEN
8
RQT6683(2-10)new.P65 1/13/03, 4:19 PM8
