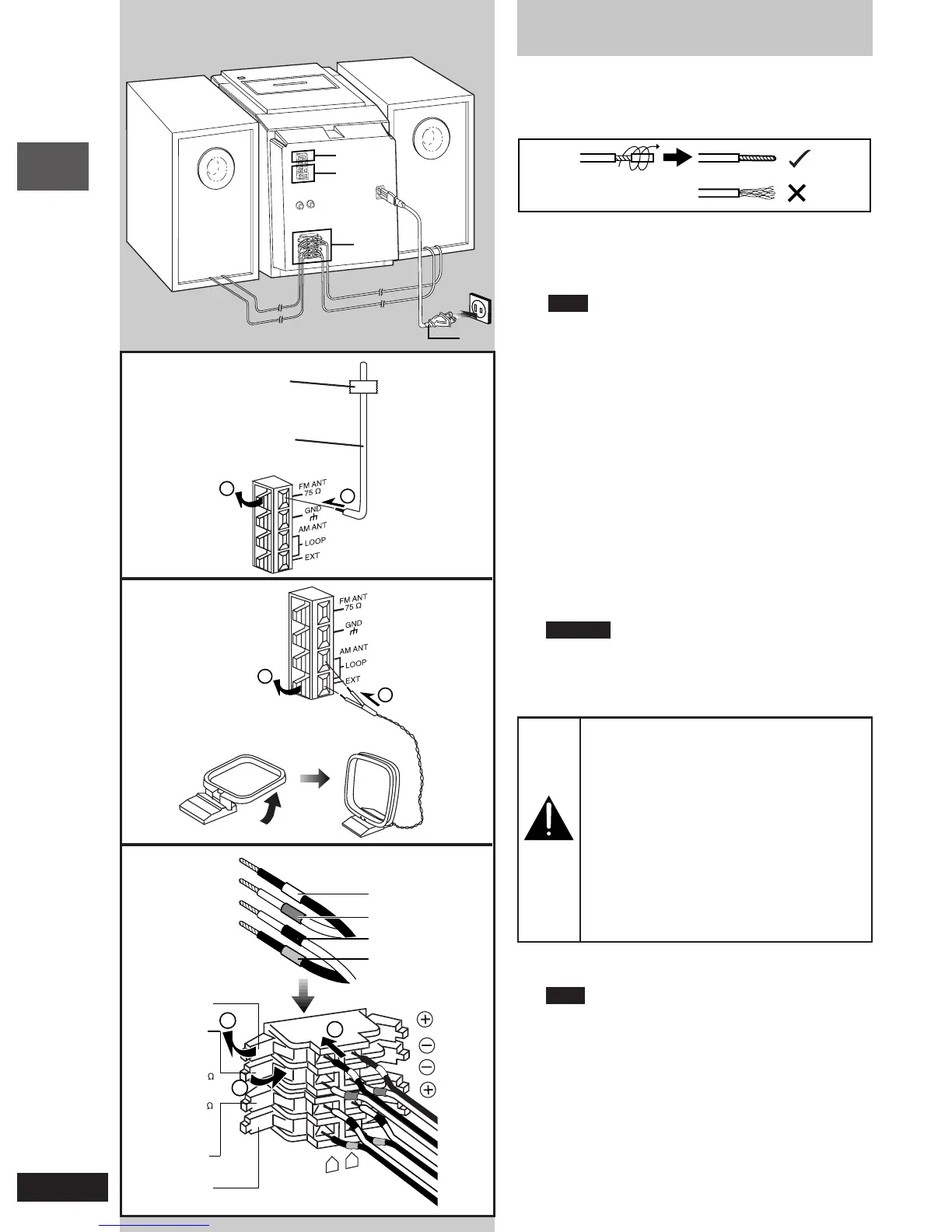

Before use
Connections
• Plug the AC power supply cord into a household AC outlet
only after all other connections have been made.
• To prepare the AM loop antenna wire and speaker cords,
twist the vinyl cover tip and pull off.
1 Connect the FM indoor antenna.
Tape the antenna to a wall or column, in a position
where radio signals are received with the least amount
of interference.
Note
For the best reception:
An FM outdoor antenna is recommended. (\ page 7)
2 Connect the AM loop antenna.
Stand the antenna up on its base. Keep loose antenna
cord away from other wires and cords.
3 Connect the speaker cords.
A Confirm the colors of the tags on the ends of the
cords.
B For White tags:
Connect cords to gray terminals.
For Blue, Black and Red tags:
Connect cords so tag colors match the terminal
colors.
Cords with white and blue tags are for high frequency.
Cords with red and black tags are for low frequency.
Incorrect connection can damage the unit.
Caution
Use only the supplied speakers.
The combination of the main unit and speakers provide
the best sound. Using other speakers can damage the
unit and sound quality will be negatively affected.
4 Connect the AC power supply cord.
Note
The included AC power supply cord is for use with this
unit only. Do not use it with other equipment.
