Power supply connection
Speaker connections
Speaker connections
2
,




Black
Black (–)
Red (+)
Red
Subwoofer
Front speaker left (L)
Front speaker right (R)

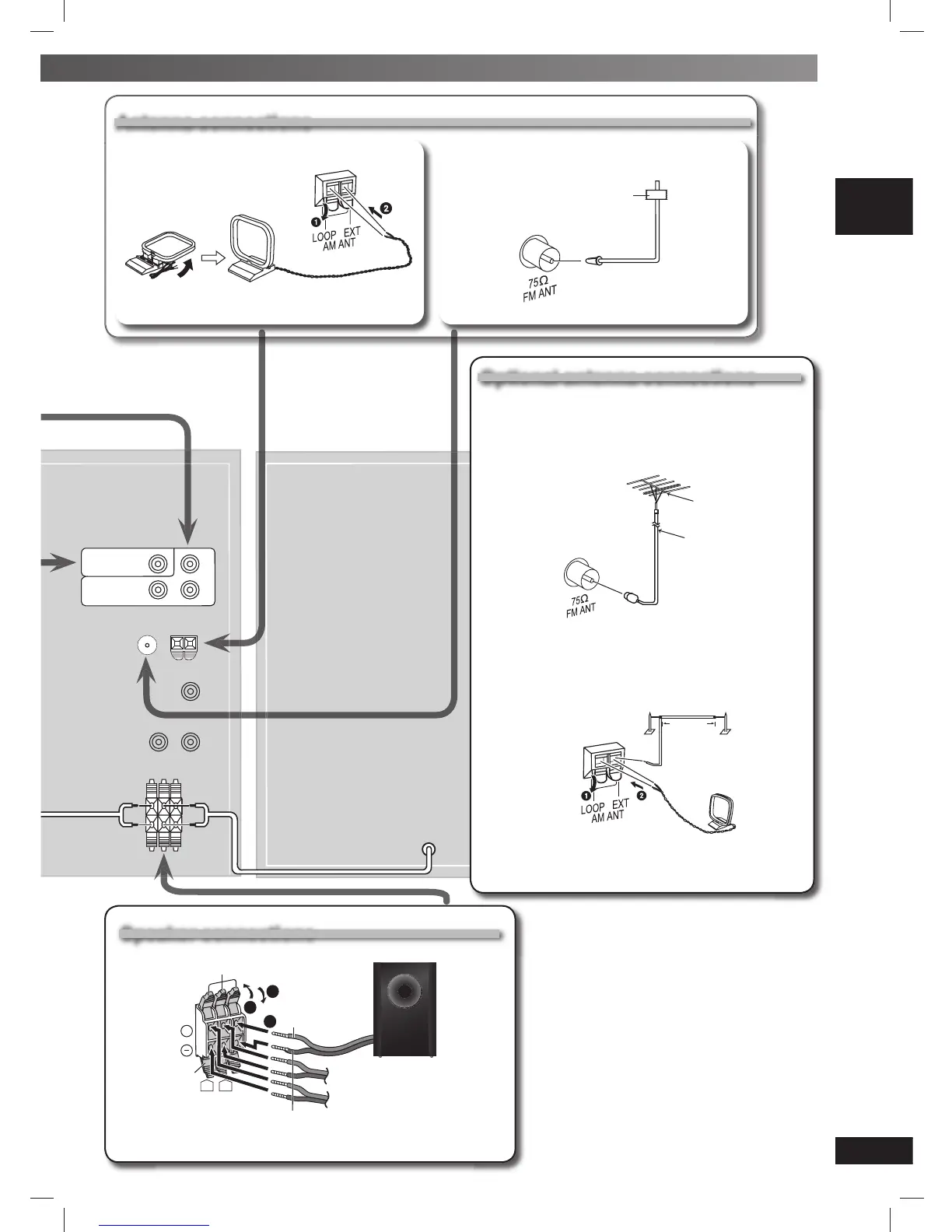

Connect the left (L), right (R) and subwoofer speakers as illustrated in the
picture shown above.
Optional antenna connections
Optional antenna connections
Use outdoor antenna if radio reception is poor.
Note:
Disconnect the outdoor antenna when the unit is not in use.
Do not use the outdoor antenna during a lightning storm.
FM outdoor antenna
(
)
FM outdoor antenna
(not included)
75Ω coaxial cable
(not included)
Rear panel of
this unit
• Disconnect the FM indoor antenna.
• The antenna should be installed by a competent
technician.
AM outdoor antenna
Rear panel of
this unit
AM outdoor antenna (not included)
5-12 m
AM loop antenna
(included)
• Run a piece of vinyl wire horizontally across a window
or other convenient location.
• Leave the loop antenna connected.
Antenna connections
Antenna connections
■ AM loop antenna
Stand the antenna
up on its base.
■ FM indoor antenna
Tape the antenna where reception is best.
(
)
Adhesive
tape
