Panasonic SC-VK72D - Control Reference and Basic Disc Playback; Control reference guide

Control reference guide
RQT8169
10

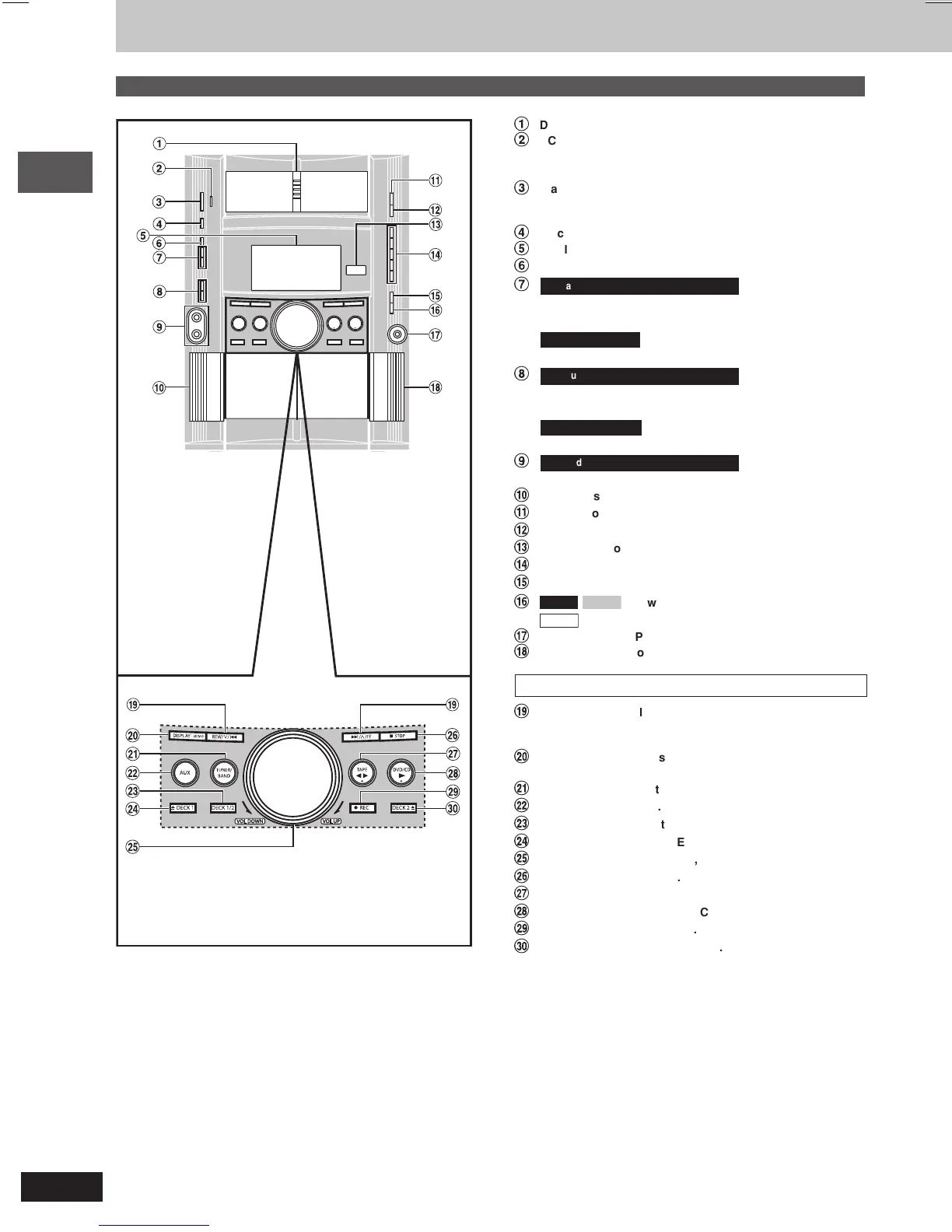

1 Disc drawer
2 AC supply indicator [AC IN]
This indicator lights when the unit is connected to the AC mains
supply.
3 Standby/on switch [
ff
ff
f/I]
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of power.
4 Disc check button [DISC CHECK] ....................................... 12
5 Display
6 Multi Re-master button [MULTI RE-MASTER] .................... 27
7 For Saudi Arabia, Kuwait and Southeast Asia
Super surround button [SUPER SURROUND] ................... 26
Sound EQ button [SOUND EQ] ............................................ 26
For Australia and N.Z.
Super surround button [SUPER SURROUND] ................... 26
8 For Saudi Arabia, Kuwait and Southeast Asia
Microphone volume level buttons
[MIC LEVEL DOWN, UP] .......................................................24
For Australia and N.Z.
Sound EQ button [SOUND EQ] ............................................ 26
9 For Saudi Arabia, Kuwait and Southeast Asia
Microphone jacks [MIC 1, 2] ................................................ 24
Ä Deck 1 cassette holder .........................................................23
Å Disc tray open/close button [c, OPEN/CLOSE] ................. 12
Ç Disc change button [c, DISC CHANGE] ............................ 12
É Remote control signal sensor
Ñ DVD/CD direct play buttons [1–5] .......................................12
Ö Super sound EQ button [SUPER SOUND EQ] ................... 27
Ü
VK92D VK82D
Subwoofer button [SUBWOOFER] ........... 27
VK72D
Super woofer button [S.WOOFER] ........................ 27
á Headphone jack [PHONES] .................................................. 29
à Deck 2 cassette holder ......................................................... 23
Main unit
Center console
â Disc skip/search/slow-motion play, tape fast-forward/
rewind, tune, time adjust buttons
[REW/
44
44
4/g, f/
33
33
3/FF] ......................................... 12, 22, 23
ä Display mode, demonstration button
[DISPLAY –DEMO] ........................................................... 9, 29
ã Tuner/band select button [TUNER/BAND] .......................... 22
å AUX button [AUX] ................................................................ 30
ç Deck 1/2 selection button [DECK 1/2] .................................23
é Deck 1 open button [c DECK 1] ........................................ 23
è Volume control [VOL DOWN, VOL UP] .............................. 25
ê Stop button [L STOP]........................................................... 12
ë Tape play/direction button [; :, TAPE]............................. 23
í DVD/CD play button [:, DVD/CD] ......................................... 9
ì Record button [a REC] ....................................................... 23
î Deck 2 open button [DECK 2 c] ........................................ 23
